Prodg Systems Cma-12bt 2-way Active Speaker User Manual

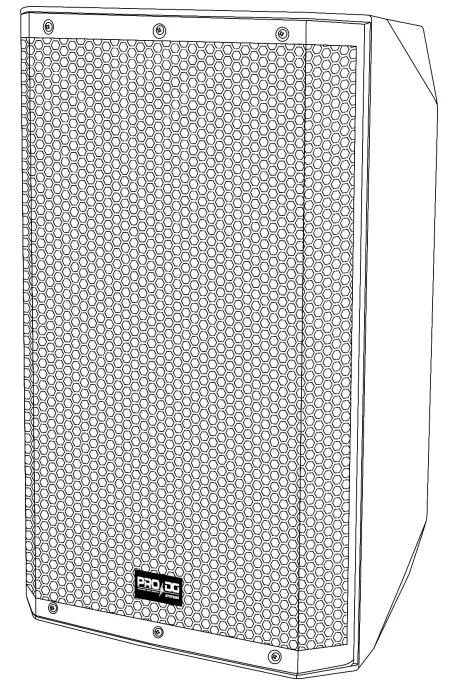

CMA-12BT 2-Way Active Speaker
User Manual

CMA-12BT
CMA – 15BT
WWW.PRODGSYSTEMS.COM

Precautions

Please read, keep, and follow all safety and use instructions.
Important Safety Instructions.

1. Heed all warnings.
2. Do not overload the box to avoid damage to the speakers.
3. Do not use this product near water. If the box is used outdoors, make sure that no humidity can enter the box.
4. Clean only with a dry cloth.
5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves or similar (including amplifiers).
7. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wider blade or third prong is provided for your safety. If the provided plug does not fit in your outlet, consult an electrician for replacement of the obsolete outlet.
8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where it exits from this product.
9. Only use attachments/accessories specified by the manufacturer.
10. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the product. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.
11. Unplug this product during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified personnel. Servicing is required when the product has been damaged in any way such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS:

	This symbol on the product means there is uninsulated, dangerous voltage within the product enclosure that may present a risk of electrical shock.
	This symbol on the product means there are important operating and maintenance instructions in this guide.
	This product contains magnetic material. Consult your doctor on whether this might affect your implantable medical device.
	Contains small parts which may be a choking hazard. Not suitable for children under age 3.

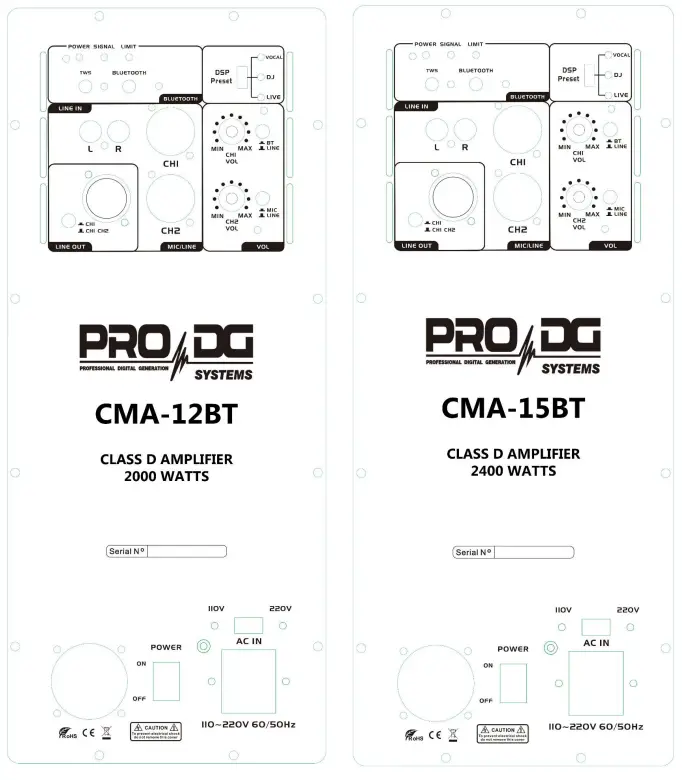

System Setup Connections and Controls

1. Indicator Light: Power / Signal / Limit.
2. TWS Button: Press once to enter True Wireless Stereo Bluetooth mode.
3. Bluetooth Button: Press once to connect a Bluetooth device or disconnect a paired Bluetooth device.
4. DSP Preset: There are three preset mode: Vocal / DJ / Live.
5. Jack L/R Input: Balanced L/R jack input for getting signals from mixers or preamplifiers.
6. XLR CH1/CH2 Input: Balanced XLR input for getting signals from mixers or preamplifiers.
7. XLR CH1/CH2 Output: Balanced XLR connectors connected in parallel to the inputs to connect another device (e.g. another active speaker system).
8. Line Select Button: Press down for CH1 line output, press up for CH1/CH2 line output.
9. CH1/CH2 VOL: CH1/CH2 Volume Control.
10. BT/LINE Select Button: Press down for Bluetooth mode, press up for line mode.
11. Power Switch: Turns unit on or off.
12. Power Supply Voltage Switch: Select between 110V or 220V AC mains power.
13. AC Input: Please Use AC input cable from the original manufacturer only.
