Amewi 28367 Electronic Quick Coupler Instruction Manual

AMEWi 28367 Electronic Quick Coupler Instruction Manual

Thank you for purchasing the electronic quick coupler from Amewi Trade e.K.
We hope you enjoy it. This quick coupler is suitable for the following excavator models: 22307, 22308, 22309, 22344, 22403, 22415, 22501

Installing

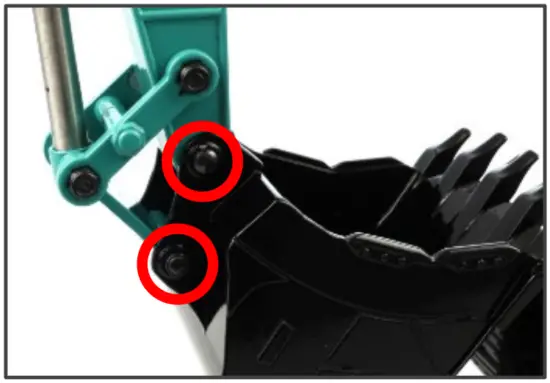

1. Loosen the two screws on the bucket.

2. Pull off the bucket.

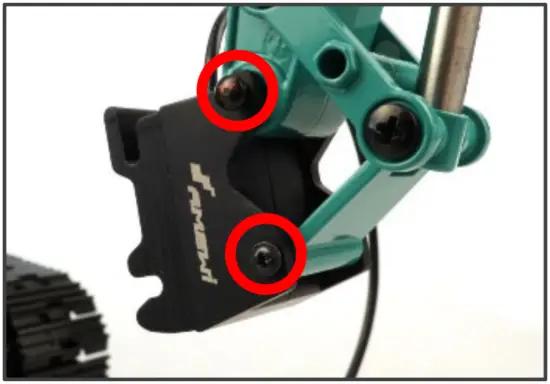

3. Attach the quick coupler with the screws as shown.

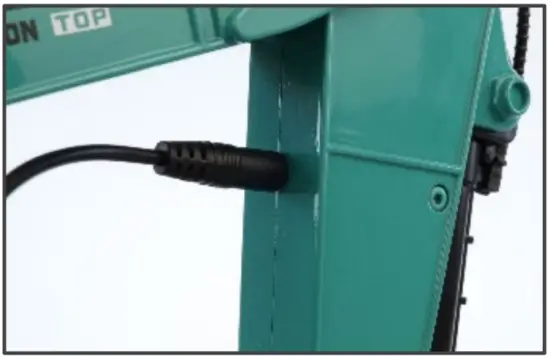

4. Connect the 3.5mm jack plug to the socket on the boom.

5. Now you can start the quick change.
