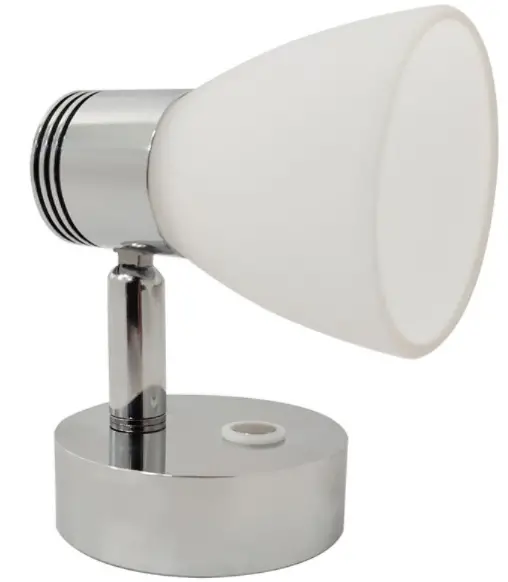

relaxn 709910 12V LED Reading Light USB Outlet Chrome

FEATURES

- Adjustable lighting direction 350’swivel and 90 vertical tilt.
- Touch switch – dimmable.
- Dimmer memory – last dimmable setting remains.
- Night Light (blue LED night light) – used as auxiliary or decorative lighting and as a switch backlight.
- USB charge port 5V/ 2A.
- Surface mount – mounting screws included.
SPECIFICATIONS

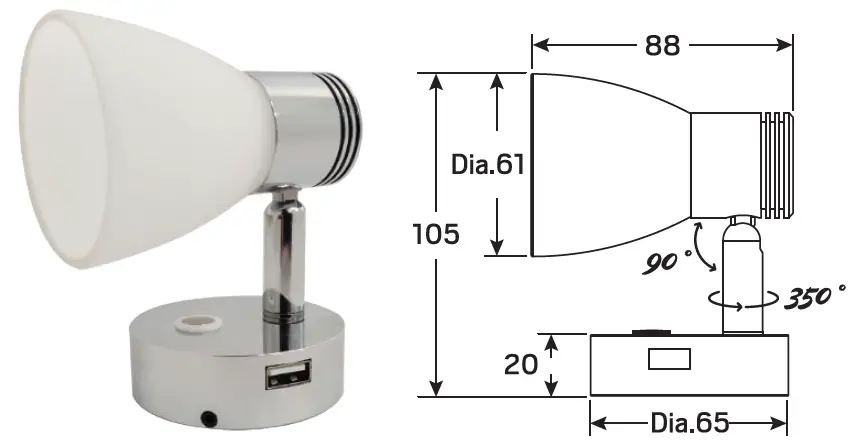

| Volts: | 10-30V | Dimensions (mm): | Base Dia. 65 x H 20 Height l 05 |
| Watts: | 3W | Charger Socket: | Output 5V / 2A |
| Light Output: | 300LM | Wire Length: | 125mm Tinned |
| LED Chip Type: | l x Bridgelux LEDs | Material: | Chrome I Aluminum/ Iron (USB Port)/ Glass (Head) |
| LED Color: | Warm White (Reading Mode) | * USB Port – Keep dry. | |
| IP Rating: | IP44 | Lighting Direction: | 350° Swivel/ 90° Vertical Tilt |
| Dimming: | Dimmable (Touch Switch) | Certificates: | CE, Rohs and IS0900l:2015 |
TOUCH SWITCH FUNCTION
NIGHT MODE (ON) / READING MODE (DIM) / OFF
- First Touch: activates blue night light.
- Second Touch: activates the reading light, night light remains on.
- Hold to dim the reading light (dimming setting is remembered).
- Third touch – switches both reading and night light off.

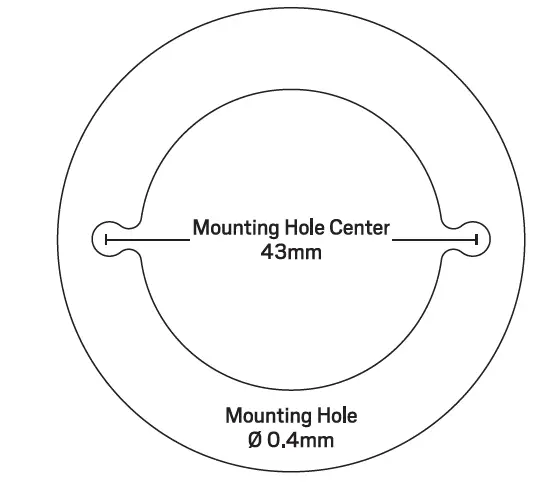

MOUNTING TEMPLATE

Using 1:1 mounting template or “O” ring bracket to mark the location on a surface where you want to mount the light.

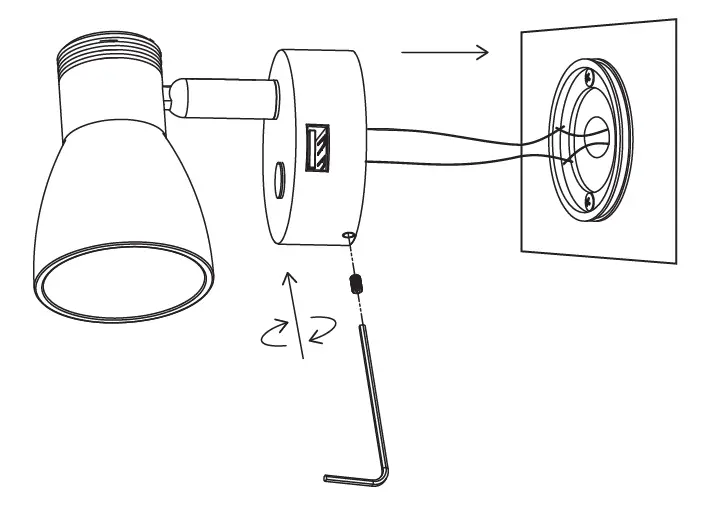

INSTALLATION

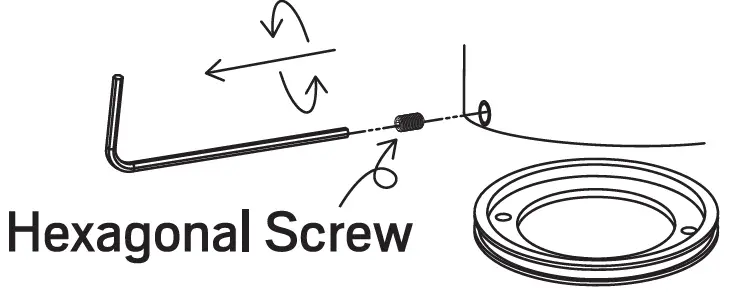

- Detach bracket from ight base with Allen key.

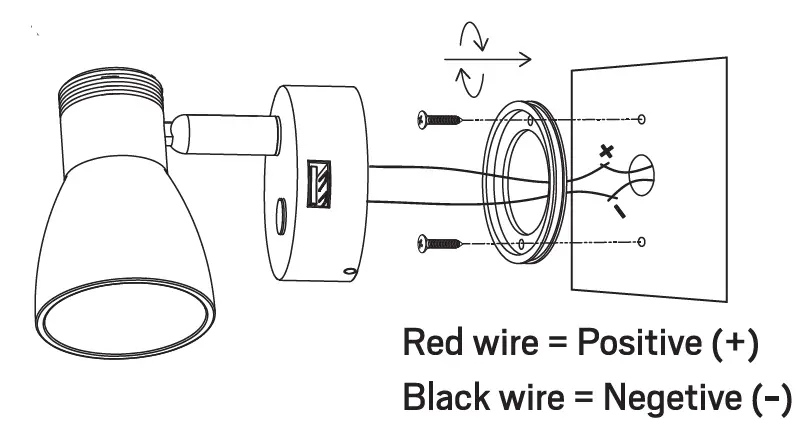

- Mount the bracket to the surface with screws. Connect the wire.

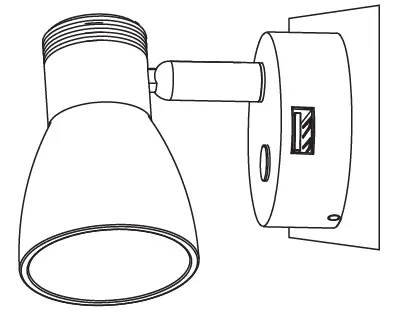

- Screw the light base on the bracket with a Allen key.

- Turn on the electricity, ready to work.
