relaxn 709907 LED Bullet Reading Light Instruction

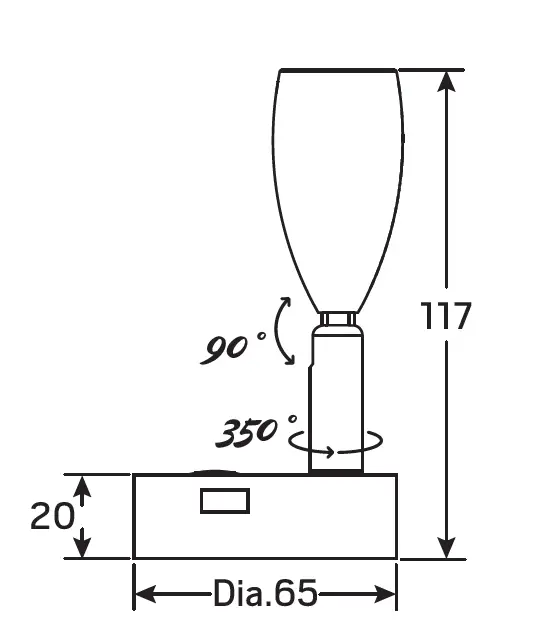

DIMENSION
FEATURES
- Adjustable lighting direction 350°swivel and 90° vertical tilt.
- Touch switch – dimmable.
- Dimmer memory – last dimmable setting remains.
- Night Light (blue LED night light) – used as auxiliary or decorative lighting and as a switch backlight.
- USB charge port 5V / 2A.
- Surface mount – mounting screws included.
SPECIFICATIONS
| Volts: | 10-30V | Dimensions (mm): | Base Dia. 65 x H 20 Height 117 |
| Watts: | 3W | Charger Socket: | Output 5V / 2A |
| Light Output: | 650LM | Wire Length: | 125mm Tinned |
| LED Chip Type: | 1 x Bridgelux LEDs | Material: | Matte Black / Aluminium / Iron (USB Port) |
| LED Colour: | Warm White (Reading Mode) | * USB Port – Keep dry. | |
| IP Rating: | IP44 | Lighting Direction: | 350° Swivel / 90° Vertical Tilt |
| Dimming: | Dimmable (Touch Switch) | Certificates: | CE, Rohs and ISO9001:2015 |
TOUCH SWITCH FUNCTION
NIGHT MODE (ON) / READING MODE (DIM) / OFF
- First Touch: activates blue night light.
- Second Touch: activates the reading light, night light remains on.
- Hold to dim the reading light (dimming setting is remembered).
- Third touch – switches both reading and night light o

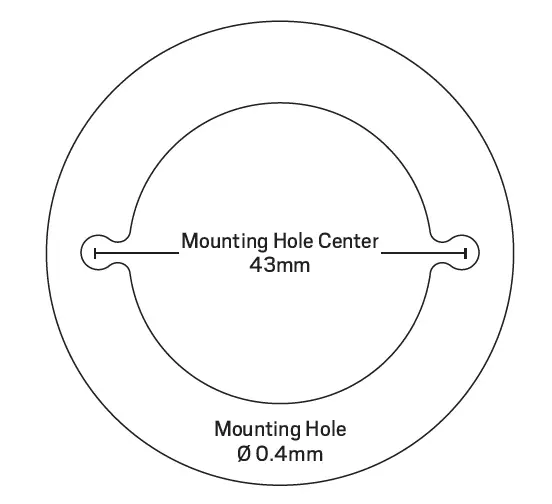

MOUNTING TEMPLATE
Using 1:1 mounting template or “O” ring bracket to mark the location on a surface where you want to mount the light.
INSTALLATION

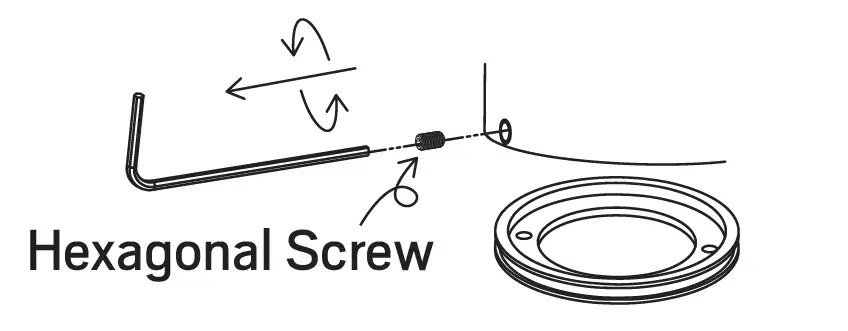

- Detach bracket from light base with allen key.

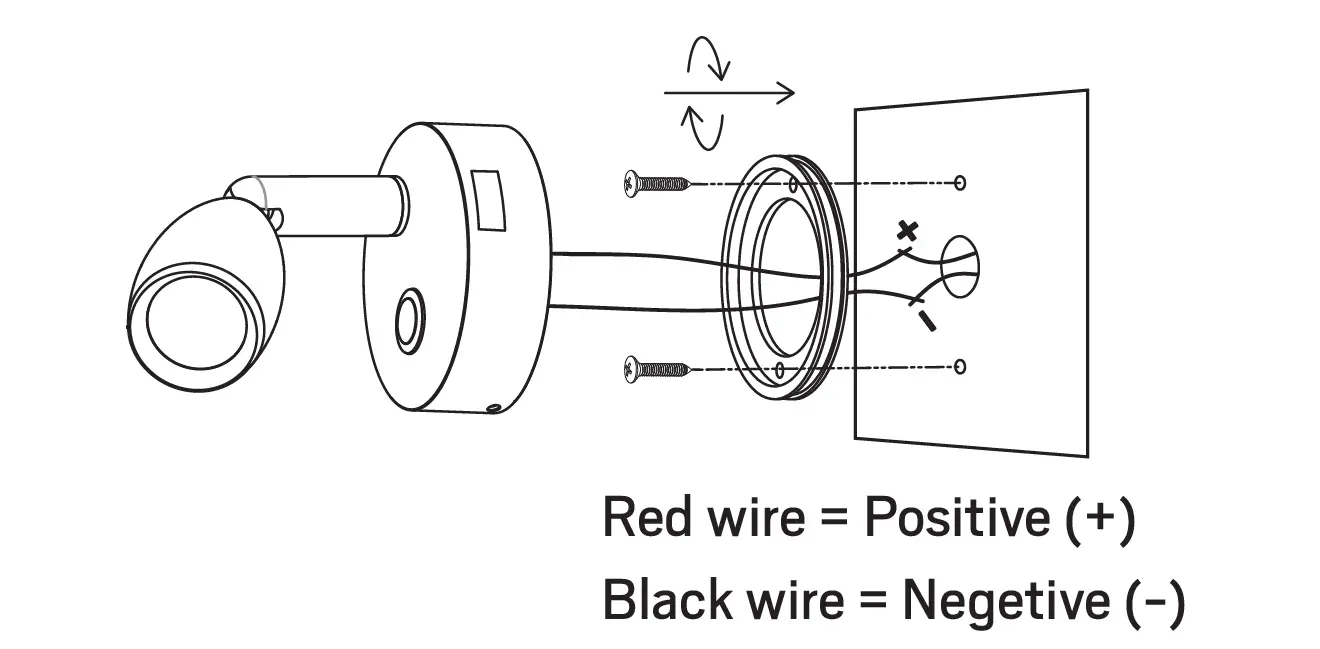

- Mount the bracket to the surface with screws. Connect the wire.

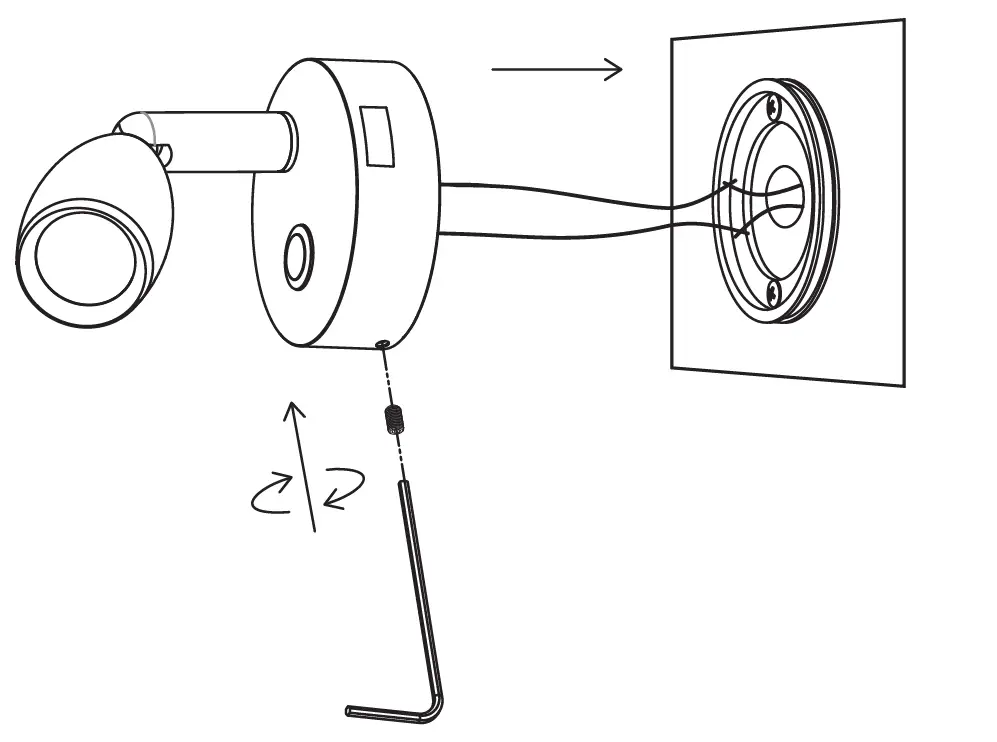

- Screw the light base on the bracket with a allen key.

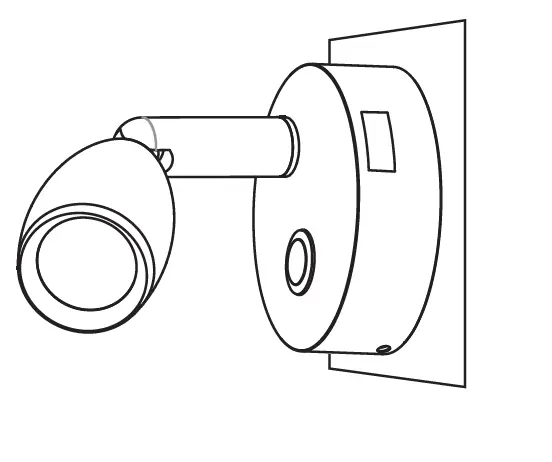

- Turn on the electricity, ready to work.
