Jandy Pro Series Two Port Space Saver Valve Instruction Manual
⚠ WARNING
FOR YOUR SAFETY – This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist. The maintainer must be a professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly. Before installing this product, read and follow all warning notices and instructions that accompany this product. Failure to follow warning notices and instructions may result in property damage, personal injury, or death. Improper installation and/or operation will void the warranty.
PLUMBING

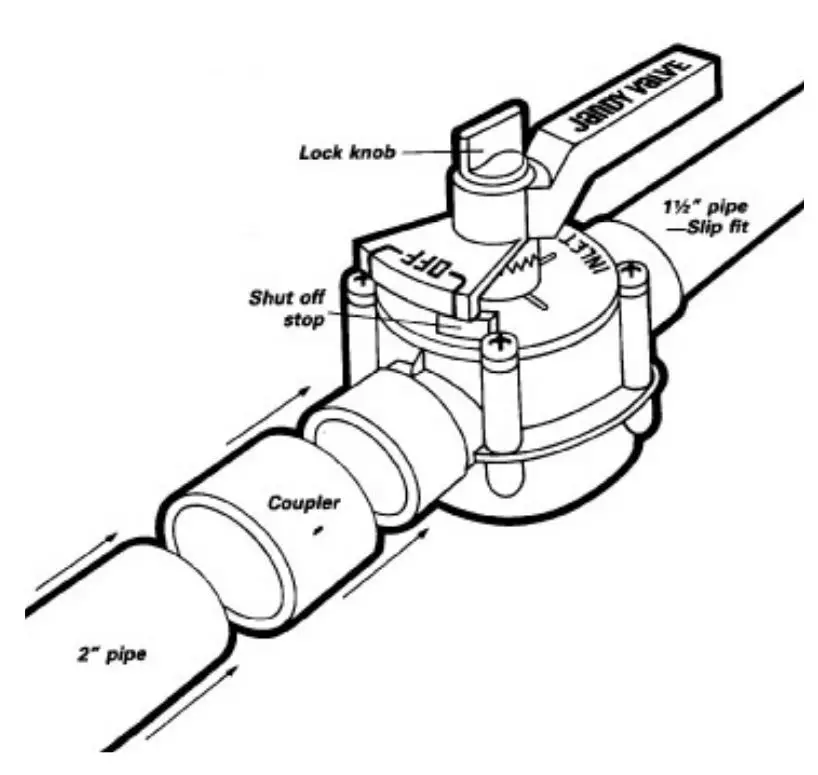

One valve is designed for both 1½” and 2″ pipe. 1½” pipe slip fits into valve ports. 2″ pipe is joined using 2½” pipe coupler. 45° or 90° fitting. See drawing.
Internal valve assembly must be removed prior to gluing the valve body to pipe fittings. Make certain no glue enters valve body beyond the ports. WELDON 724 CPVC GRAY IS RECOMMENDED.
VALVE HANDLE USE
NOTE Valve handle must not be removed during use. Otherwise warranty will be void.
Lock Knob – Loosen lock knob to turn handle. To secure handle, turn knob down finger tight. See drawing.
Off Indicator – OFF area on indicator represents exact position of internal valve diverter seal.
Handle Stops – Protruding pins located on valve cover will stop diverter in complete port shutoff position. Be sure the word “INLET” on valve cover is over the incoming flow port.

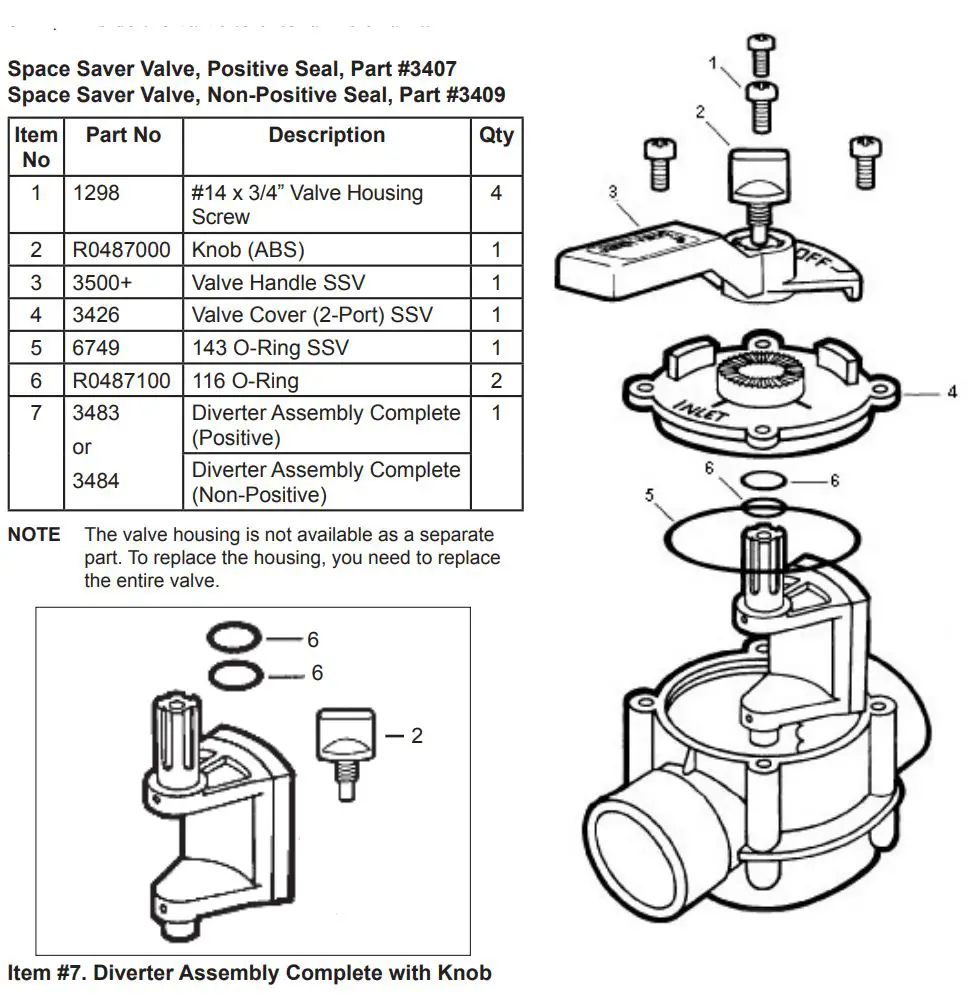

MAINTENANCE
At least twice a year, lubricate the square seal and O-rings inside the valve to extend life of unit.
Zodiac Pool Systems, Inc. 2620 Commerce Way, Vista, CA 92081 1.800.822.7933 | www.ZodiacPoolSystems.com
ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license. All trademarks referenced herein are the property of their respective owners.
©2012 Zodiac Pool Systems, Inc. 3422 Rev G 1205
