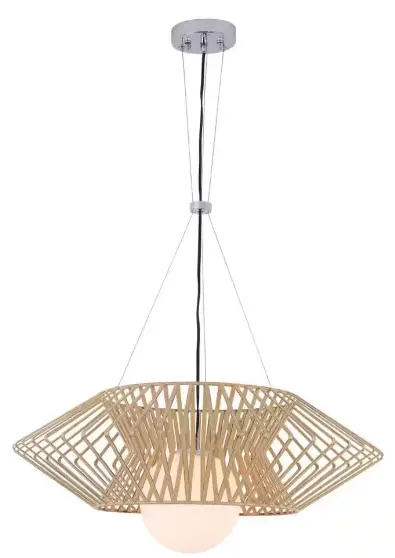

4MODERNHOME 19192-1WG 1-Light Wood Grain Basket Chandelier
Product Information
The product is a light fixture that requires assembly and installation. It comes with a mounting bracket, canopy, cover nut, wire rope, main wire, round metal fittings, lamp shade, glass ball, and a light bulb (not included). The light bulb must have a maximum wattage of 60W and be rated for 110-130V/60Hz. The fixture contains lead, a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. It is highly
recommended having an electrician install the fixture, and all glass components and lamps should be handled with care.
Usage Instructions

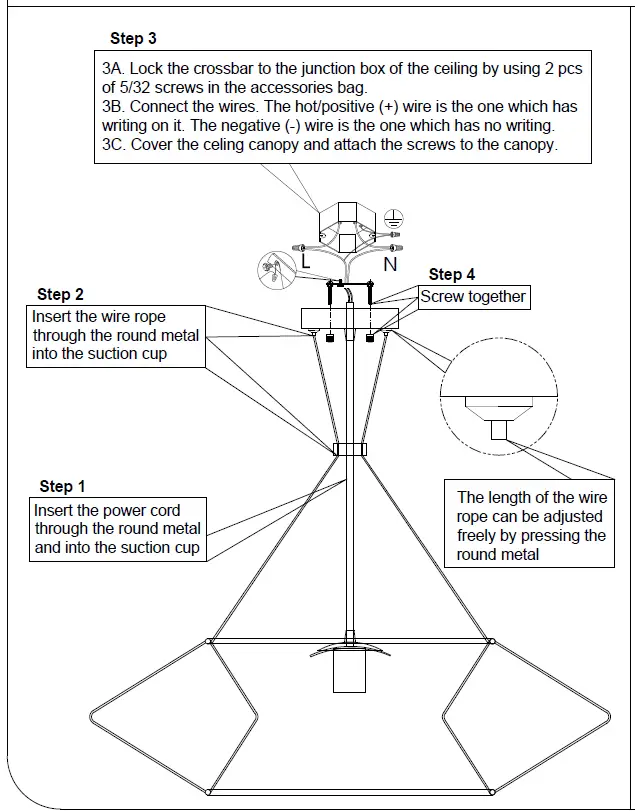

- Before beginning installation, turn off the power supply and keep it off until installation is completed.
- Insert the power cord through the round metal and into the suction cup.
- Lock the crossbar to the junction box of the ceiling using two 5/32 screws from the accessories bag.
- Screw together the wire rope and round metal fittings. The length of the wire rope can be adjusted by pressing the round metal.

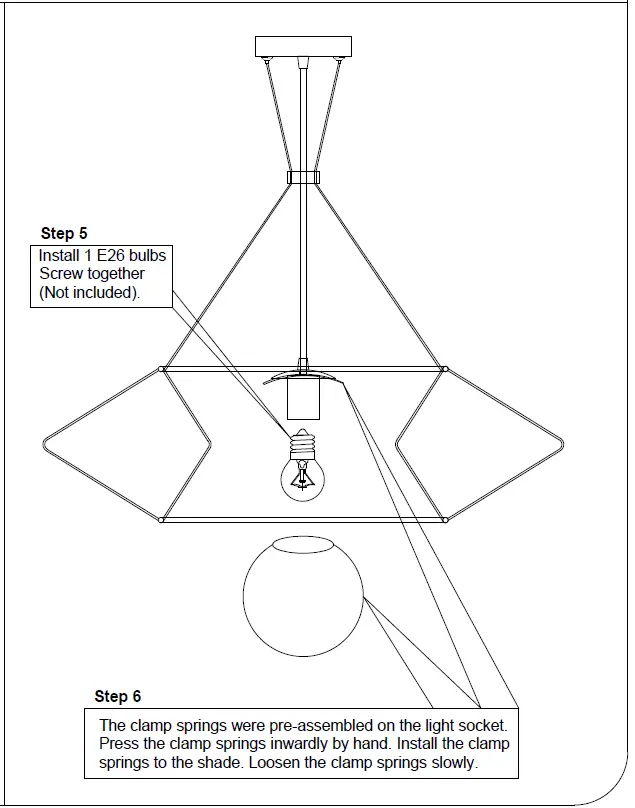

- Install one E26 bulb (not included) into the light socket.
- Press the clamp springs inwardly by hand and install them to the shade. Loosen the clamp springs slowly.
If any special control devices are used with this fixture, follow the instructions carefully to ensure full compliance with N.E.C. requirements. If there are any questions, contact a qualified electric contractor. After installation, wash your hands after handling the fixture due to the presence of lead.
Additionally, leaving a short product review on the platform where you purchased the product is encouraged to help future customers make their purchase decision.
WIRE CONNECTION DIAGRAM
Wires meeting safety standards are required to connect the electrical circuit.
CAUTION: Risk of fire
Please read all instructions carefully. Before you proceed to install, make sure that the power supply is turned off and remains off until installation is completed.

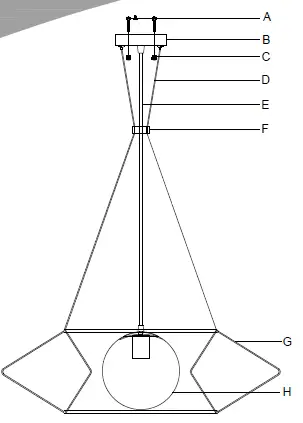

PARTS INCLUDED
| Code | Part Description | QTY |
| A | Mounting Bracket | 1 PCS |
| B | Canopy | 1 PCS |
| C | Cover Nut | 2 PCS |
| D | Wire Rope | 3 PCS |
| E | Main Wire | 1 PCS |
| F | Round Metal Fittings | 1 PCS |
| G | Lamp Shade | 1 PCS |
| H | Glass Ball | 1 PCS |
Assembly and Installation Steps
If you have any questions or problems, please send us an email to [email protected] or call us at 469-312-6428. We will do everything possible to make
you completely satisfied with your purchase. Product reviews help future customers to make their purchase decision. You are encouraged to share your experience by leaving a short product review on the platform where you bought this product.
