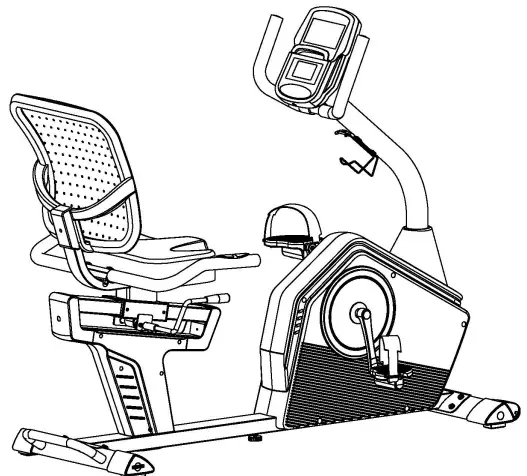

SUNNY SF-RB4850 Smart Recumbent Bike

SMART PROGRAMMABLE RECUMBENT BIKE SF-RB4850 SMART USER MANUAL

The Smart Programmable Recumbent Bike SF-RB4850 is a fitness equipment designed for adult use only. It is important to read the user manual before assembling and using the bike to ensure safety and effective use. The user manual provides important safety
information, pre-assembly checklist, hardware package, and assembly instructions.

IMPORTANT SAFETY INFORMATION

Before starting any exercise program, it is recommended to consult a physician to determine if there are any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Stop exercising
if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. Keep children and pets away from the equipment.

PRE-ASSEMBLY CHECK LIST

Before assembling the bike, make sure all parts are included. Refer to the list below:

HARDWARE PACKAGE

For ordering replacement parts, provide the following information: model number, product name, and part number found on the exploded diagram and parts list. Contact
[email protected] or 1-877-90SUNNY (877-907-8669) for assistance.

ASSEMBLY INSTRUCTIONS

Follow the steps below to assemble the bike:

1. Remove 2 Shipping Tubes (No. D), 8 Screws (No. 20), 8 Spring
   Washers (No. 12) and 8 Flat Washers (No. 11) from the Main Frame (No. 1) using Allen Wrench (No. 97).

IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).

WWW.SUNNYHEALTHFITNESS.COM

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

1. Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician’s advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions, you should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 4 feet (120 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during exercise, discontinue use of the equipment immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.

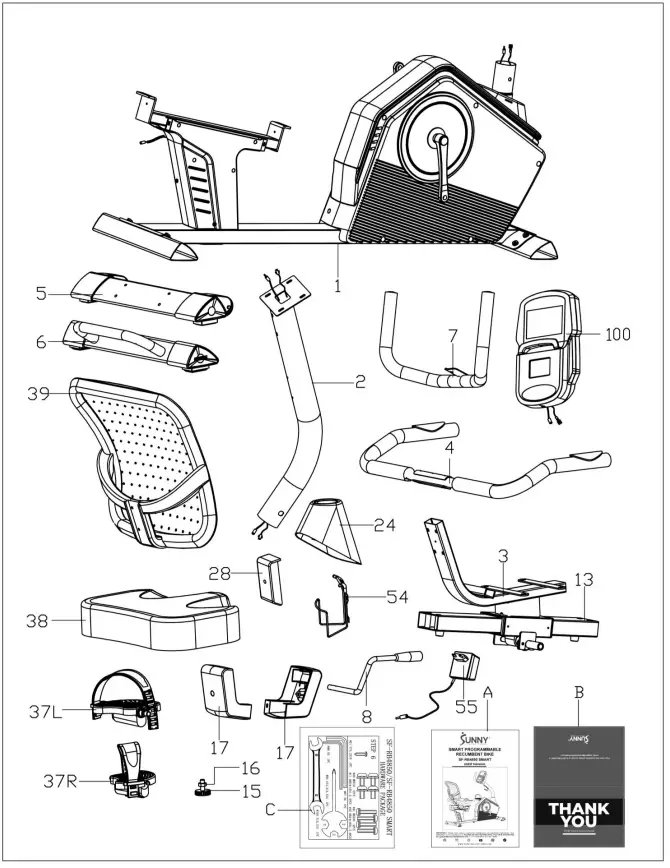

PRE-ASSEMBLY CHECKLIST

Before you start to assemble, please make sure all parts are included.

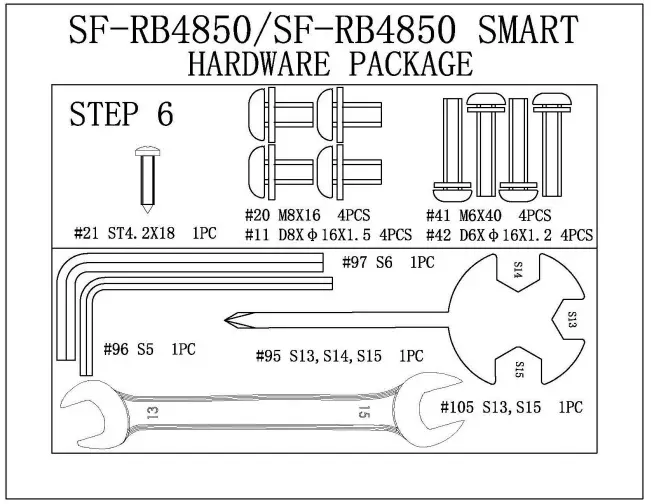

HARDWARE PACKAGE

Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part (s) needed:

• The model number (found on cover of manual)
• The product name (found on cover of manual)
• The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of the manual)

Please contact us at: [email protected] or 1 877 90SUNNY (877 907 8669).

ASSEMBLY INSTRUCTIONS

We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

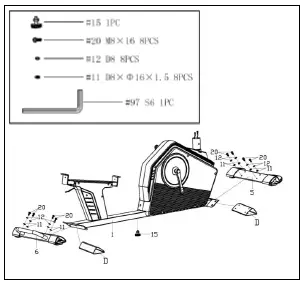

STEP 1:
Remove 2 Shipping Tubes (No. D), 8 Screws (No. 20), 8 Spring Washers (No. 12) and 8 Flat Washers (No. 11) from the Main Frame (No. 1) using Allen Wrench (No. 97).
NOTE: You may discard the Shipping Tubes (No. D) or save them to repackage the item in the future.
Attach the Front Stabilizer (No. 5) and Rear Stabilizer (No. 6) to the Main Frame (No. 1) with 8 Screws (No. 20), 8 Spring Washers (No. 12) and 8 Flat Washers (No. 11) that were just removed. Tighten and secure with the Allen Wrench (No. 97). Attach the Adjustable Pad (No. 15) to the Main Frame (No. 1).

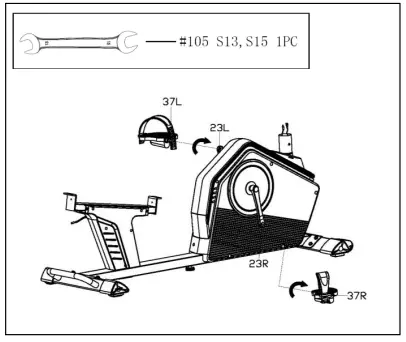

STEP 2:
Align the Left Pedal (No. 37L) with the Left Crank (No. 23L) at 90° and gently insert the pedal into the crank arm. Turn the Left Pedal (No. 37L) counter-clockwise as tightly as you can with your hands, then use Spanner (No. 105) to tighten securely.
Align the Right Pedal (No. 37R) with the Right Crank (No. 23R) at 90° and gently insert the pedal into the crank arm. Turn the Right Pedal (No. 37R) clockwise as tightly as you can with your hands, then use Spanner (No. 105) to tighten securely.
NOTE: Left Pedal (No. 37L) is marked with “L” on the pedal, while Right Pedal (No. 37R) is marked with “R” on the pedal. Attaching the Pedals (No. 37L/R) to the Cranks (No. 23L/R) or turning them with the wrong direction will damage the Cranks (No. 23L/R).

STEP 3:
Remove 4 Screws (No. 20), 4 Spring Washers (No. 12) and 4 Arc Washers (No. 22) from the Main Frame (No. 1) using Allen Wrench (No. 97).
Insert the Handlebar Post (No. 2) into the Upright Tube Cover (No. 24) and move the Upright Tube Cover (No. 24) higher.
Connect the Sensor Extension Wire 1 (No. 102) with Sensor Extension Wire 2 (No. 101), and connect Extension Wire 2 (No. 56) with Extension Wire 1 (No. 44).
Attach the Handlebar Post (No. 2) to the Main Frame (No. 1) with 4 Screws (No. 20), 4 Spring Washers (No. 12) and 4 Arc Washers (No. 22) that were just removed.
Tighten and secure with the Allen Wrench (No. 97).
Move the Upright Tube Cover (No. 24) lower so it snaps into the Main Frame (No. 1).

STEP 4:
Remove 2 Screws (No. 20), 2 Spring Washers (No. 12) and 2 Arc Washers (No. 22) from the Handlebar Post (No. 2) using Allen Wrench (No. 97). Then attach the Armrest (No. 7) to the Handlebar Post (No. 2) with 2 Screws (No. 20), 2 Spring Washers (No. 12) and 2 Arc Washers (No. 22) that were just removed. Tighten and secure with the Allen Wrench (No. 97).
Remove 2 Screws (No. 19) and 2 Flat Washers (No. 53) from the Handlebar Post (No. 2) using Spanner (No. 95). Then attach the Bottle Holder (No. 54) to the Handlebar Post (No. 2) with 2 Screws (No. 19) and 2
Flat Washers (No. 53) that were just removed. Tighten and secure with the Spanner (No. 95).

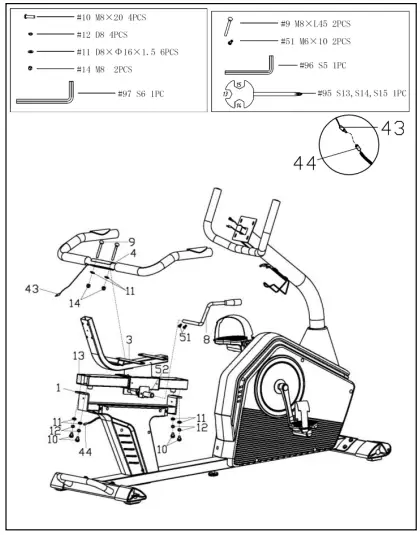

STEP 5:
Remove 4 Screws (No. 10), 4 Spring Washers (No. 12) and 4 Flat Washers (No. 11) from the Rail (No. 13) with Allen Wrench (No. 97). Then attach the Rail (No. 13) to the Main Frame (No. 1) with 4 Screws (No.10), 4 Spring Washers (No. 12) and 4 Flat Washers (No. 11) that were just removed using Allen Wrench (No. 97).
Remove the 2 Screws (No. 51) from the Adjustment Handle (No. 8) using Allen Wrench (No. 96). Then attach the Adjustment Handle (No. 8) to the Axle (No. 52) with 2 Screws (No. 51) that were just removed using Allen Wrench (No. 96).
Remove 2 Carriage Bolts (No. 9), 2 Flat Washers (No. 11) and 2 Cap Nuts (No. 14) from the Handlebar (No. 4) using Spanner (No. 95). Then attach the Handlebar (No. 4)
to the Seat Tube (No. 3) with 2 Carriage Bolts (No. 9), 2 Flat Washers (No. 11) and 2 Cap Nuts (No. 14) that were just removed using Spanner (No. 95). Connect the Pulse Wire (No. 43) with the Extension Wire 1 (No. 44).

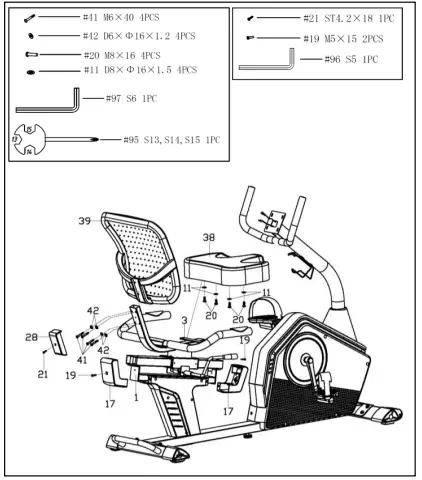

STEP 6:
Remove 2 Screws (No. 19) from the Main Frame (No. 1) using Spanner (No. 95).
Then attach 2 Rail Covers (No. 17) to the Main Frame (No. 1) with 2 Screws (No. 19)
that were just removed using Spanner (No. 95).
Attach the Seat (No. 38) to the Seat Tube (No. 3) with 4 Screws (No. 20) and 4 Flat Washers (No. 11) using Allen Wrench (No. 97).
Attach the Backrest (No. 39) to the Seat Tube (No. 3) with 4 Bolts (No. 41) and 4 Flat Washers (No. 42). Tighten and secure with Allen Wrench (No. 96). Attach the Backrest Cover (No. 28) to the Seat Tube (No. 3) with the Screw (No. 21) using the Spanner (No. 95) to secure.

STEP 7:
Remove 4 Screws (No. 49) from the Meter (No. 100) with Spanner (No. 95).
Connect the Extension Wire 2 (No. 56) with Meter Wire A (No. 100a), and connect the Sensor Extension Wire 1 (No. 102) with Meter Wire B (No. 100b). Then attach the Meter (No. 100) to the bracket of Handlebar Post (No. 2) with 4 Screws (No. 49) that were just removed. Tighten and secure with the Spanner (No. 95).
NOTE: Insert all wires to the tube of Handlebar Post (No. 2). Do not cut or pinch any wires when attaching the Meter (No. 100)
Insert the jack from Adapter (No. 55) to adapter input on the back of Main Frame (No. 1), then plug the Adapter (No. 55) into an outlet.

The assembly is now complete!

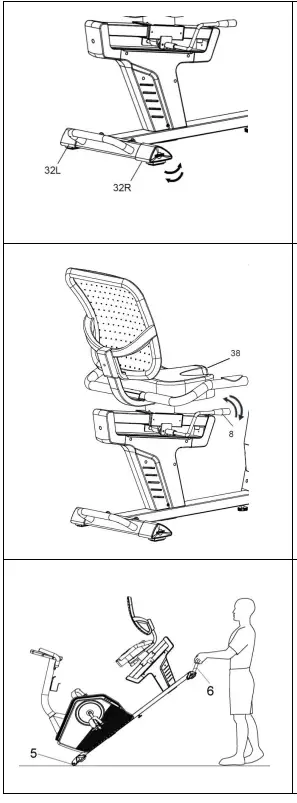

ADJUSTMENT GUIDE ADJUSTING

ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride, you must ensure that the bike is stabled and secured. If you notice that the bike is unbalanced during use, you should adjust the Rear End Caps (No. 32L/R) located beneath the rear stabilizer. To do so, simply turn the dials on the Rear End Caps (No. 32L/R) until the bike becomes levelled with the floor surface. Turn counter-clockwise to raise and turn clockwise to lower

ADJUSTING THE SEAT
To move the Seat (No. 38) forward or backward, while seated on the bike, put your feet on the floor. Shift the Adjustment Handle (No. 8) down to loosen. Move the Seat (No. 38). Shift the Adjustment Handle (No. 8) up to secure

MOVING THE BIKE
There are wheels located on the Front Stabilizer (No. 5). Hold the handlebar on the Rear Stabilizer (No. 6) and pull forward to lift the rear of the recumbent bike off the floor. N ow you can move the recumbent bike.

IMPORTANT RECUMBENT T BIKE INFORMATION

WARNING:
This recumbent bike requires a power source of 1 amp (1 0 0 240V) in order to properly operate. For your safety, as well as the s afe ty of others, please ver ify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

OPERATING INSTRUCTIONS

• Plug the adaptor into the recumbent bike and into the outlet.
• The meter will turn on.
• The meter will turn off if there is no activity for 4 minutes. Press any button on the meter to turn it on again.|

NOTE:
You can still use the recumbent bike when it is not plugged in.
However, them eter will not be working and you cannot adjust the resistance level or use any of the functions.

EXERCISE METER

WORKOUT SELECTION:
After turning the meter on by plugging in the adaptor or if already plugged in, pressi ng any button on the meter, use the UP or DOWN button to make a selection. Then press ENTER button to choose the desired mode.
There are 7 basic workout modes: Manual, Pre set Prog rams, W att Program, Body Fat Program, Target Heart Rate Program, Heart Rate Control Programs , and User Programs

FUNCTIONS

• SPEED : Displays current training speed. Maximum speed is 99.9 MPH
• RPM: Displays current rotation per minute.
• TIME: Accumulates the workout time from 0:00 to 99:59. Users can preset the target time they want.
• DIST (DISTANCE): Accumulates the workout distance from 0.00 to 999.9 Miles. Users can preset the target distance they want to reach.
• ODO (ODOMETER): Displays the total accumulated distance from 0 to 9999 Miles.
• CAL (CALORIES): Accumulates the calories burned from 0 to 9999. Users can preset the target calories they want to burn.
• WATT: Displays current watt.
• HEART RATE: Displays the current heart rate in beats per minute.
• TARGET HR. (TARGET HEART RATE): Users can preset their Target Heart Rate.
• PROGRAM: There are 24 different programs to choose for training.
• LEVEL: The program has 10 columns of bars and 8 bars in each column. Each column represents a 1-minute workout and each bar represents 2 resistance levels.

WORKOUT PARAMETERS:

TIME / DISTANCE / CALORIES / AGE / WATT / TARGET HEART RATE

Setting Workout Parameters
After selecting the desired workout mode: Manual Programs, Pre-set Programs, Watt Control Program, Body Fat Program, Target Heart Rate Program, Heart Rate Control Programs, and User Programs. You may pre-set several workout parameters for desired results.
NOTE: Some parameters are not adjustable in certain programs. Time and Distance cannot be set up at the same time.

Once a program has been selected, press ENTER button and TIME will flash.
Using the UP or DOWN button, you may select the desired time value. Press ENTER button to input the values. The flashing prompt will move to the next parameter. Continue using the UP or DOWN button. Press the START/STOP button to begin the workout.

More About Setting Workout Parameters

PROGRAM OPERATION:

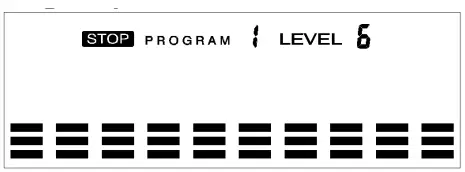

MANUAL PROGRAM (P1)

Program profile

SETTING PARAMETERS FOR MANUAL PROGRAM

1. Select Manual Program (P1) using the UP or DOWN button, then press ENTER button.
2. TIME will flash so the value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the value and move to the next parameter to be adjusted. NOTE: If you set up the target time for workout, then the next parameter of DISTANCE cannot be adjusted.
4. Continue through all desired parameters and press the START/STOP button to begin the workout.
   NOTE: Once the workout parameter counts down to zero, it will beep and stop the workout automatically. Press the START button to continue the workout to reach the unfinished workout parameter.

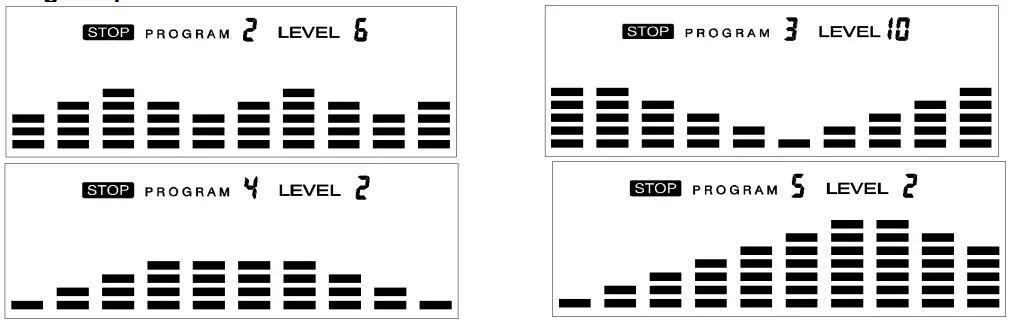

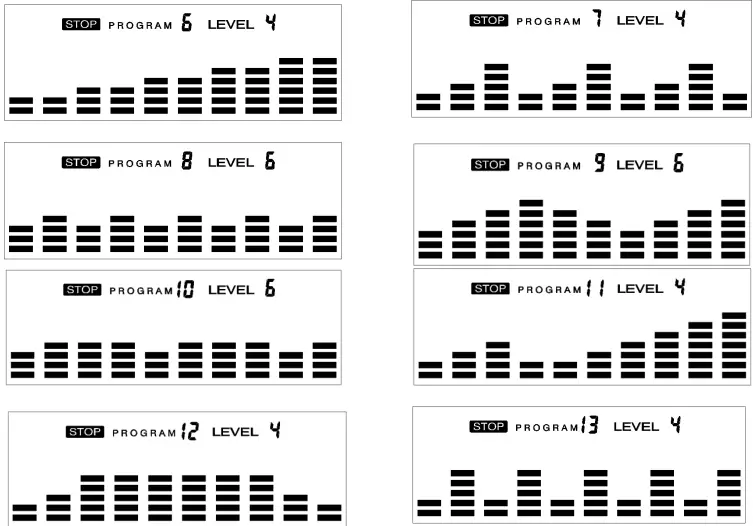

PRE-SET PROGRAMS (P2~P13)

Program profile

There are 12 pre-set programs ready for use. All program profiles have 16 levels of resistance.

SETTING PARAMETERS FOR PRE- SET PROGRAMS

1. Select one of the Pre-set Programs using the UP or DOWN button, then press ENTER button. TIME will flash so the value can be adjusted using the UP or DOWN key.
2. Press the ENTER button to save value and move to the next parameter to be adjusted. Continue through all desired parameters, pressing the START/STOP button to begin the workout.

Workout in any pre-set program
You can adjust the level of resistance by pressing the UP or DOWN button during the workout. NOTE: If you set up the target time for workout, then the next parameter of DISTANCE cannot be adjusted. Once the workout parameter counts down to zero, it will beep and stop the workout automatically. Press the START button to continue the unfinished parameter.

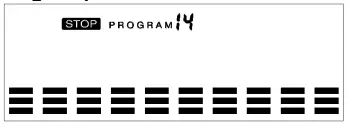

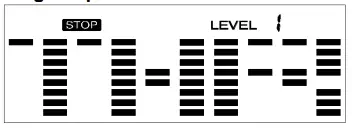

WATT CONTROL PROGRAM (P14)
Program profile

SETTING PARAMETERS FOR THE WATT CONTROL PROGRAM

1. Select Watt Control Program (P14) using the UP or DOWN button, then press ENTER button.
2. TIME will flash so the value can be adjusted using the UP or DOWN button.
3. Press ENTER button to save the value and move to the next parameter to be adjusted.
   NOTE: If you set up the target time for workout, then the next parameter of DISTANCE cannot be adjusted.
4. Continue through all desired parameters, pressing the START/STOP button to start the workout. NOTE: Once the workout parameters count down to zero, it will beep and stop the workout automatically.
5. Press the START button to continue the workout to reach the unfinished workout parameter. The meter will adjust the resistance load automatically depending on the speed to maintain the constant watt value. You can use the UP or DOWN button to adjust the watt value during the workout.

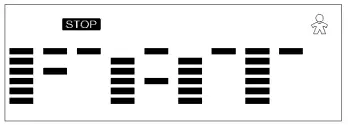

BODY FAT PROGRAM (P15)
Program profile

SETTING DATA FOR BODY FAT
Select BODY FAT Program (P15) using the UP or DOWN button, then press ENTER button. “MALE” will flash so Gender can be adjusted using the UP or DOWN button. Press the ENTER button to save gender and move to the next data.
“5’8 (inches)” of Height will flash so Height can be adjusted using the UP or DOWN button. Press ENTER button to save the value and move to the next data.
“154 (lbs)” of Weight will flash so Weight can be adjusted using the UP or DOWN button. Press ENTER button to save the value and move to the next data.
“30” of Age will flash so Age can be adjusted using the UP or DOWN button. Press ENTER button to save the value.
Press the START/STOP button to start the measurement. Please also remember to grasp the hand pulse sensors. After 15 seconds the display will show Body Fat %, BMR, BMI, & BODY TYPE.

Body Types:
There are 9 body types divided according to the FAT % calculated.

BMR: Basal Metabolism Ratio
BMI: Body Mass Index
Press START/STOP button to return the main display.

TARGET HEART RATE PROGRAM (P16)
Program profile

SETTING PARAMETERS FOR TARGET HEART RATE PROGRAM

1. Select TARGET HR (P16) using the UP or DOWN button, then press ENTER button.
2. TIME will flash. The value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the value and move to the next parameter to be adjusted. NOTE: If you set up the target time to workout, then the next parameter of DISTANCE cannot be adjusted.
4. Continue through all desired parameters, pressing START/STOP button to start workout. NOTE: If heart rate is above the set TARGET HR, the Pulse value will flash to remind the user.

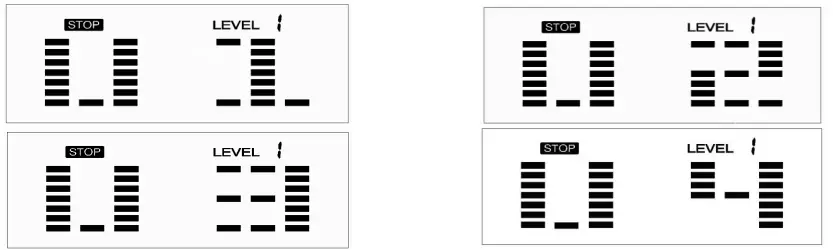

HEART RATE CONTROL PROGRAM (P17-P20)
Program profile

There are 4 selections for target pulse (HR):

• HRC
  55% TARGET HR= 55% of (220 AGE)
• HRC
  65% TARGET HR= 65% of (220 AGE)
• HRC
  75% TARGET HR= 75% of (220 AGE)
• HRC
  85% TAR GET HR= 85% of ( 220 AGE)

SETTING PARAMETERS FOR HEART RATE CONTROL

1. Select one of the Heart Rate Control Programs using the UP or DOWN button, then press ENTER button.
2. TIME will flash. The value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the value and move to the next parameter to be adjusted. NOTE: If you set up the target time to work out, then the next parameter of DISTANCE cannot be adjusted.
4. Continue through all desired parameters, pressing the START/STOP button to start the workout. NOTE: If heart rate is above or below (± 5) the TARGET HR, the meter will adjust the resistance load automatically. It will check every 20 seconds approx. 1 resistance load will increase or decrease (NOTE: each resistance load represents 2 levels of loading).
   If one of the workout parameters counts down to zero, it will beep and stop the workout automatically. Press the START/STOP button to continue the workout to reach unfinished workout parameter.

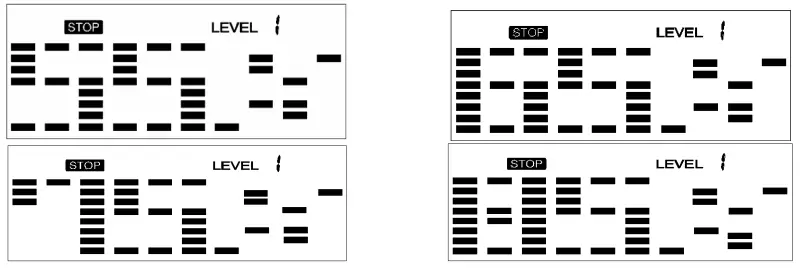

USER PROGRAM
Program profile (P21-P24)

The 4 user programs allow the user to set their own program that can be used immediately.

SETTING PARAMETERS FOR USER PROGRAM

1. Select the User Program using the UP or DOWN button then press ENTER button.
2. TIME will flash so the value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the values and move to the next parameter to be adjusted. NOTE: If you set up the target time to work out, then the next parameter of DISTANCE cannot be adjusted.
4. Continue through all desired parameters.
5. After finishing the setup of the desired parameters, level 1 will flash. Use the UP or DOWN button to adjust, then press the ENTER button until finished. (There are 10 times total). Press the START/STOP button to begin the workout.
   NOTE: Once the workout parameter counts down to zero, it will beep and stop the workout automatically. Press the START/STOP button to continue the workout to reach the unfinished workout parameter.

APP CONNECTION:

1. 1. Scan the QR code below to enter the app store and download the SunnyFit app to your mobile phone.



2. Ensure that the Bluetooth function is turned on from your phone.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in.
4. To connect the equipment to the SunnyFit app:
   • From the “Workout” tab, press on the “Search” button to search for your equipment.
   • Once your equipment appears on the list, tab on the “Select” button.
   • NOTE: If your equipment does not appear on the “Searching for Equipment” list, check the EXERCISE METER on your equipment to ensure that it is not in sleep mode and your phone’s Bluetooth function is on, then tap “Retry” to search again.
   • Once your equipment shows up on the “Workout” tab as “Currently Selected”, your equipment is now ready to display, track, and record your equipment’s workout stats on the app!

TROUBLESHOOTING

NOTE: If you are unable to resolve an issue using the troubleshooting guide above, please contact Customer Service at [email protected].

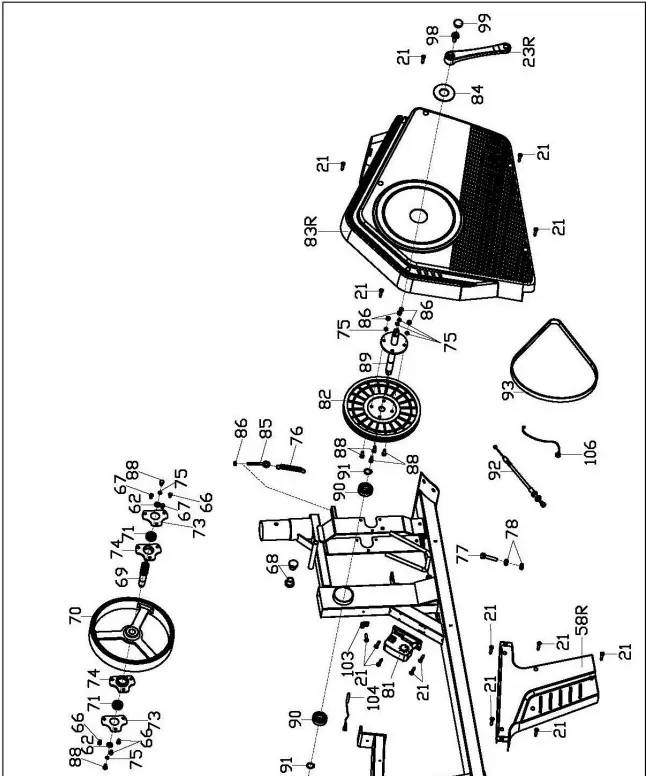

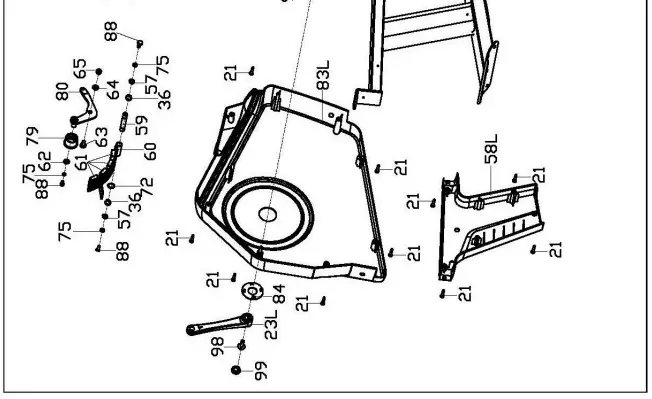

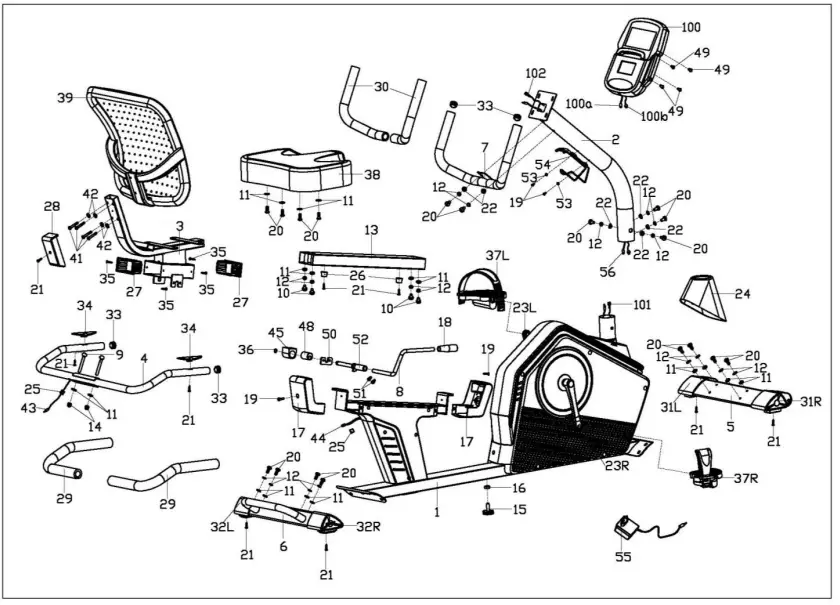

EXPLODED DIAGRAM 1

EXPLODED DIAGRAM 2

PARTS LIST
