work smart – Feel Good
Wireless Grip Mouse
User Manual

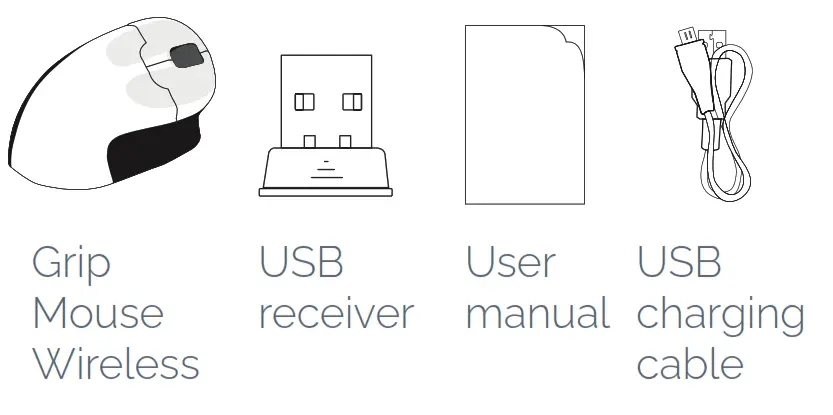

Package contents

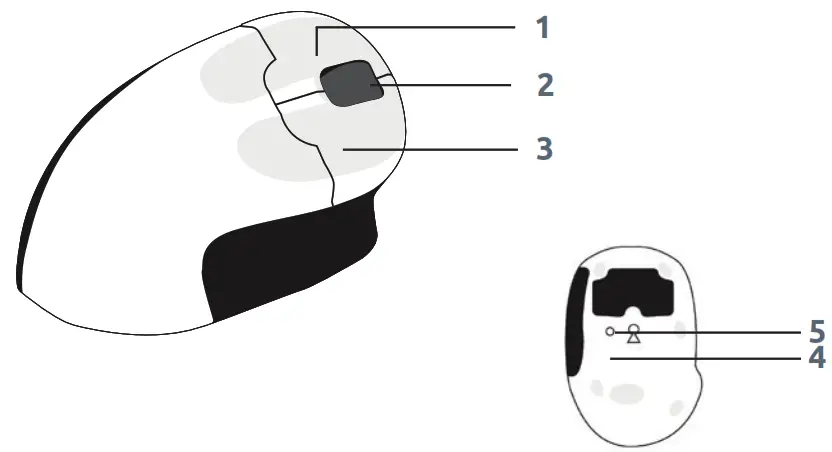

Diagram
| 1. Left button 2. Scroll wheel 3. Right button | 4. DPI button 5. ON/OFF |
Specification
- Optical tracking
- Interface USB
- LED Scroll wheel light
- Size: 130 x 74 x 68 mm
- Net Weight: 145 g
- Working Voltage: 1.5V
- Working Current: 11mA
- DPI: 800/1200/1600
- Compatibility: macOS & Windows 7, 2000, NT & XP, DOS, Unix, Linux
- Connect the USB charging cable to the Grip Mouse and charge the battery.
A red LED at the scroll wheel will light up when connected. - After fully charged connect the USB receiver to a USB port.
- Turn the mouse on with the on/off switch.
- The mouse is now installed automatically and is immediately ready to use. Plug & Play.
- Select with button 4 the requested dpi setting.
- Hint: In order to save battery switch off the device after use.
You can find our FCC Statement on our
website: https://www.bakkerelkhuizen.com/productsupport/ergonomic-mouse/grip-mouse-wireless/
