V9015015M Hanging Lamp n°2
Instruction Manual

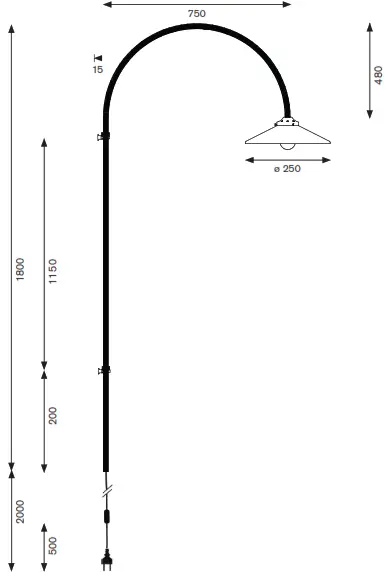

V9015015M Hanging Lamp n°2
V9015015M (brass) / V9015015 B / C / G / U / Z
v protection class 1: the fitting must be earthed
the maximum wattage indicated in each lighting unit, for example, must not be exceeded
for indoor use only, where direct contact with water is impossible
this luminaire was designed to work only with the indicated voltage
observe the indicated minimum distance between the lamp and the illuminated materials/objects
the armature can be used in combination with a dimmer. consult the sales outlet for the correct type
not to be disposed of with domestic waste in the rubbish bin, bring it to a staging area for electrical waste
safety directions
Please study the instruction manual carefully before installing or using this product.
Keep this user manual for further reference / two persons are needed for installation.
- The luminaires may only be installed by authorized and qual ed technicians according to valid regulations for electrical installation.
- Maintenance of the luminaires is limited to their surfaces. During maintenance, no moisture can come into contact with any areas of the terminal connections or voltage control parts.
- Take account of the minimum separation distance from other objects and the room required around the fitting.
- If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.

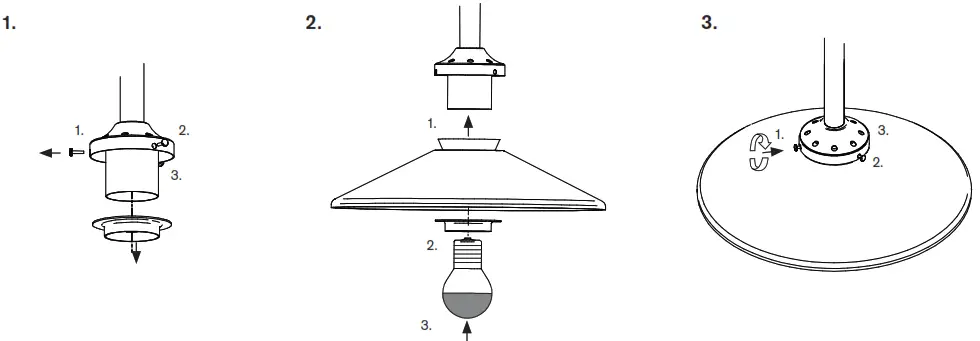

- When replacing a lamp, wait for it to cool, for a minimum of 5 minutes.
- Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components.
- Take account of all available technical information.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qual ed person in order to avoid a hazard.

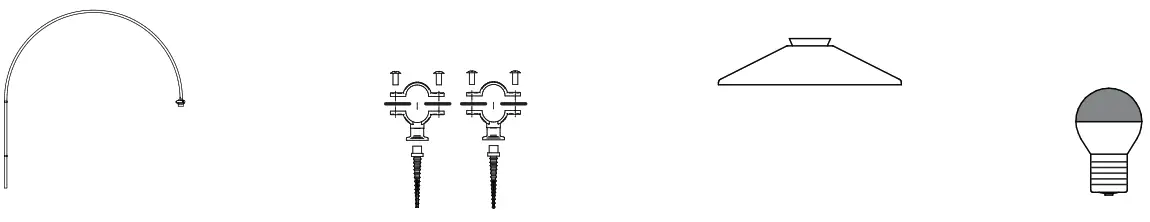

| 1x hanging lamp (frame + power cord) | 2x set wall brackets + spacers (wall plugs included) | 1x lamp shade | 1x Led bulb silvered cap 4W – 350lm 2700 K (dimmable) energy class A+ |
 | |||
- assemble these two parts of the back part

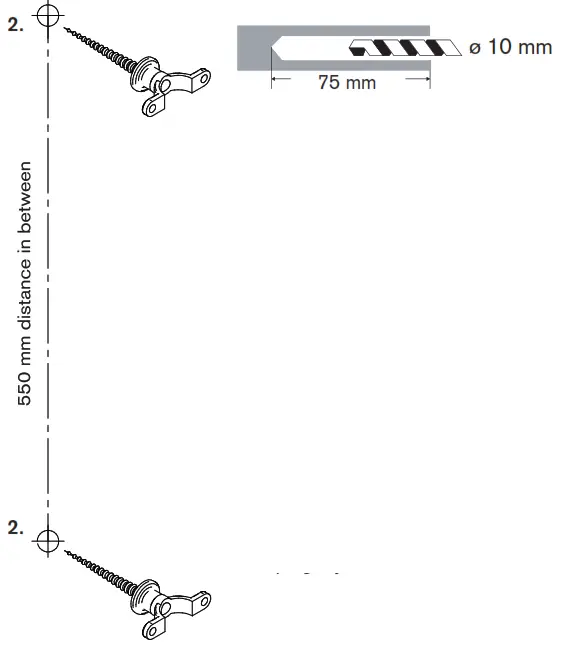

- drill two holes with the requested diameter (ø 10 mm) for the appropriate wall plugs according to your type of wall
- screw the back part of the wall bracket into the wall plug (by hand)

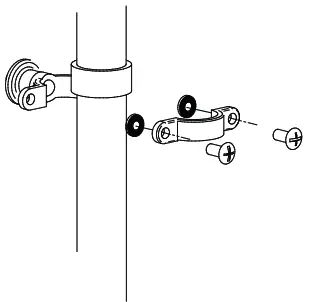

- screw carefully the front part of the wall bracket on the back part (by hand)make sure the spacers are in between

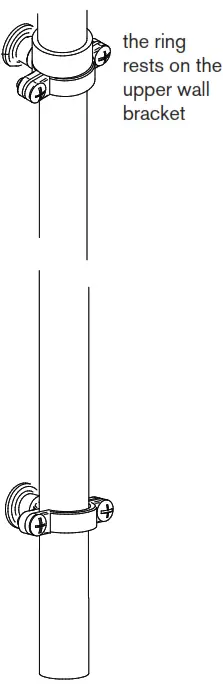

- take care: do not screw the wall brackets tight, in order to turn the hanging lamp
