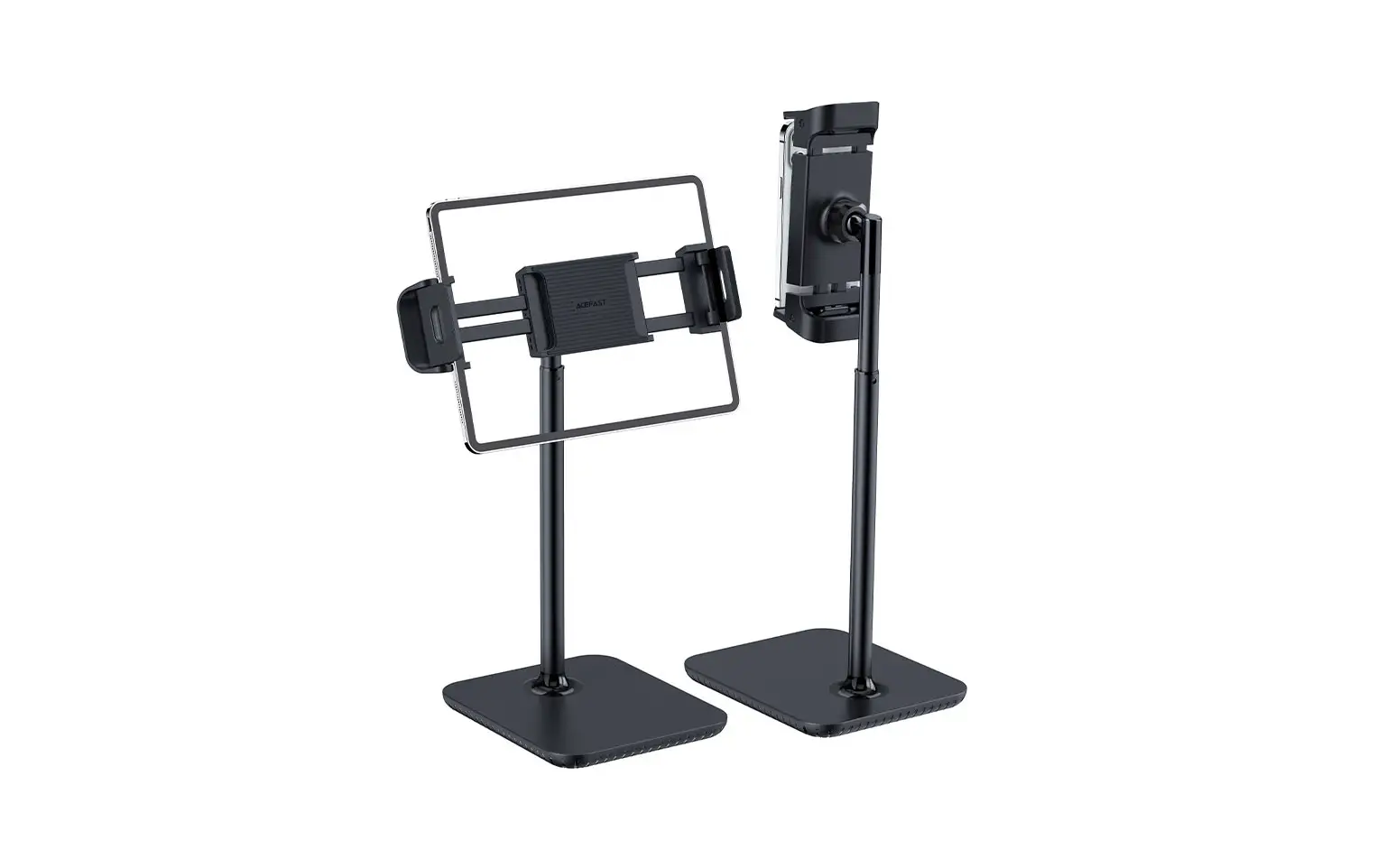

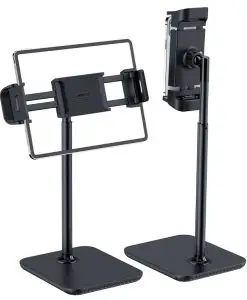

ACEFAST E4 Prosperity Table Holder User Guide

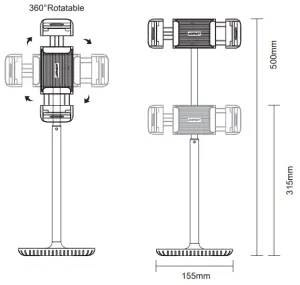

Product Diagram
Package Contents
- Back clip x 1
- Rod x 1
- Base x 1
- Screw x 1
- Hex wrench x 1
Thank you for purchasing the Prosperity Table Holder.
Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

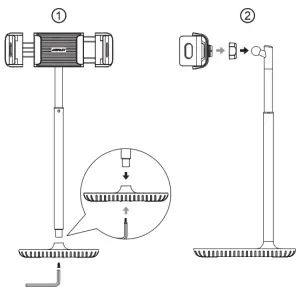

Installation steps
- Take out the base and support rod, insert the support rod into the hole of the base, put in the screw, use a hex wrench to tighten the screw under the base. The notch of the support rod needs to be aligned with the convex point in the circular hole of the base to insert it.
- Remove the screw from the back clamp and put it on the support rod, put the back clamp in, tighten the screw
Specifications
| Product model | E4 |
| Product material | Plastic + Silicone + Hardware |
| Applicable devices size | 4.7 inches -12.9 inches (width 135-230mm, thickness <18mm) |
| Adjustable angle (up/down, left/right) | 60° |
| Rotation | 360° |
| Normal size | 166 x 185 x 315 mm |
| Adjustable height | 315-500mm |
| Maximum load | 1kg |
Note
Product installation and precautions: when installing the rod and the base, pay attention to align the convex points in the round holes.
Failure analysis and troubleshooting: if the rod is loose, please check whether the base fixing screws are tightened. If it is used on a bed or other soft surface, it will shake slightly when clicked.
Daily maintenance: wipe with a rag, do not use strong scrubbing agents.
Regular maintenance: regularly check whether the product components and functions are in good condition. Long-term maintenance: If not used for a long time, please keep it in a cool and dry place.
Product Care
Keep away from liquids and extreme heat
Warranty & Customer Support
For questions, support, or warranty claims, contact us at the mail below that corresponds with your region. Please include your Amazon order number and product mode number.
Amazon US orders: [email protected]
Amazon EU orders: [email protected]
Amazon UK orders: [email protected]
Amazon CA orders: [email protected]
Amazon JP orders: [email protected]
Other region orders: [email protected]
Please note, ACEFAST can provide after sales service for products purchased from any official ACEFAST store. If you have purchased from local seller, you can also contact them directly for service or warranty issues.
