Aeg Dge5161hm Canopy Cooker Hood User Manual

DGE5161HM
DGE5661HM
DGE5861HM
DGE5861 HR
USER MANUAL

DGE5161HM Canopy Cooker Hood

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler — features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
Visit our website to:

	Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support
	Register your product for better service: www.registeraeg.com
	Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE
Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.
Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

SAFETY INFORMATION AND INSTALLATION

WARNING! Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.

PRODUCT DESCRIPTION

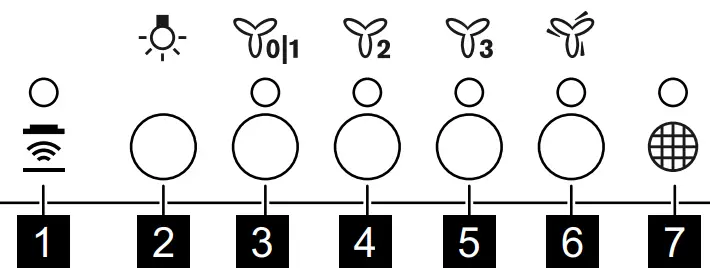

2.1 Control panel overview

DAILY USE

3.1 Using the hood
Check the recommended speed according to the table below.

	While heating up food, cooking with covered pots.
	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
	While boiling, frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
	While boiling, frying big quantities of food without a lid, big humidity. The hood operates on maximum speed. After 6 minutes the appliance returns to previ-ous setting.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.
To operate the hood:

1. Press the first speed button to switch on the appliance.
2. If needed, press the light button to illuminate the cooking surface.
3. If needed, change the speed by pressing the desired button.

To turn off the appliance press the first speed button again.

3.2 Hob²Hood function
It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.
For more information how to use the function refer to the hob user manual.

3.3 Filter notification
Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.
Refer to cleaning the grease filter in care and cleaning chapter.
Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function press the button for 3 seconds.
To activate or deactivate function:

1. To activate function press the button for 3 seconds. If the function is activated, the indicator flashes two times.
2. To deactivate function press the button for 3 seconds. If the function is deactivated, the indicator flashes ones.

3.4 Remote-control
The appliance is supplied with a remote-control. The connection is originally enabled.

To connect or disconnect remote-control:

1. Switch off the appliance.
2. Press the for 3 seconds.
   The indicator on control panel flashes twice if function is enabled and once if disabled.

CARE AND CLEANING

4.1 Notes on cleaning

	Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains ap-pliance must be cooled down and dried with clean cloth or paper tow-els.
	Clean stains with a mild detergent.
	Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire. Follow the instructions for cleaning the accessories when filter notifica-tion is on. Refer to Filter notification in daily use chapter.
	Grease filters can be washed in a dishwasher. The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
	The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The acti-vated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more fre-quently for particularly heavy usage.

4.2 Cleaning the grease filter
Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

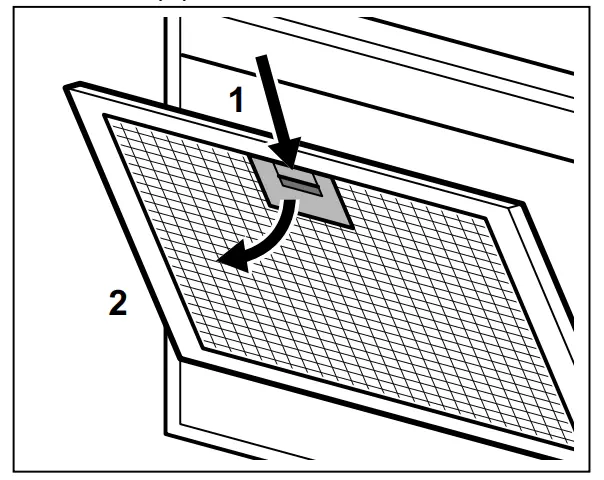

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).
2. Slightly tilt the front of the filter downwards (2), then pull.
   Repeat the first two steps for all filters.
3. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.
   The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
4. To mount the filters back follow the first two steps in reverse order.
   Repeat the steps for all filters if applicable.

4.3 Replacing the charcoal filter

WARNING! The charcoal filter is non-washable!

To replace the filter:

1. Remove the grease filters from the appliance. Refer to “Cleaning the grease filter” in this chapter.

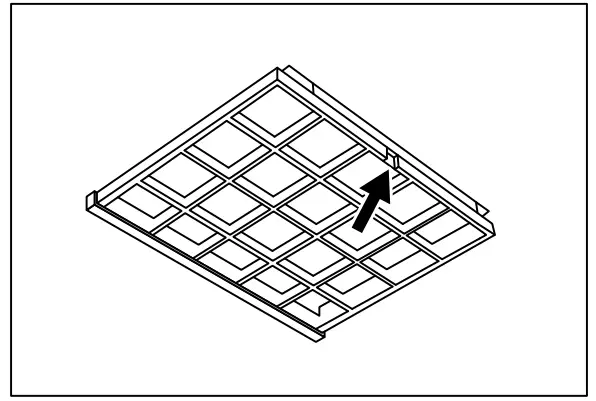

2. Press the front edge in slot towards the bottom part of the filter. Slightly tilt the front of the filter downwards.
3. To install a new filter, perform the same steps in reverse order. In any case, it is necessary to replace the filters at least every four months.

4.4 Replacing the lamp
This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to “Service” in the “Safety Instructions” chapter.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .
Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
