Topmaq A9r5085 3-51mm Manual Pipe Bender On Wheels User Guide

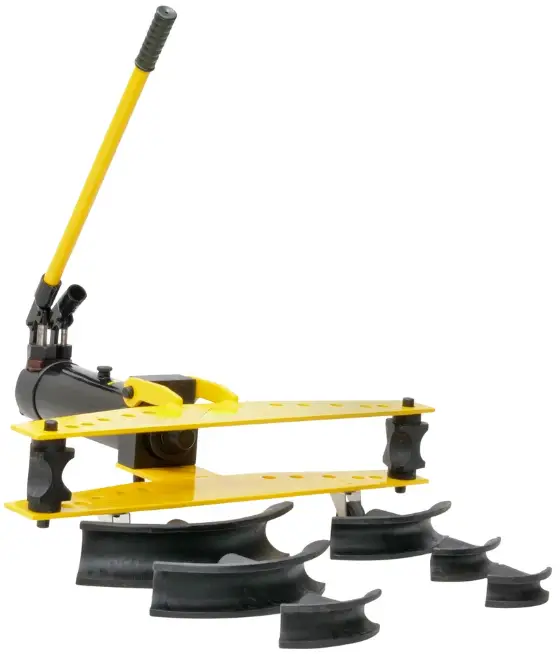

TOPMAQ A9R5085 3-51mm Manual Pipe Bender On Wheels

Overview

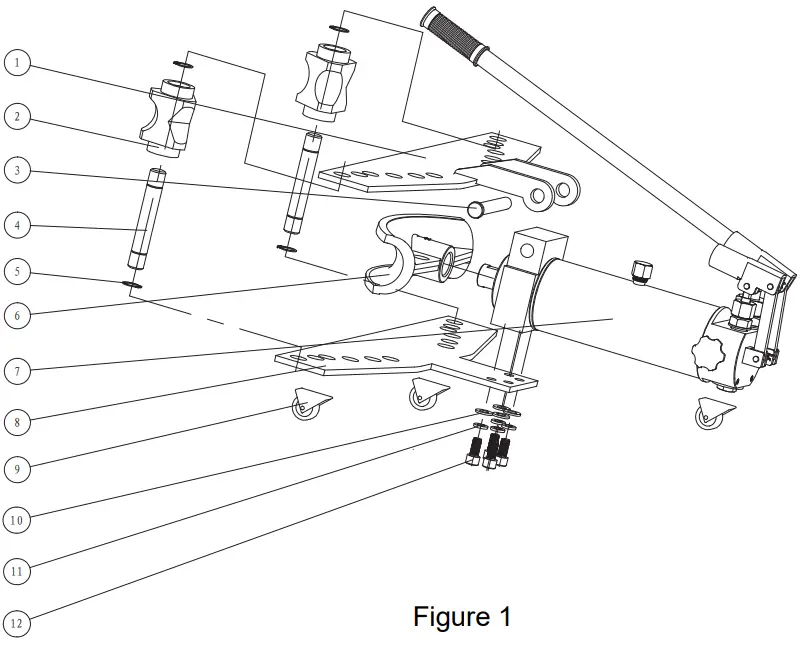

1. Upper wing plate
2. Swage block
3. Pin for upper wing plate
4. Pin for swage block
5. Circlip 018mm for shaft
6. Bending die
7. Pump unit
8. Lower wing plate
9. All-around wheel caster
10. Flat washer 012mm
11. Spring washer 012mm
12. Hexagon socket head cap screw Ml 2×25

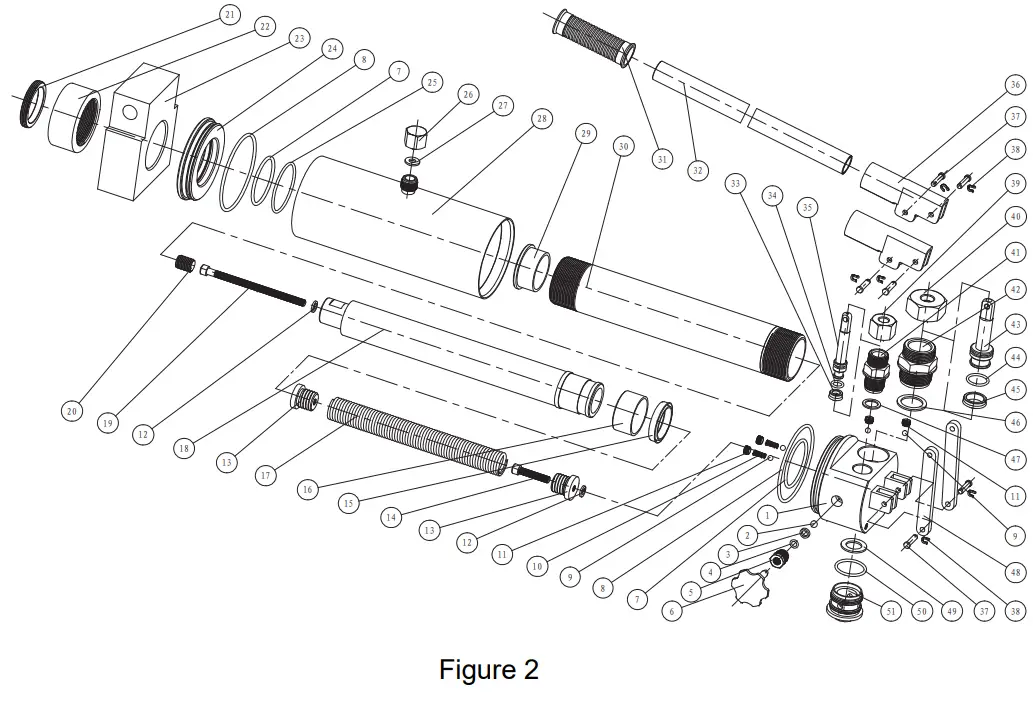

1. Pump housing
2. Steel ball
3. Nylon washer
4. O-ring
5. Plug
6. Release knob
7. O-ring
8. O-ring
9. Steel ball
10. Tapered spring
11. Copper valve
12. Spring washer
13. Spring seat
14. Hexagon socket head cap screw
15. Yx shape sealing ring
16. Iron gland
17. Tension spring
18. Piston
19. Hexagon socket head cap scree
20. Hexagon socket set screw
21. Internal retainer ring
22. External retainer ring
23. Housing base
24. Front cast iron ring
25. O-ring
26. Oil fi ller nut
27. Nylon washer
28. Oil tank
29. Iron gland
30. Cylinder
31. Rubber grip
32. Handle
33.  Yashpal sealing ring
34. O-ring
35. Small plunger piston
36. Handle seat
37. Pin for handle seat
38. Cotter pin
39. Small nut
40. Big nut
41. Small plunger piston housing
42. Big phmger piston housing
43. Big plw1ger piston
44. O-ring
45. Nyx shape sealing ring
46. Copper washer
47. Copper washer
48. Strap
49. Steel washer
50. O-ring
51. Filter seat
