Yale Yl074 Electronic Safe Large Locker Instruction Manual

Yale YL074 Electronic Safe Large Locker

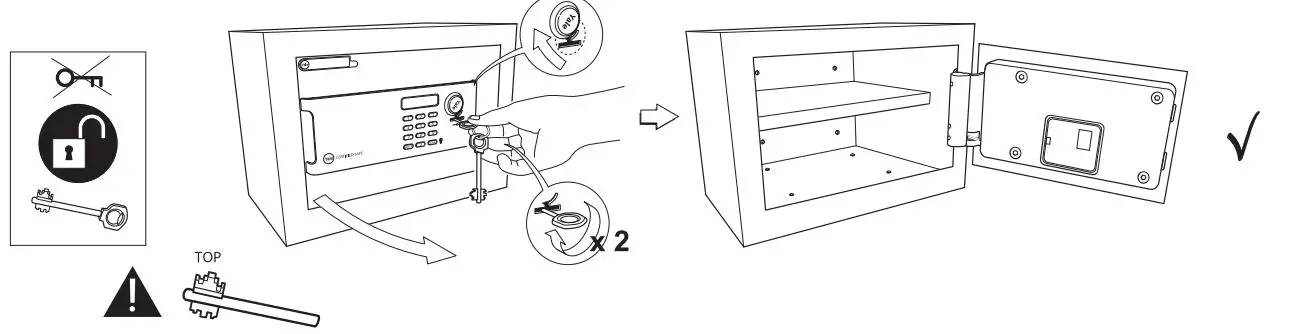

Using the manual override key

Installing the batte

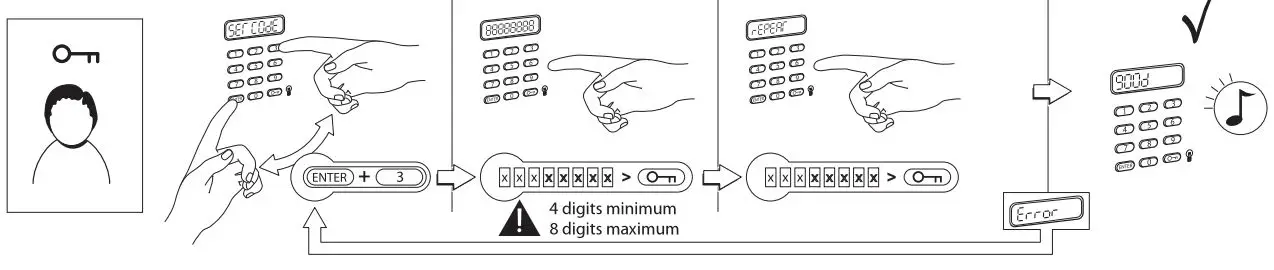

Set/re-set your user code. Minimum 4 to maximum 8 digits

Safe must be in the unlocked setting to set user code and the overide key must be turned fully clockwise To set user code depress the ENTER key, whilst depressing the ENTER key then depress the number 3. When the user code has been set lock the safe using the overide key.

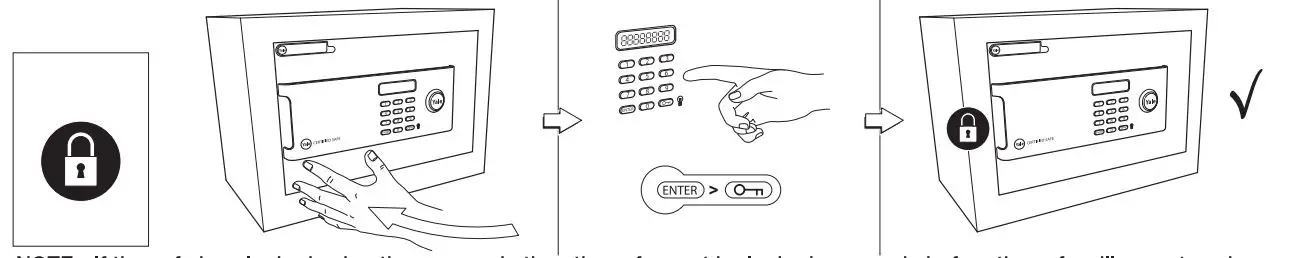

Closing the safe

NOTE: If the safe is unlocked using the user code then the safe must be locked user code before the safe will operate using the override key.
NOTE: If the safe is unlocked using the override key then the safe must be locked using the override key before the safe will operate using the user code.

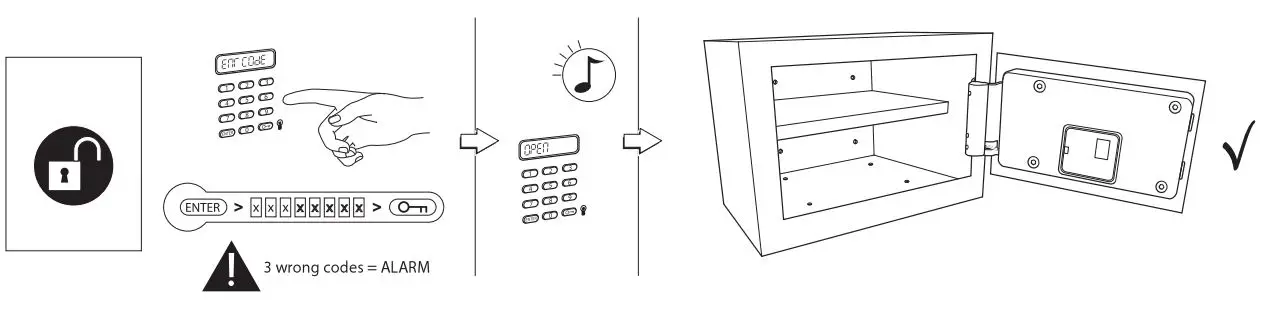

Opening the safe

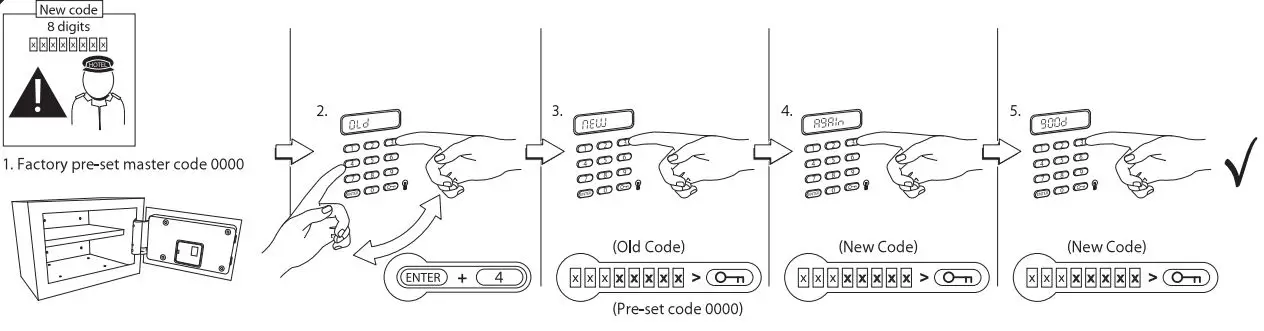

Setting/resetting the Master Code IMPORTANT

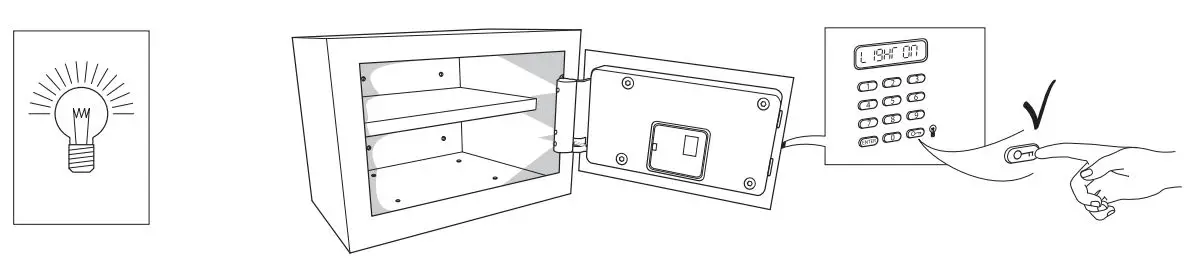

Re-activating the interior light (Only available on some models)

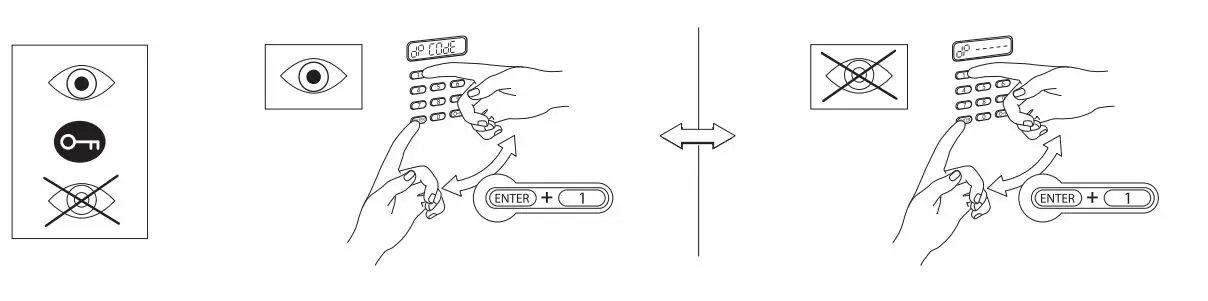

Show/hide digits while entering code

Suitable for Safes Model

1. YSB/200/EB
2. YSB/250/EB
3. YSB/400/EB
4. YSB/600/EB
5. YLB/200/EB
6. YSM/250/EG
7. YSM/ 400/EG
8. YSM/514/EG
9. YSM/520/EG
10. YSM/620/EG
11. YLM/200/EG
