MAGMATIC - logo

Crisp
Service Manual
After Service Department
Version: V2.0
Date: 2022.01.12MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig51

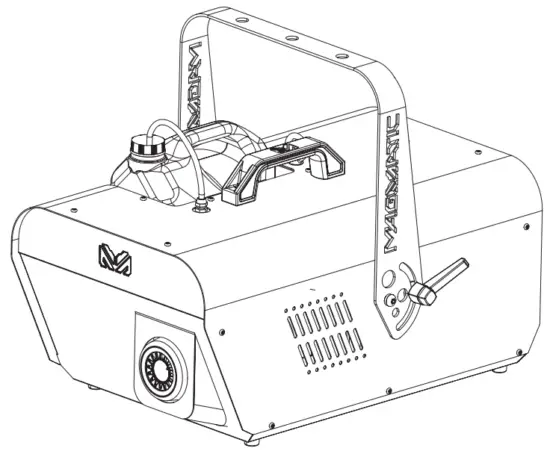

Crisp
Service Manual ContentsMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - Featured Image



ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description

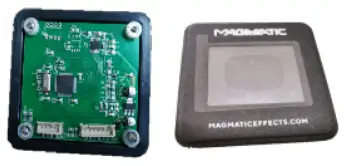

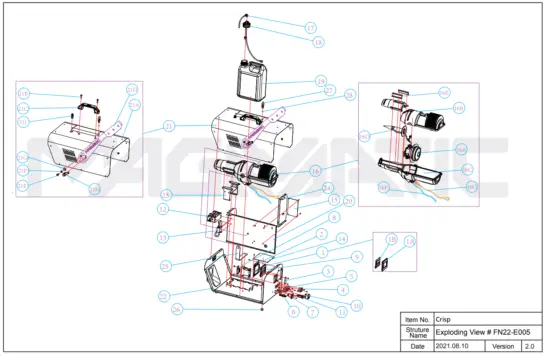

1MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - Featured ImageAAXFN22XZZZZDisplay board assembly for Crisp
1AMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig2FBXFZ22XPXZZTouch screen holder for Crisp

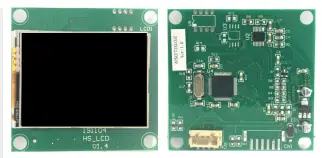

1BMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig3APXFN22XLCDZFinished display board for Crisp
2MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig3EXFN22XA013ZThe screen mount for Crisp

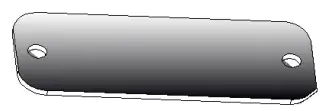

3MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig5EXFN22XA010ZWireless slot cover panel for Crisp
4MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig6APXFN22X110Z4Pin Female XLR Connector PCB for Crisp
ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description

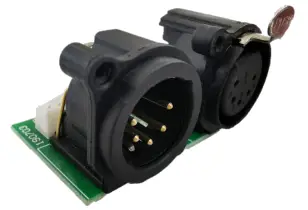

5MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig7APXFN22DMXBZ5Pin Male/Female Connector PCB for Crisp

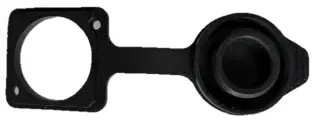

6MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig8WHXFZ22XCNACWaterproof pad for Crisp
7MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig9EAXSAC3MPLYZTRUPOWERCON female TRUE1 waterproof power plug socket for Crisp
8MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig10APXSKT805XBZConnector PCB(#SKT_805) for Crisp
9MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig11EXFN22D007ZZWireless slot base for Crisp
10MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig12SAX16AZZZZZZDouble pole red illuminated switch 16A for Crisp
ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description

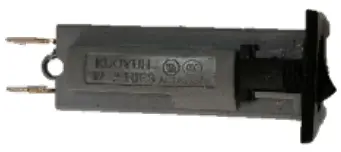

11MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig13

SKX15AX250VZ



120V-non-fuse fuse 15A for Crisp



SKX09AX250VZ



230V-non-fuse fuse 9A for Crisp

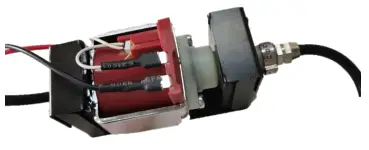

12MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig14AAXFN22CCBMG120V Pump assembly for Crisp
AAXFN22CCBOG230V Pump assembly for Crisp
13MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig15AAXFN22XYJQZOil inspection board assembly for Crisp
14MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig16APXFN22120VZPower supply board for Crisp (120V)
APXFN22230VZPower supply board for Crisp (230V)
15MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig17APXFN22XZZZZFinished main control board for Crisp

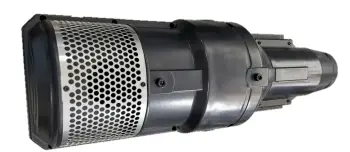

16MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig18AAXFN22XHPTZBarrel assembly for Crisp (120V)
AAXFN22XHPZZBarrel assembly for Crisp (230V)
ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description
11MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig13SKX15AX250VZ120V-non-fuse fuse 15A for Crisp
SKX09AX250VZ230V-non-fuse fuse 9A for Crisp
12MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig14AAXFN22CCBMG120V Pump assembly for Crisp
AAXFN22CCBOG230V Pump assembly for Crisp
13MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig15AAXFN22XYJQZOil inspection board assembly for Crisp
14MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig16APXFN22120VZPower supply board for Crisp (120V)
APXFN22230VZPower supply board for Crisp (230V)
15MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig17APXFN22XZZZZFinished main control board for Crisp
16MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig18AAXFN22XHPTZBarrel assembly for Crisp (120V)
AAXFN22XHPZZBarrel assembly for Crisp (230V)
ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description
16AMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig19AAXFN22XZZZZMotor component for Crisp (120V)
AAXFN22XZZZZMotor component for Crisp (230V)

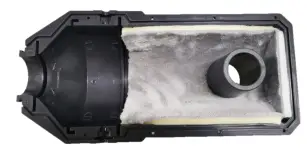

16BMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig20AAXFN22CHPHZBarrel cover A assembly for Crisp

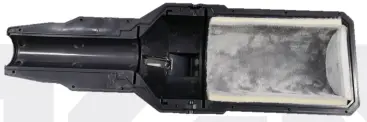

16CMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig21AAXFN22XHPHZBarrel cover C assembly for Crisp

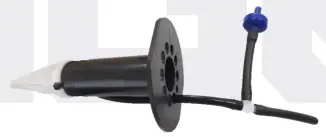

16DMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig22AAXFN22PKZJZNozzle assembly for Crisp

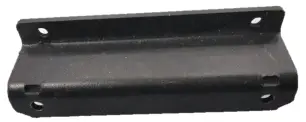

16EMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig23FBXFN22A017ZFront motor bracket fixing piece for Crisp
16FMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig24WIXFNX6X30BZBlack hose for Crisp

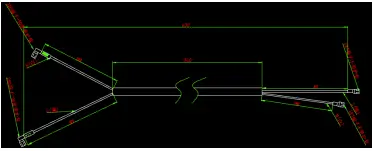

16GMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig25PBXFN22E005BFan power cord B 630mm for Crisp (EU-230V)
PBXFN22E005AFan power cord A 340mm for Crisp (US-120V)
ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description

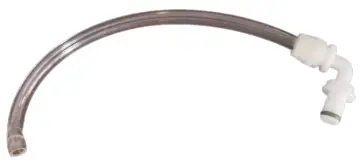

17MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig26AAXFN22YGJTZFluid hose for Crisp

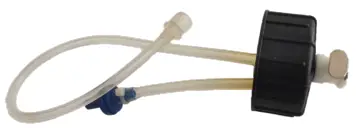

18MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig27AAXFN22YTGJZTank cap assembly for Crisp
19MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig28YCXFN22XYTZZOil tank for Crisp

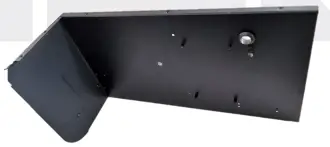

20MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig29EXFN22XA003ZPartition for Crisp

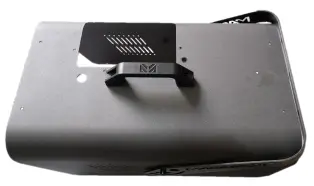

21MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig30AAXFN22ZYZJZTop Cover Set for Crisp

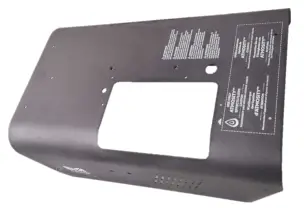

21AMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig31EXFN22XA001ZTop Cover for Crisp
ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description
21BMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig32QF1XM6X20ZZZScrew for Crisp

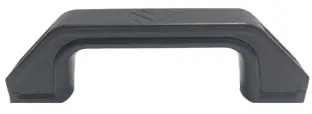

21CMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig33AAXFN62WBBMGHandle for Crisp
21DMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig34EXFN22XA014Zbracket for Crisp
21EMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig35QDOXM8X16ZZZScrew for Crisp
21FMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig36WHXSK50XC14ZHandle fixing copper sleeve for Crisp
21GMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig37QGXM8X22X2ZZWasher for Crisp
ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description

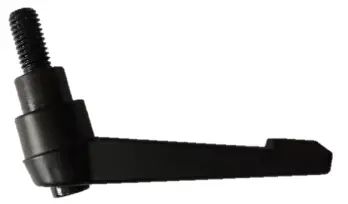

21HMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig38QKXM8X16LHJZAluminum alloy adjustable screw for Crisp

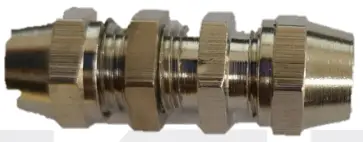

21IMAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig39NBXM5X00002ZHose Connector for Crisp

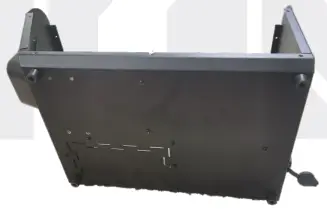

22MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig40EXFN22XA002ZBack Cover for Crisp

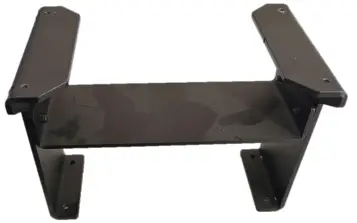

23MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig41AAXFN22QDJZZFront Motor brack for Crisp

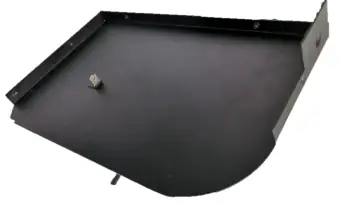

24MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig42EXFN22XA004ZTank Partition for Crisp
ET item no.ET2 item no.Exploded drawing numberphotoItem no.Description

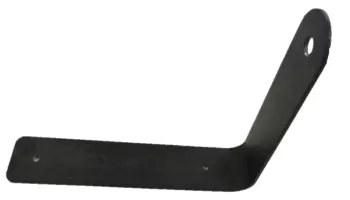

25MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig43EXFN22XA016ZBack motor bracket for Crisp
26MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig44WJX18X13X10ZRubber foot for Crisp
27MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig45QKXM8AZZZZZZSafety Ring(M8) for Crisp
28MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig46QHXM8ZZZZZZZWasher(M8) for Crisp

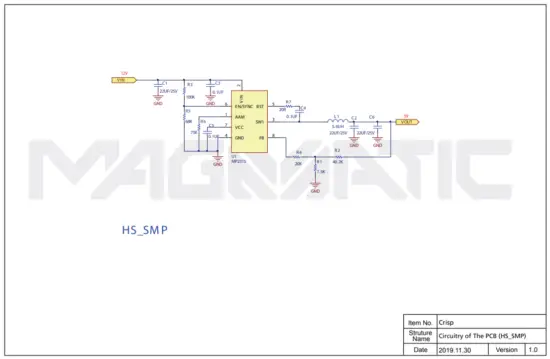

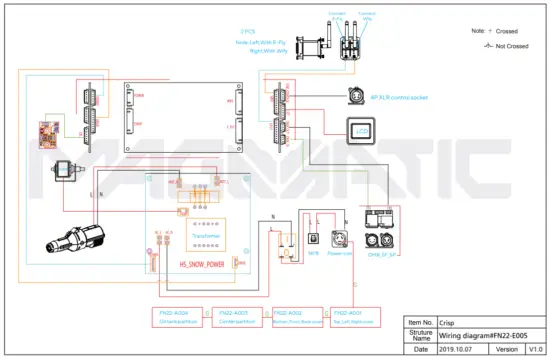

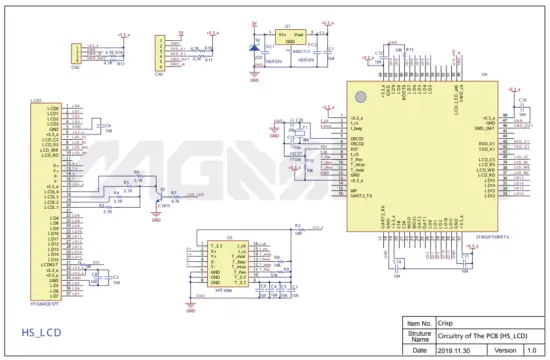

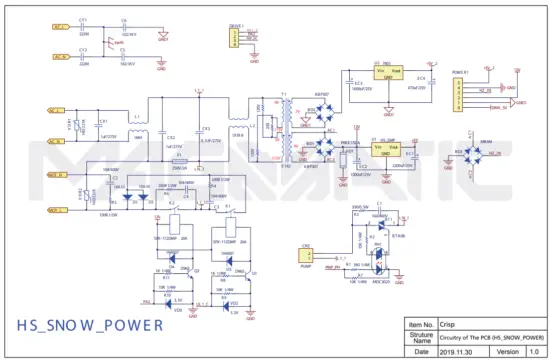

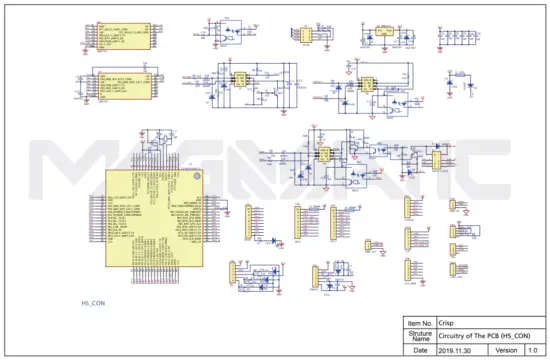

MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig47MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig48MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig49MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig50MAGMATIC EL MM CRISP Crisp Professional Dmx Snow Machine - fig51              After Service Department 15
www.magmaticeffects.com
