Heritage Audio R.a.m.-2000 Desktop Monitoring System User Manual

Heritage Audio R.A.M.-2000 Desktop Monitoring System

DESKTOP MONITORING SYSTEM WITH BLUETOOTH RAM SYSTEMS
SYSTEM 2000

INTRODUCTION

Thank you for choosing the R.A.M. SYSTEM 2000. Heritage Audio is dedicated to bringing you ´the sound of yesterday for tomorrow´. We specialize in capturing that unique, enticing sound that everybody has fallen in love with. For years engineers, producers and musicians have been yearning for that classic vibe. Usually the only option is to search for old, used original equipment that is almost always in a questionable state of operation. This brings with it a whole lot of other issues, making the experience less than desirable. Not to mention the very high prices asked for this equipment, which makes them virtually unobtainable for the great majority. Now it´s possible to obtain that same sound with a brand new piece that will give you all the problem-free, heavy-duty use you´ll need for years of music making history.

Peter Rodriguez
CEO
Heritage Audio – Madrid, Spain
© 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.
Heritage Audio reserves the right to alter specifications without notice. The information in this manual has been carefully checked and is believed to be accurate at the time of publication. However, no responsibility is taken by us for inaccuracies, errors or omissions nor any liability assumed for any loss or damage resulting either directly or indirectly from use of the information contained within it.

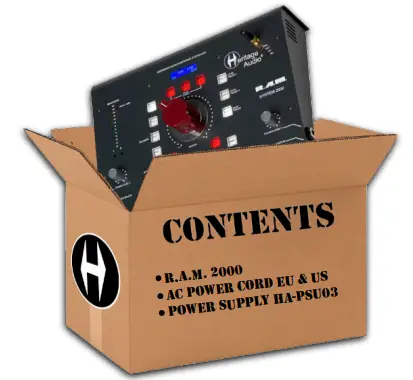

IN THE BOX

DESCRIPTION

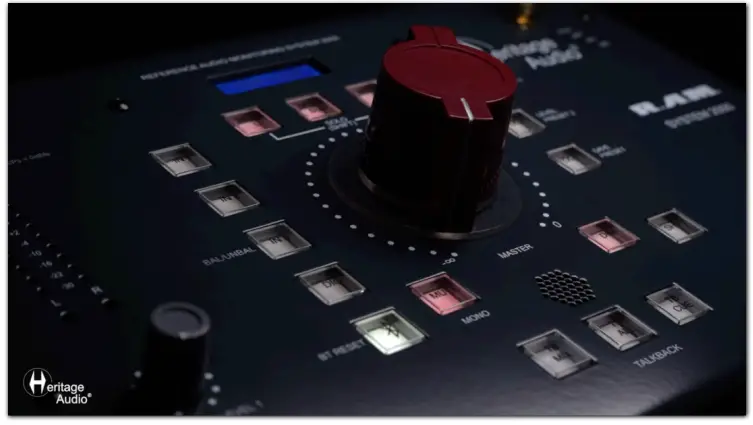

• The Heritage Audio R.A.M. SYSTEM 2000 is a professional monitor controller in an attractive and convenient tabletop format. With its matrix of inputs and outputs the System 2000 will cover all the monitoring needs of the most demanding professional facilities at a price never heard of before.
• The R.A.M. SYSTEM 2000 features generous I/O, with three pairs of +4 dBu balanced analog inputs and three stereo outputs, in addition to an independent pre-fader MIX OUT. Separate stereo CUE Inputs and Outputs, a 24Bit S/PDIF coax input, and pro-audio-quality Bluetooth input via antenna, for easy mobile device integration. For communicating with talent, there’s a built-in Talkback with console-style management and routing. Lastly, Heritage Audio equipped the
• R.A.M. SYSTEM 2000 with an independent Subwoofer output that lets you effortlessly share your sub between different speaker pairs.
• The R.A.M. SYSTEM 2000 is fitted with a 64-step, gold-plated relay ladder attenuation for master level control — a feature usually found only on high-end large-format consoles. It gives an exceptional resolution of 64 dB of attenuation in 1 dB steps. Keeping active electronics to a minimum, the attenuator is buffered using state of the art Burr Brown circuitry for negligible coloration and no noise. For easy recall of common settings, two user-assignable preset levels are also provided.
• Headphone monitoring is as critical as main speaker monitoring. Usually a weak link even in the most expensive units, the R.A.M. SYSTEM 2000 employs very high current drivers in a diamond buffer configuration which are able to drive all headphones to very high levels without any coloration or noise. It has 2 headphone amplifiers that are individually configurable and adjustable.
• Having classic RAF-gray cosmetics and a prominent red Marconi knob, your R.A.M. system will add a touch of class to your control room.

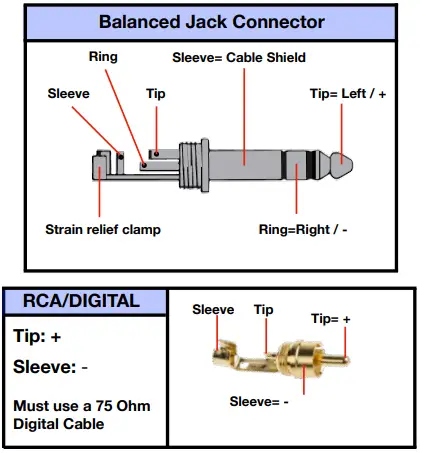

GETTING STARTED

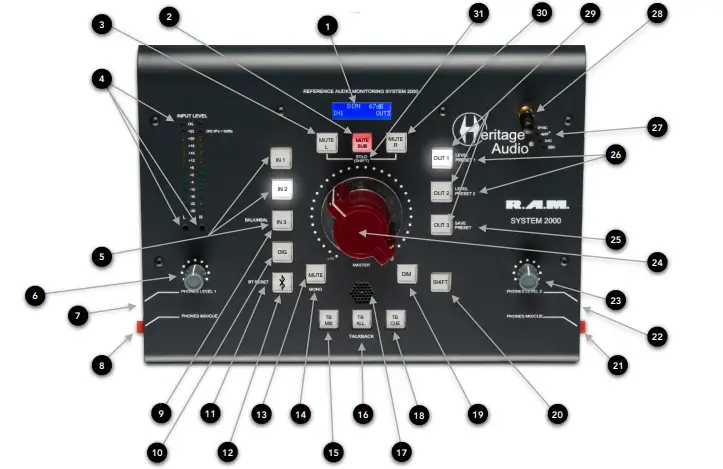

FRONT

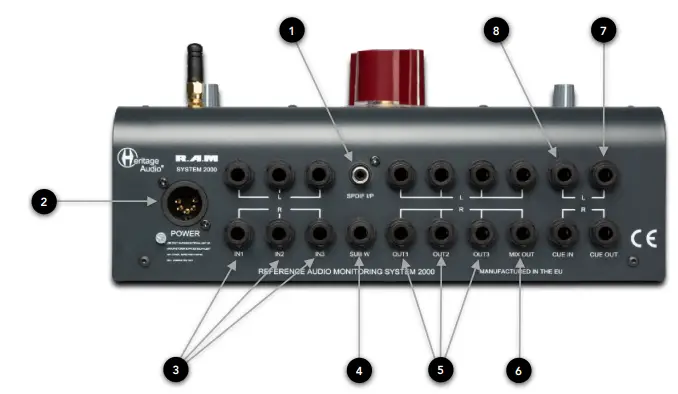

REAR

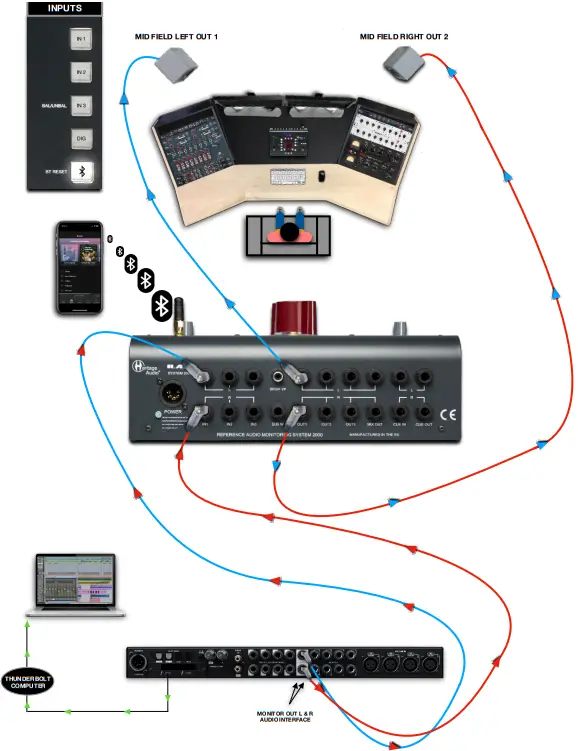

APPLICATIONS

STEREO MONITOR

BLUETOOTH STEREO MONITOR

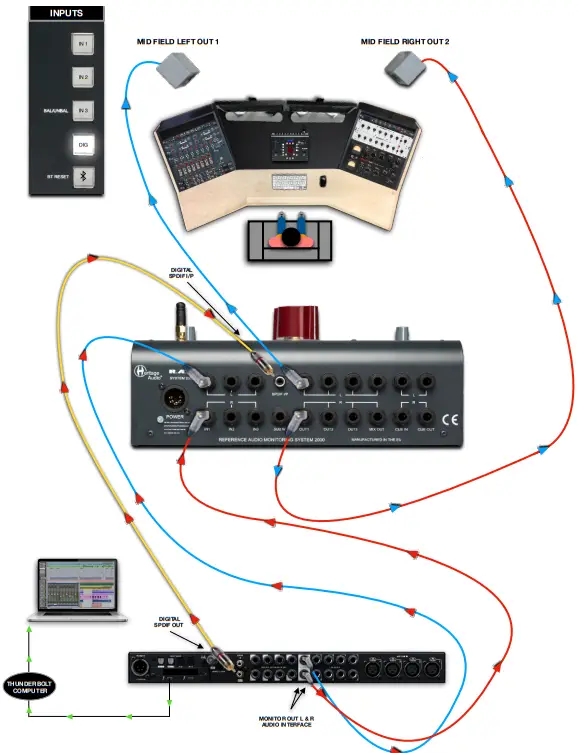

DIGITAL STEREO MONITO

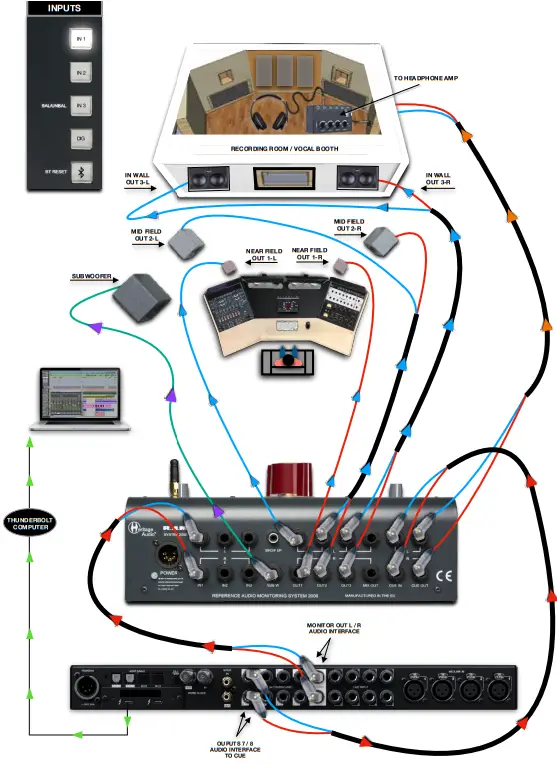

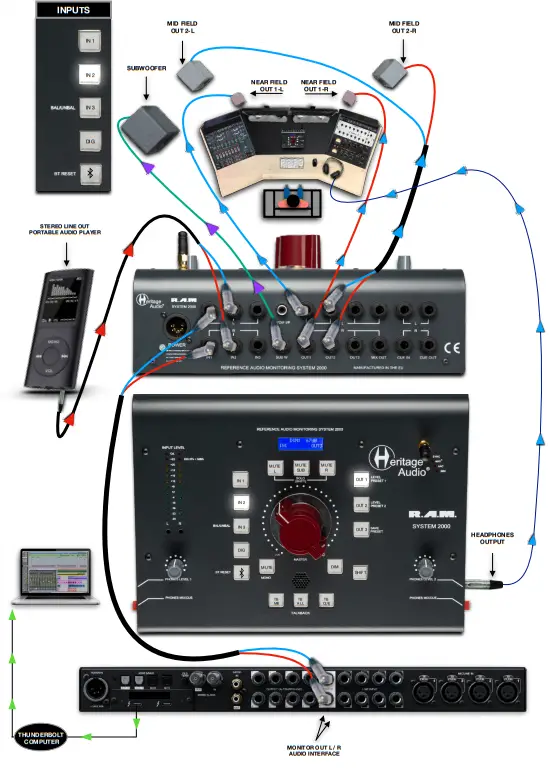

TWO INPUTS & HEADPHONESTHREE OUT MONITORING WITH CUE

SPECIFICATIONS

• Maximum analog input level: Over +27,5 dBu
• Digital input: Up to 24Bit/96 kHz. 0 dBfs= +22 dBu at the output, fader fully up.
• Bluetooth input: AAC, aptX or SBC, 0 dBfs= +22 dBu at the output, fader fully up.
• DIM attenuation: -20 db.
• Maximum output level: Over +27 dBu into 600 Ω.
• Noise: Better than -99 dBu.
• THD: Better than .001 % at 1 kHz, balanced input to balanced output, fader fully up

Dimensions/Weight

• Dimensions (W x H x L): 213 mm x 85 mm (With antenna: 115 mm) x 266 mm.
• Weight: 2,435 Kg.

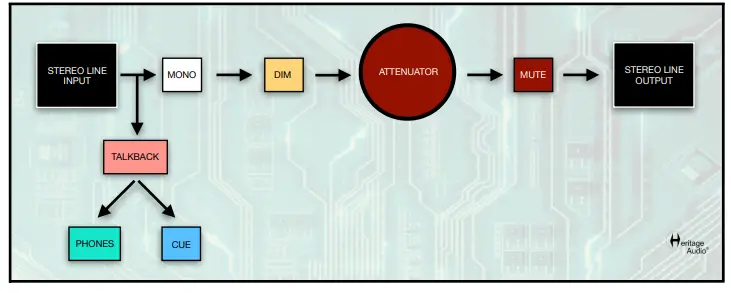

SIGNAL FLOW

TROUBLE SHOOTING

* For any further doubts or questions please get in contact with us at: [email protected]

WARRANTY STATEMENT

LIMITED 2 YEAR WARRANTY

• Heritage Audio R.A.M. SYSTEM 2000 is warranted by Heritage Audio SL to be free from defects in materials and workmanship for the period of 2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to
• Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date. The warranty excludes problems due to normal wear, abuse, shipping damage or failure to use the product in accordance with the specifications.
• Heritage Audio shall not be liable for damages based upon inconvenience, loss of use of the product, loss of time, interrupted operation or commercial loss or any other damages, whether incidental, consequential or otherwise.
• This warranty is not transferable.
• Heritage Audio and the Heritage Audio “H” logos are registered Trademarks owned and/or licensed by Heritage Audio.

REGISTRATION

Please visit our website: https://heritageaudio.com/registration/

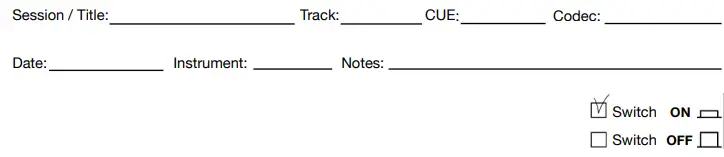

RECALL SHEETS

www.heritageaudio.com
HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 [email protected]
