QUICK REFERENCE GUIDE > WH2424F1
Front Load Washer, 2.4 cu ft,
Time Saver
Series 7 | Front Load
White

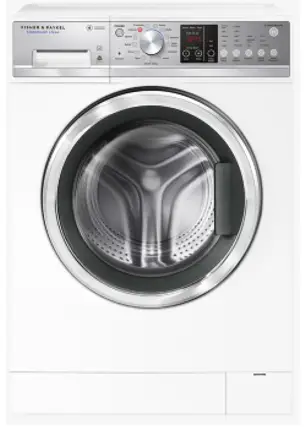

WH2424F1 Front Load Washer 2.4 cu ft Time Saver
Ultimate performance and fabric care, this washer is powered by SmartDrive™ technology for a quicker, quieter wash
- 13 wash cycles including Sanitize, Sports and Wool wash, and extra wash features such as Steam and Time Saver
- With ‘Add a Garment’ function, allowing you to pause your wash and add an item
- Energy Star certified
- With our matching Condensing Dryer you have a perfect pair for your laundry

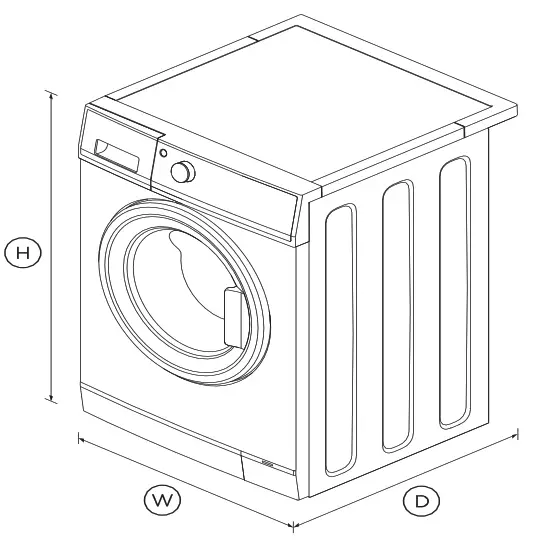

DIMENSIONS
| Height | 33 1/4 – 33 5/8″ |
| Width | 23 7/16″ |
| Depth | 25 3/8″ |
FEATURES & BENEFITS
SMARTDRIVE(TM) TECHNOLOGY
SmartDrive™ Technology is a gentle, quiet, and efficient combination of smart electronics and a direct drive motor that senses the load to deliver better fabric care.
STEAM CLEAN
The Steam function opens up the fibers within the fabric, helping the wash cycle and cleaning agent to do their job more effectively. The result is a superior wash.
TIME SAVER OPTION
The Time Saver option activates a special temperature profile and unique tumble sequence to speed things up when you are in a rush.
PROTECT YOUR WOOLENS
Our Wool cycle has a Woolmark™ guarantee so you can wash your woolen garments with confidence.
DRUM CLEAN
The Drum Clean cycle flushes out the drum minimizing the chance of unwanted smells developing. A handy reminder to activate the Drum Clean function occurs after every 100 wash cycles.
ADD A GARMENT
The Add a Garment feature allows you to quickly add or remove any size garment mid cycle. Simply press the Add a Garment button and the door will unlock. If the drum water is too high, just enough will be drained out before the door is unlocked.
SPECIFICATIONS
| Accessories | |
| Stacking kit | • |
| Capacity | |
| Capacity | 2.4cu ft |
| Consumption | |
| Energy rating | Energy star |
| Water usage (per wash cycle) | 61L |
| Features | |
| Add a garment (immediate | • |
| Anti-fungal door gasket | • |
| Auto out of balance correction | • |
| Choice of cold only or hot and | • |
| Delay start | • |
| Door and gasket flushing | • |
| Eco rinse | • |
| Extra rinse option | • |
| Flood protection | • |
| Interior light | • |
| Keylock | • |
| No spin / Spin Hold | • |
| Pre Wash | • |
| Progress indicator | • |
| SmartTouch™ control dial | • |
| Soak | • |
| Spin speeds | 4 |
| Stainless steel drum | • |
| Time saver function | • |
| Timed liquid detergent | • |
| Water supply | Hot & Cold |
| Water temperature controls | 5 |
| Wrinkle Free | • |
| Performance | |
| Detergent | High efficiency |
| Load sensing | • |
| Maximum spin speed | 1400 rpm |
| Number of spin speeds | 4 |
| SmartDrive™ technology | • |
| Vortex Wash | • |
| Product dimensions | |
| Depth | 25 3/8″ |
| Height | 33 1/4 – 33 5/8″ |
| Width | 23 7/16″ |
| Warranty | |
| Parts and labor | 2 years |
| Parts only SmartDrive™ Motor | 10 years |
| Wash Cycles | |
| Bulky | • |
| Cottons | • |
| Customise cycle | • |
| Delicate | • |
| Drum Clean | • |
| Everyday | • |
| Heavy | • |
| Number of wash cycles | 13 |
| Quick 30 | • |
| Rinse | • |
| Spin | • |
| Sports | • |
| Wool | • |
| SKU | 96235 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model
Other product downloads available at fisherpaykel.com
