Mirider 2021 One Folding Ebike User Guide

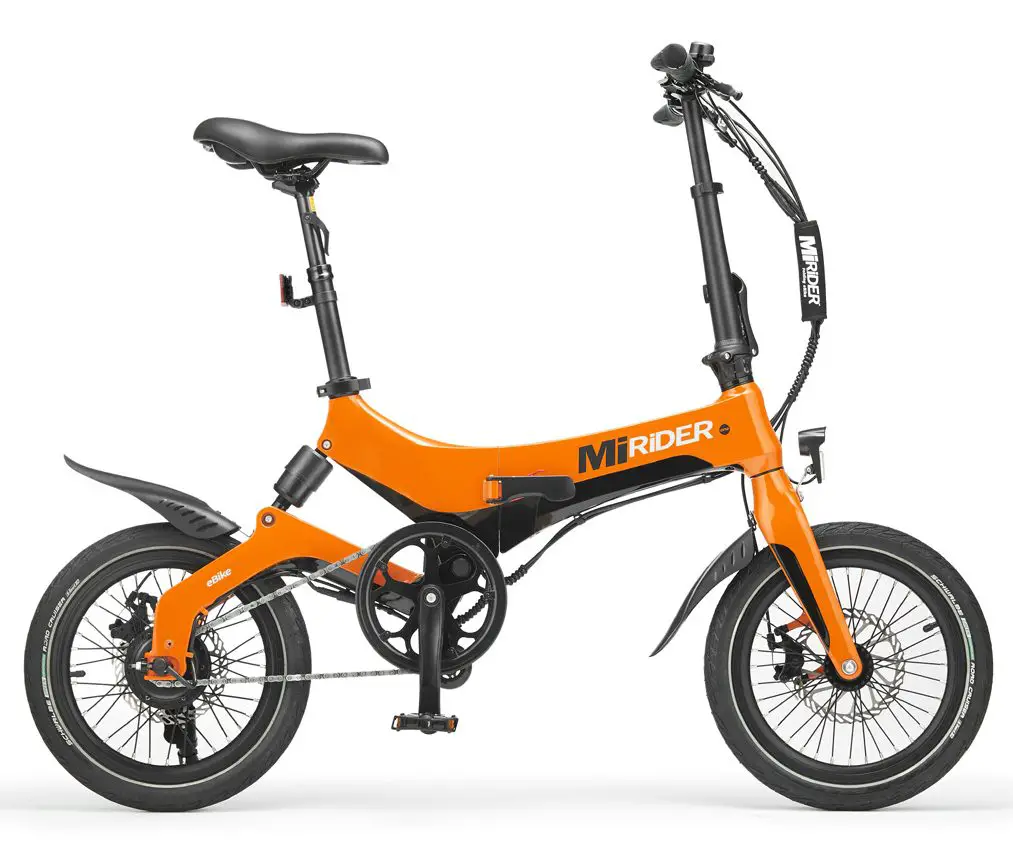

MiRiDER 2021 One Folding eBike

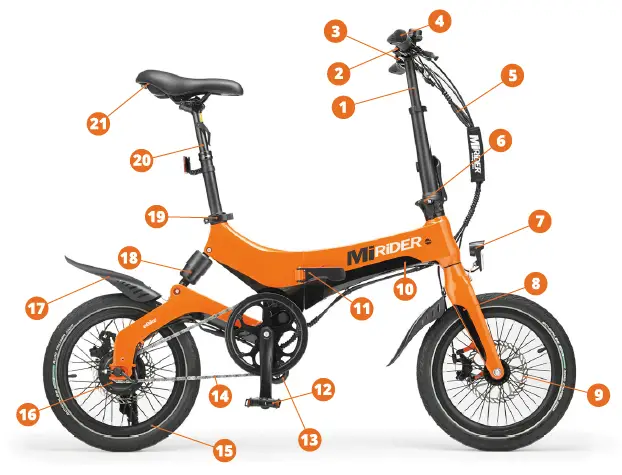

Bike structure and function

1. Telescopic stem
2. Thumb throttle (right hand side)
3. LED computer screen
4. MiRiDER grips
5. Can bus waterproof connectors
6. Stem folding mechanism
7. LED headlight
8. Magnesium fork
9. Disc brakes
10. Magnesium frame
11. Frame folding mechanism
12. Easy fold pedals
13. Cha inset protection wheel
14. KMC chain
15. All terrain tyres
16. 2S0W motor hub
17. Mudguards
18. Shock absorber
19. Seat post clamp
20. Telescopic seat post
21. Ergonomic seat

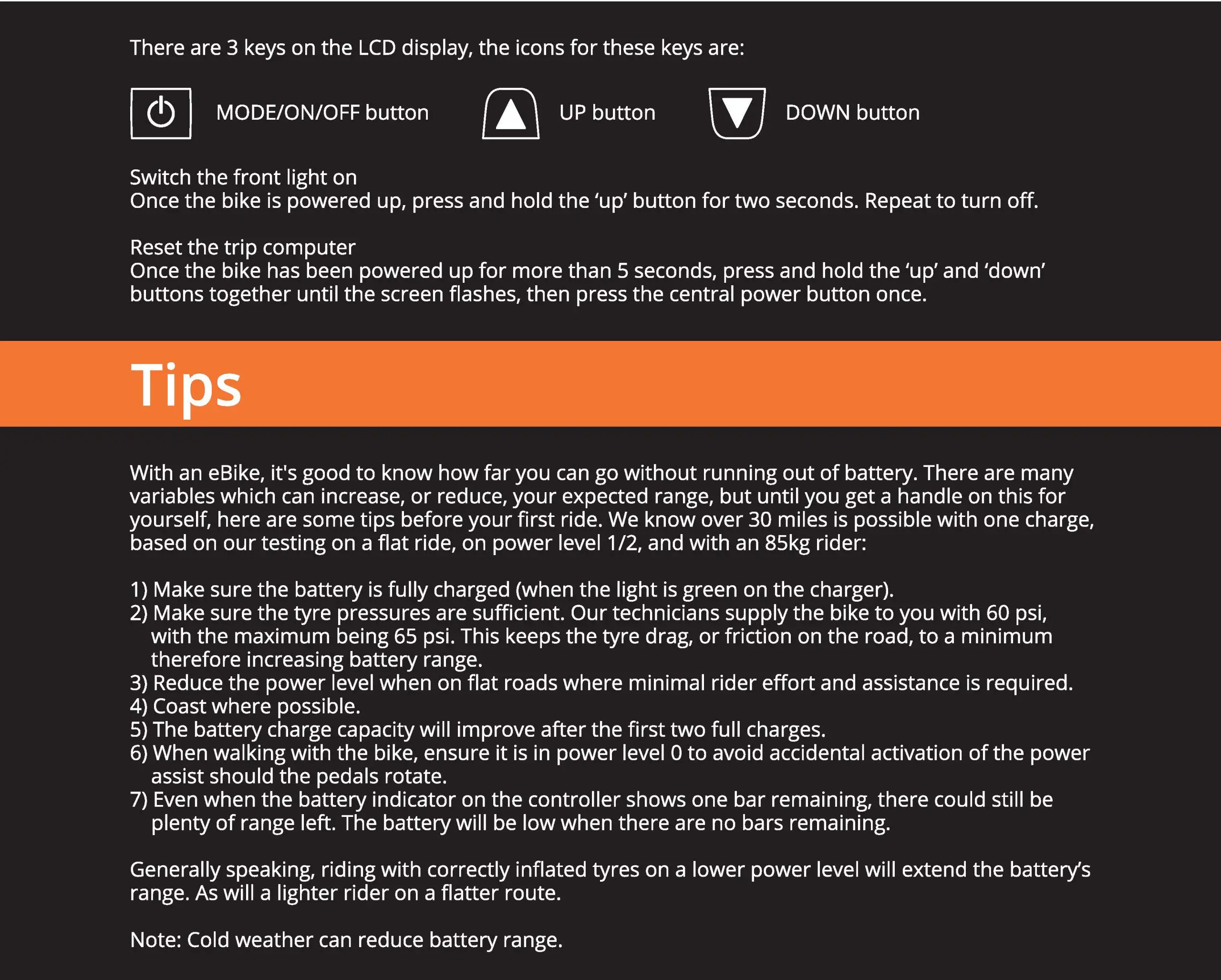

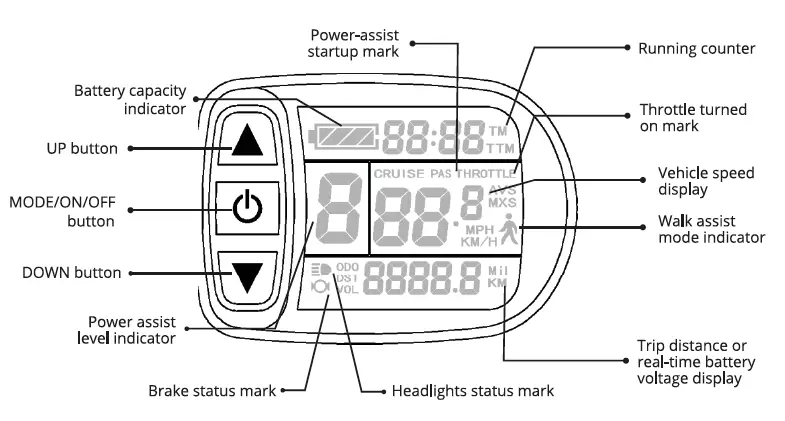

LCD DISPLAY INSTRUCTIONS

The display content is shown as follows:

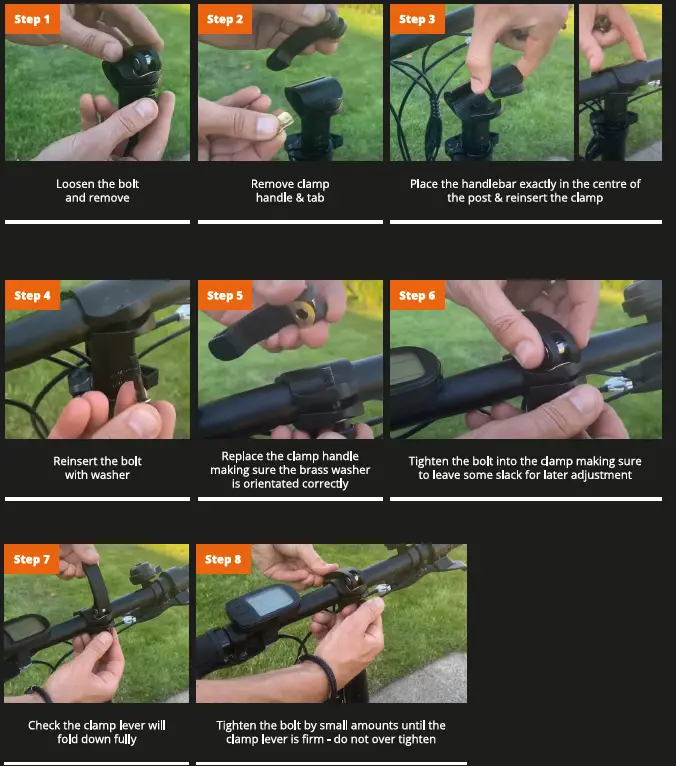

HANDLEBAR FITTING INSTRUCTION

Online video link: mirider.co.uk/videos
To fit the handlebars, please follow these 8 simple steps.
