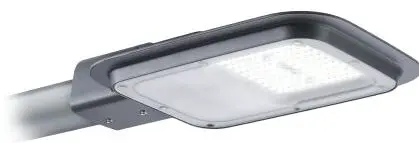

PHILIPS BRP13X SmartBright Road
Sleek, reliable and cost-efficient LED lighting
SmartBright Road
The SmartBright road is ideal for new streets and for renovating existing installations, this affordable range of lighting solutions combines clean, high-quality light with significant energy savings and reduced maintenance.
Benefits
- Perfect for one to one replacement of conventional SON or HPL luminaires.
- Offer initial investment with good-quality and energy-efficient lighting.
- Fit wide application areas and suitable to use for residential street, main road and parking area
Features
- One-to-one replacement for 100W, 150W and 250W conventional SON or HPL luminaires
- Reliable design with diecast aluminum housing
- Fully IP66 Ingress and IK08 mechanical impacts protection
- 10kV/Ka replaceable surge protection device
- 30,000 hours L70 at 35C Ta rated lifetime
- 130lm/w luminous efficacy
- Operating temperature range – 40ºC < Ta < 50ºC
- Optimized optic for road and street lighting
Application
- Road and Residential street parking area walking/cycling path
SmartBright Road
BRP131 BRP132 100W 140W
- Mech. impact protection code IK08
- General information
- CE mark CE mark
- Driver included Yes
- Flammability mark F
Approval and application
Controls and dimming
| Order Code | Full Product Name | Dimmable | Order Code Full Product Name | Dimmable | |
| 911401635004 | BRP132 LED140/NW 140W 220-240V DM | No | 911401676607 BRP132 LED175/NW 140W 220-240V DM GM | No | |
| 911401654806 | BRP131 LED100/CW 100W 220-240V DM GM MS | Yes | 911401676707 BRP132 LED175/CW 140W 220-240V DM GM | No | |
| 911401655306 | BRP132 LED140/CW 140W 220-240V DM GM MS | Yes |
General information
| 911401635004 | BRP132 740 neutral PC-MLO LED140/NW 140W white 220-240V DM | No | 1 unit | 911401676607 | BRP132 LED175/NW 140W 220-240V DM GM | Neutral white | TT | – – | |
| 911401654806 | BRP131 LED100/CW 757 cool PC-MLO 100W 220-240V white DM GM MS | – | – | 911401676707 | BRP132 LED175/CW 140W 220-240V DM GM | Cool white | TT | – – | |
| 911401655306 | BRP132 LED140/CW 757 cool PC-MLO | – | – |
SmartBright Road
| Initial performance (IEC compliant) | ||||||||
| Init. Corr. Color | Init. Color Rendering | Initial luminous | Init. Corr. Color | Init. Color Rendering | Initial luminous | |||
| Order Code Full Product Name Temperature | Index | flux | Order Code | Full Product Name | Temperature | Index | flux | |
| 911401635004 BRP132 LED140/NW 4000 K 140W 220-240V DM | 70 | 14000 lm | 911401676607 | BRP132 LED175/NW 140W 220-240V DM | 4000 K | >70 | 17500 lm | |
| 911401654806 BRP131 LED100/CW 5700 K | >70 | 10000 lm | GM | |||||
| 100W 220-240V DM GM MS | 911401676707 | BRP132 LED175/CW 140W 220-240V DM | 5700 K | >70 | 17500 lm | |||
| 911401655306 BRP132 LED140/CW 5700 K | >70 | 14000 lm | GM | |||||
| 140W 220-240V DM | ||||||||
Mechanical and housing
| Order Code | Full Product Name | Color | Order Code | Full Product Name | Color | |
| 911401635004 | BRP132 LED140/NW 140W 220-240V DM | Dark gray | 911401676607 | BRP132 LED175/NW 140W 220-240V DM GM | Gray | |
| 911401654806 | BRP131 LED100/CW 100W 220-240V DM GM MS | Dark gray | 911401676707 | BRP132 LED175/CW 140W 220-240V DM GM | Gray | |
| 911401655306 | BRP132 LED140/CW 140W 220-240V DM GM MS | Dark gray |
