Philips 31bdl73xxl High Brightness Digital Signage User Guide

Professional
Display Solutions
L Line
31BDL73xxL
31BDL75xxL
Quick Start

Please check out the website below for more product information.
https://www.philips.co.uk/p-m-pr/signage-solutions/latest#filters=L_LINE_SERIES_SU

31BDL73xxL High Brightness Digital Signage

* Differences according to regions.
Display design and accessories may dier from those illustrated above.

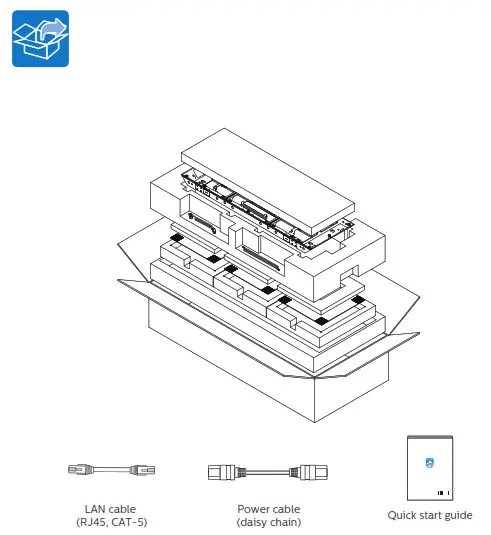

Unpacking

Notes:

1. After unpacking, ensure that the modules are in good condition. If anything is damaged or broken, please contact your local service center immediately.
2. Use a pair of scissors to cut vacuum packaging, then take the modules out of the package. Be extremely careful not to damage the module when using the scissors.
3. It is required to wear anti-static gloves before handling the cabinet.
4. Do not place the display vertically on the oor, as it may fall down and get damaged. (The damage will not be covered by warranty)

Rear/top/side/bottom views

1. Mounting holes for screw bolt
2. CHECK button

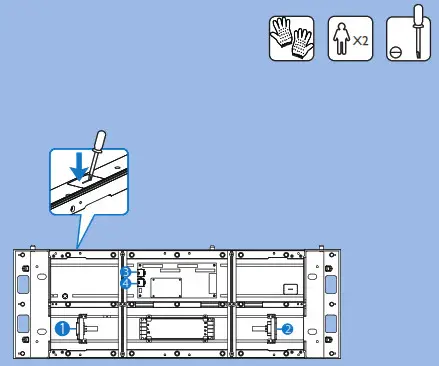

Removing the opening

Before breaking the opening, determine the number of displays to install and the installation layout to form a large video wall array.

1. POWER IN connector
2. POWER OUT connector
3. DATA connector
4. DATA connector

Connecting the cabinets

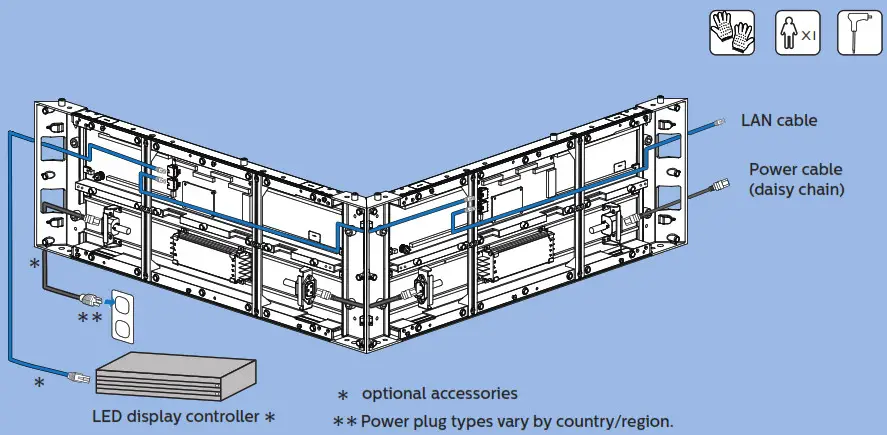

Connecting the data and power cables

Plug the power plug into the electric outlet only when the cables are properly wired.
Note: More cable wiring schemes and mounting schemes can be found in the User’s Manual.

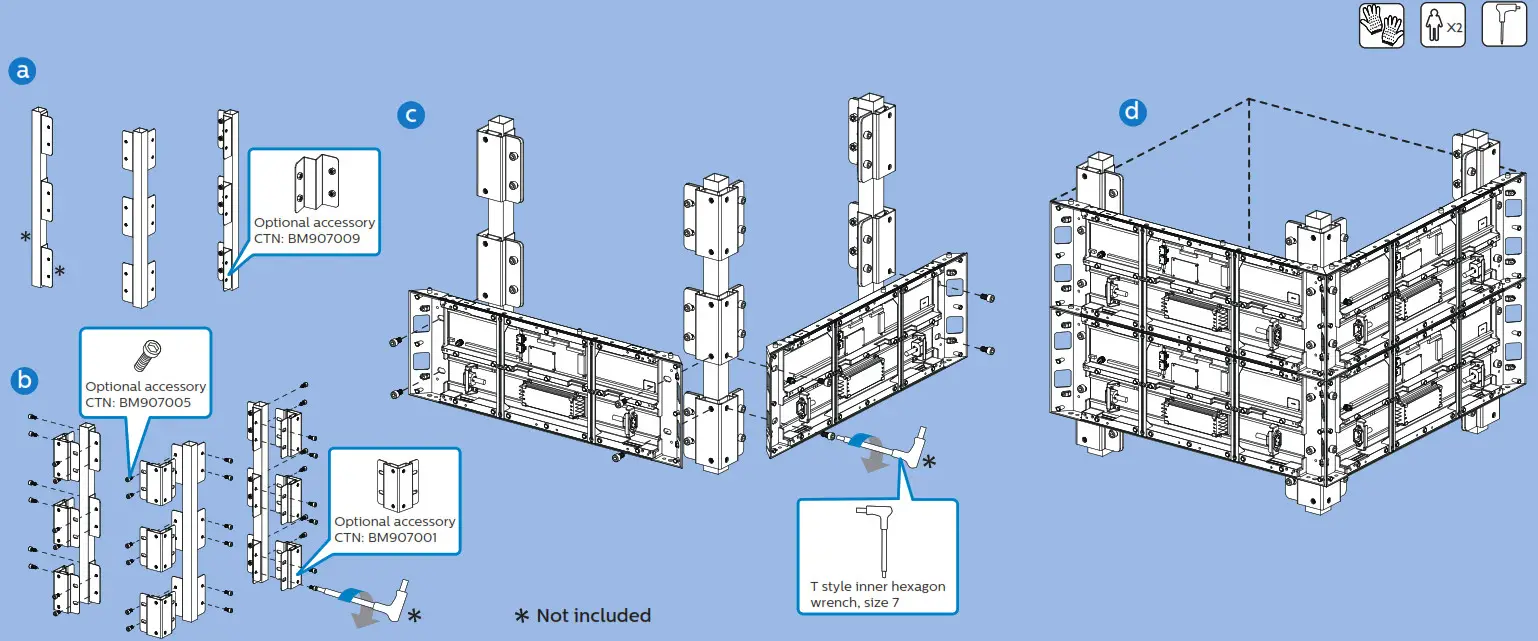

Installing the LED modules

UK Authorized Representative
UKCA Experts Ltd.
Dept 302, 43 Owston Road Carcroft
Doncaster, DN6 8DA United Kingdom

2021 © TOP Victory Investments Ltd. All rights reserved. This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem have registered trademarks of Koninklijke Philips N.V. and are used under license.

Specifications are subject to change without notice.
Version: V1.00 2021-09-23
