PV-FX6 / PV-FX7 / PV-FX8
Flush-Mount Coaxials
Owner’s Manual
Pavilion PV-FX8 Flush Mount Coaxial Ceiling Speaker

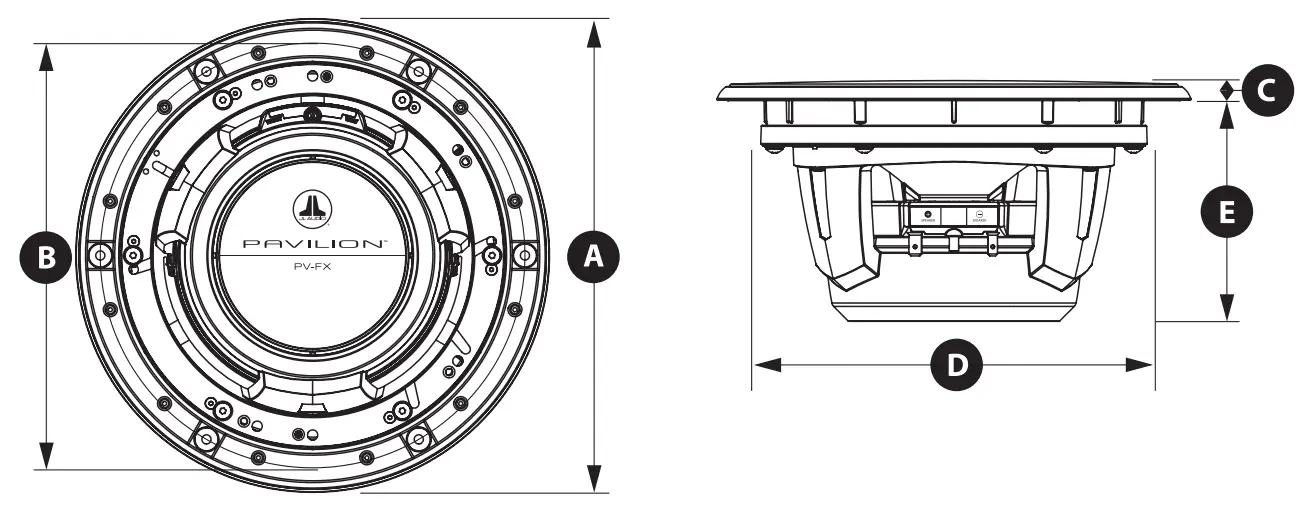

| PV-FX6 | PV-FX7 | PV-FX8 | |
| A | 8.34 in / 212 mm | 9.13 in / 232 mm | 10.25 in / 260 mm |
| B | 9.65 in / 245 mm | 10.45 in / 265 mm | 11.55 in / 293 mm |
| B | 7.39 in / 188 mm | 8.18 in / 208 mm | 9.27 in / 235 mm |
| C | 0.37 in / 9 mm | 0.38 in / 10 mm | 0.48 in / 12 mm |
| D | 6.875 in / 175 mm | 7.625 in / 194 mm | 8.75 in / 222 mm |
| E | 3.87 in / 98 mm | 4.26 in / 108 mm | 6.30 in / 160 mm |
| 0.80 in / 20 mm | 1.00 in / 25 mm | 1.25 in / 32 mm | |
| 60 W | 80 W | 100 W | |
| 30 – 120 W | 40 – 160 W | 50 – 200 W | |
| 89.5 dB @ 1W/1m | 91.0 dB @ 1W/1m | 90.5 dB @ 1W/1m | |
| 55 Hz – 25 KHz ± 3 dB | 45 Hz – 25 KHz ± 3 dB | 38 Hz – 20 KHz ± 3 dB | |
| 4 Ω | 4 Ω | 4 Ω | |
| ✓ | ✓ | ✓ |
Product images shown are for illustrative purposes only and may differ from the actual product. Due to continuous product development, all specifications are subject to change without notice.
IMPORTANT:

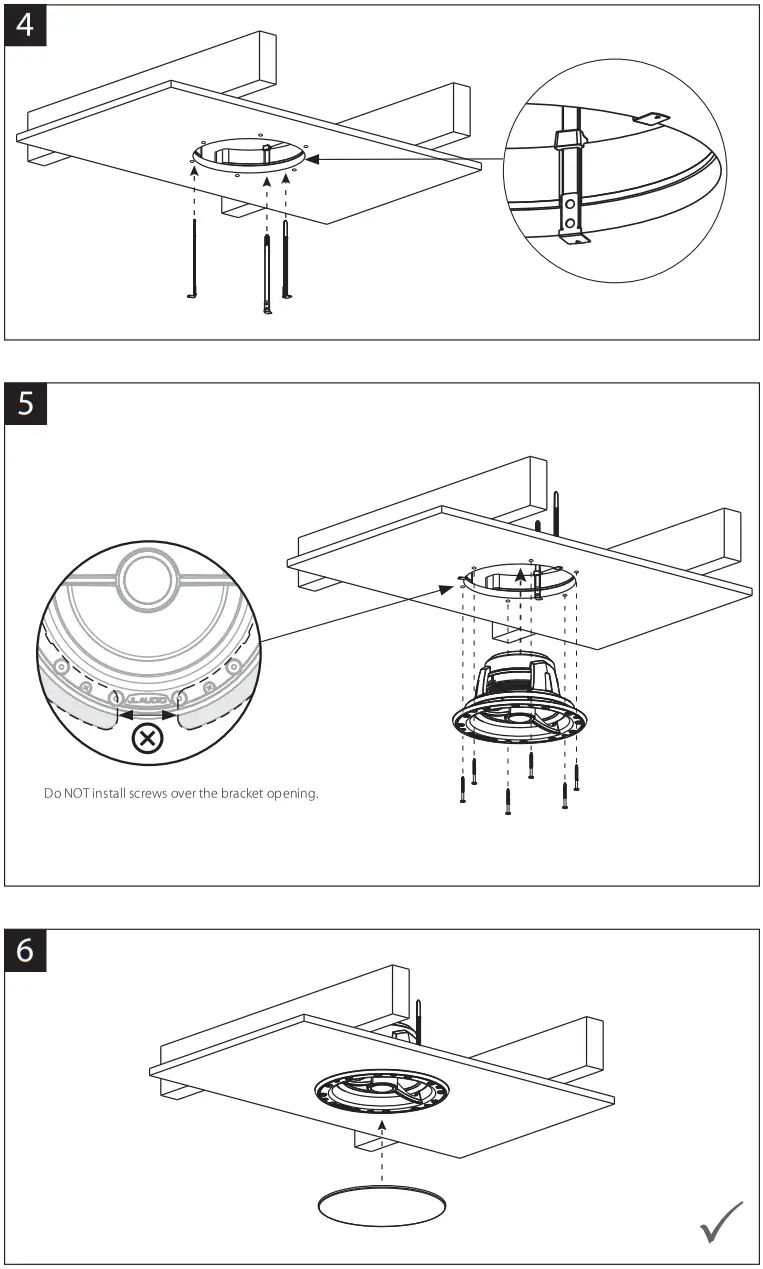

- Installation requires appropriate tools and safety equipment. Professional installation is recommended.
- This product is water-resistant. Do not submerge or subject to high-pressure water spray.

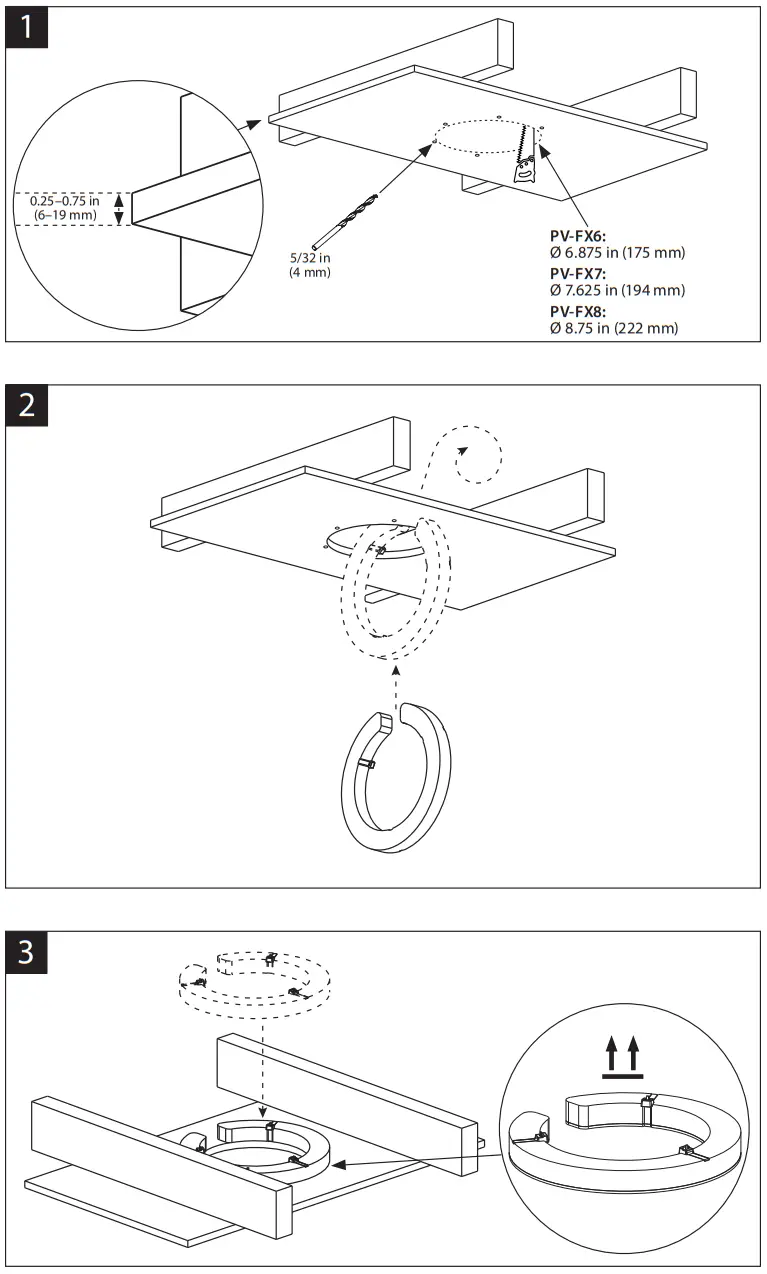

- Before cutting or drilling, check for potential obstacles behind mounting surfaces.
- Wash with mild soap and rinse with freshwater only.



PV-FX6_FX7_FX8_SKU#011576_091922
©2022 JL Audio, Inc.
