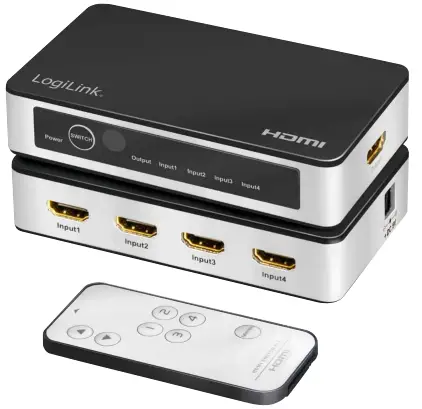

LogiLink HD0045 4K 4×1 HDMI Switch 4K-60 Hz User Manual
Designed for applications that require the routing of 4 sources to 1 compatible display device. It enables the reliable transmission at video resolutions up to 4K@60 Hz. Features auto and manual switching modes for selection; instantly switching for a smooth video transition between HDMI ports.
Package Contents
- 1x 4K 4×1 HDMI Switch
- 1x Remote control
- 1x Power Adapter 5 V/1 A
- 1x User Manual
Package Information
- Packing Dimension: 190x145x60 mm
- Packing Weight: 0.34 kg
- Carton Dimension: 505x235x340 mm
- Carton Q‘ty: 15 pcs
- Carton Weight: 5.6 kg
Features

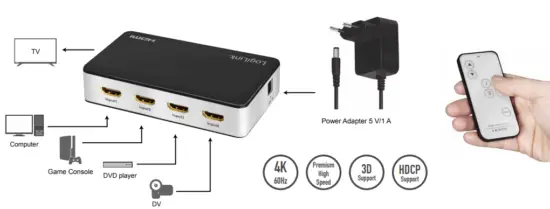

- Allows up to four HDMI sources to be connected to one HDMI display
- Supports manual switching, remote switching or automatic switching (Smart function)
- Resolution up to UHD 4K@60 Hz (YUV 4:4:4) and Full 3D
- Bandwidth: 6 Gbps/600 MHz per Channel (18 Gbps total)
- Supports HDCP 2.2
- Supports DDC, HDR and CEC
- Supports 12bit per channel (36bit all channels) deep color
- Supports compressed audio such as DTS, Dolby Digital
a. Power LED indicator
b. HDMI input switch button
c. IR signal receiver
d. HDMI output LED indicator
e. HDMI input 1-4 ports LED indicator DC 5 V input
f. DC 5 V input
g. HDMI input 1-4 ports
h. HDMI output port

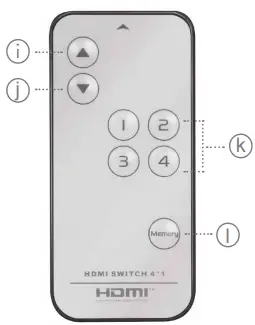

i. Select previous HDMI input source
j. Select next HDMI input source
k. Select HDMI input 1, 2, 3 or 4 Smart function – press “MEMORY” for HD0045 to remember the active input source, and select this input source port automatically when restarts.
Specifications
| Input Ports | 4x HDMI-A female, 1x DC jack for Power |
| Output Port | 1x HDMI-A female |
| HDMI Version | 2.0 |
| HDCP Version | 2.2 |
| HDMI CEC | Yes |
| HDMI HDR | Yes |
| Output Resolution | 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz, 4K@50/60 Hz |
| Video Bandwith | 6.0 Gbps/600 MHz |
| 3D Supporting | Yes |
| Input and output DDC signal | Yes |
| Chassis Material | ABS and aluminum |
| LED Indicator | Yes |
| IR Remote Support | Yes |
| Power Consumption | 5 W max. |
| Power Supply | 5 V/1 A |
| Uncompressed Audio | LPCM 7.1 |
| Compressed Audio | DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD |
| Operating Temperature | 0˚C–70˚C |
| Operating Humidity | 10%–85% RH (no condensation) |
| Storage Temperature | -10˚C–80˚C |
| Storage Humidity | 5%–90% RH (no condensation) |
| Dimensions | 11.8×6.5×2.6 cm |
| Weight | 0.113 kg |
Specification of External Power Supply
| Input Voltage | 100–240 V, 50/60 Hz 0.2 A max. |
| Output Power | 5 V/1 A, 5 W |
| DC Plug | 5.5×2.1 mm |
| Dimensions | 51x35x59 mm |
| Cable Length | 1.2 m |
| Weight | 0.07 kg |
The specifications and pictures are subject to change without prior notice.
All trade names referenced are the registered trademarks of their respective owners.
