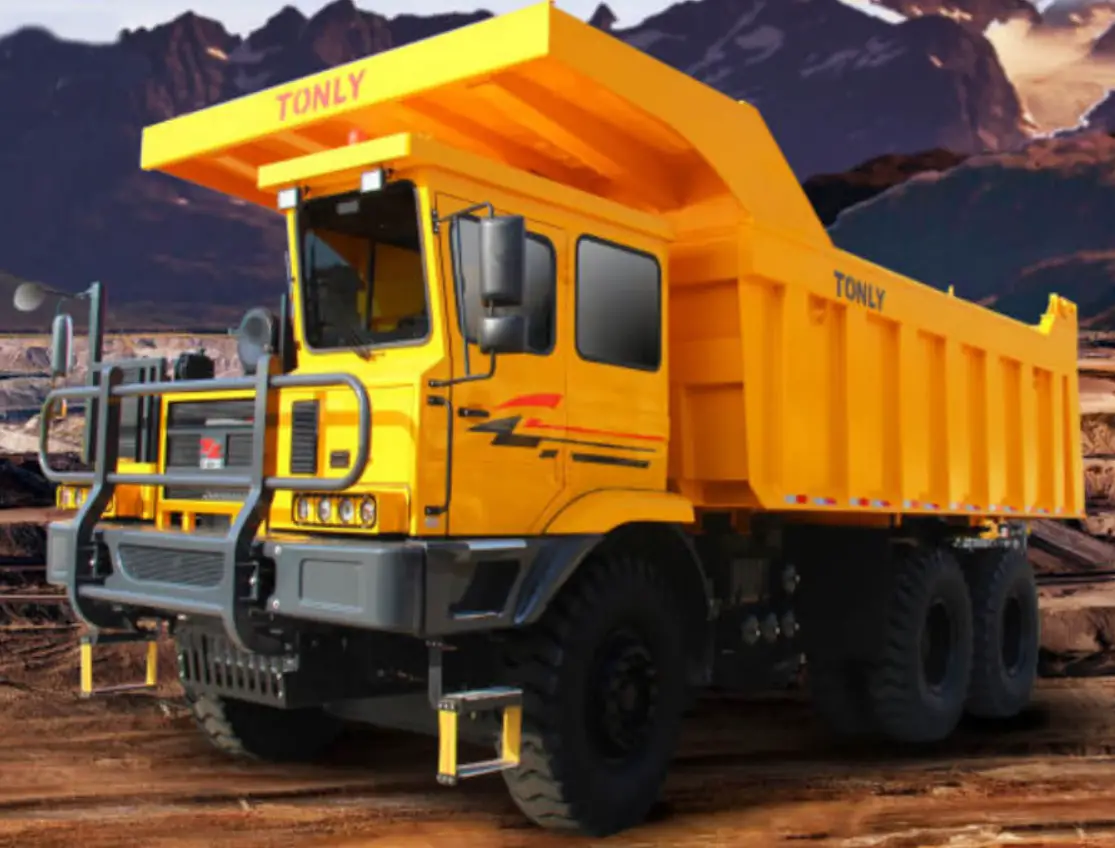

TONLY TL885 Off Road Dump Truck
Specifications
- PAYLOAD 70TON
- CARGO CAPACITY: 36 CBM(STANDARD)
- ENGINE: 530HP/390KW

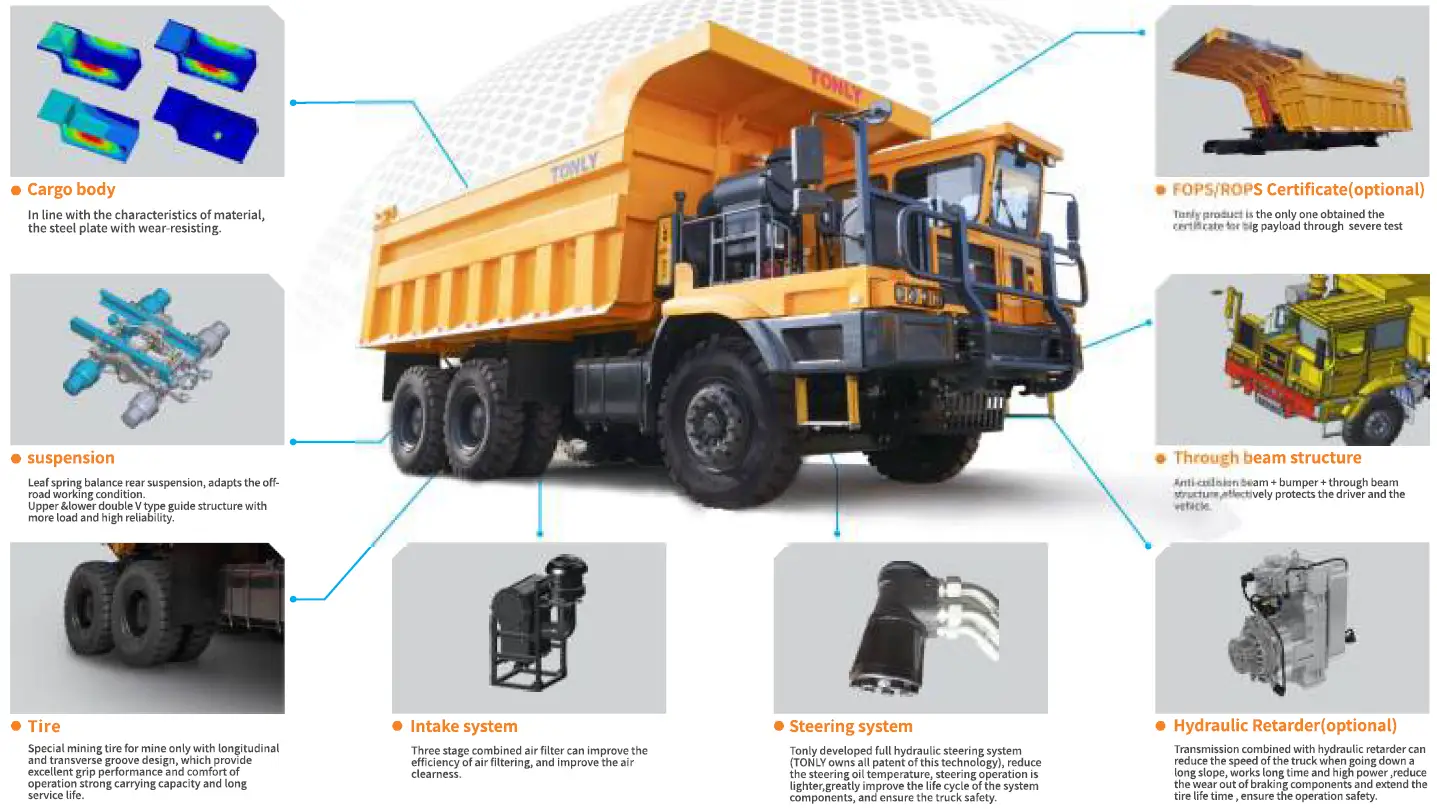

Configurations and Characteristics
Engine
WEICHAI (Tier Ill) engine with stable performance, reliable quality, fuel conservation and environment protection.
Axle Assembly
TONLYand HAN DE jointly design the special axle for mine transportation. Strengthened single casting axle housing, double reduction. Big torque ,high transmission efficiency and high reliability.
Transmission
Tonly joint design with Fast who is largest gear factory in the world, structure is simple and mature, special design gear distribution suitable for off-road usage.
Mainframe
High-strength steel plate is used for flexible chassis frame for mine, which has national patent. The impact abrasion is strong with long service life.
Lifting Device
HYVA hydraulic lifting system, strong lifting power, stable lifting performance.
Technical Parameter
| Complete technical parameter | |
| Model | TL885 |
| Brand | TONLY |
| Manufacturer | 5haanxi Tonly Heavy Industries Co.,Ltd. |
| Drive mode | 6X4 |
| GVW(t) | 105 |
| Rated loading capacity (t) | 70 |
| Kerb mass (t) | 35 |

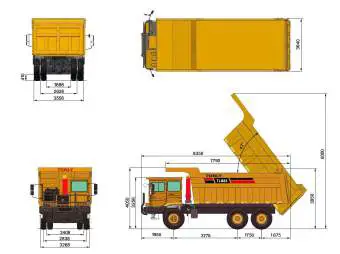

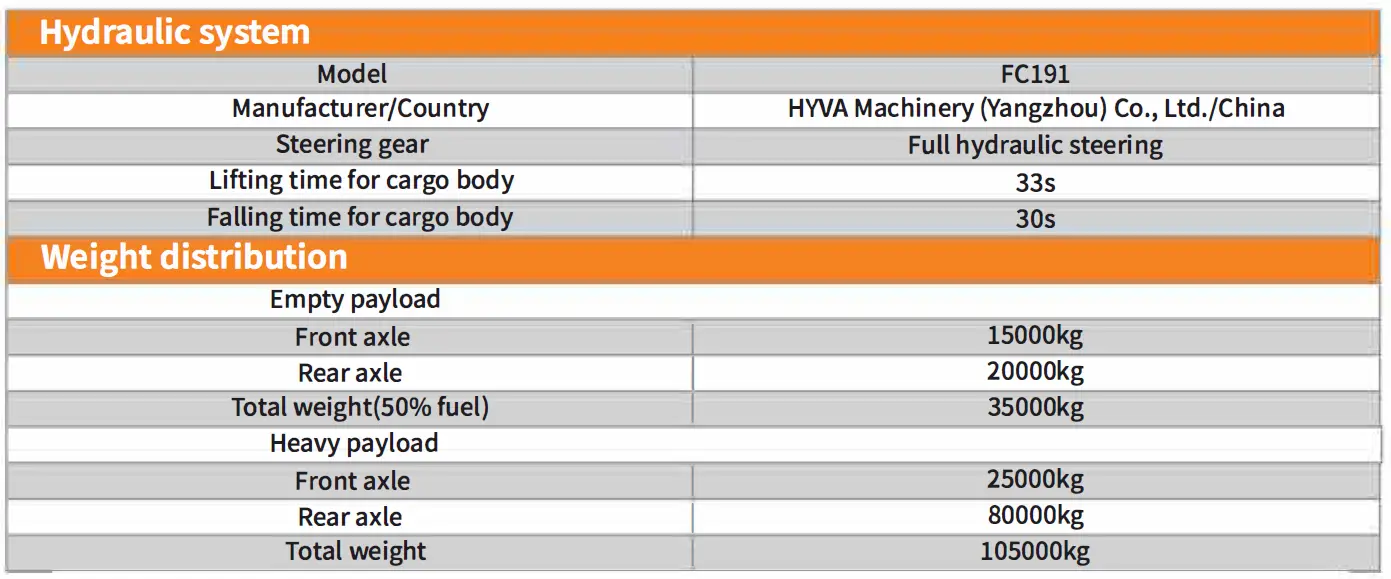

| Overall dimension | 9350x3640x4050mm |
| Minimum turning radius | llm |
| Wheelbase | 3775+1750mm |
| Wheel tread | 2838mm/2626mm |
| Minimum ground clearance | 400mm |
| Maximum height of lifting cargo body | 8300mm |
| Maximum angel of lifting cargo body | 47° |
| Loading height | 3950mm |
| Brake distance | <lSm (V=30km/h) |
| Maximum gradeability | 32% |
| Maximum speed | 45km/h |
| Model | WP13.530 (Euro Ill Emission) |
| Manufacturer/Country | Weichai Power Co., Ltd./ China |
| Total Horse power(HP/KW) | 530hp (390KW) |
| Model | 8DS240A |
| Gear | 8 forward 1 reverse |
| Manufacturer/Country | Shaanxi Fast Auto Drive Co., Ltd/ China |
| Model | 25t steering front axle, 2x40t drive middle and rear axle |
| Manufacturer/Country | Shaanxi Hande Axle Co., Ltd./China |
| Tire | |
| Tire Model | 16.00-25 |
| Rim size | 11.25/20-25 |
| Bottom plate material/ thickness | NM400/18mm |
| Rear plate material/ thickness | NM400/10mm |
| Front plate material/ thickness | T700/12mm |
| Side plate material/ thickness | T700/12mm |
| Loading volume | Struck 36m3 |
