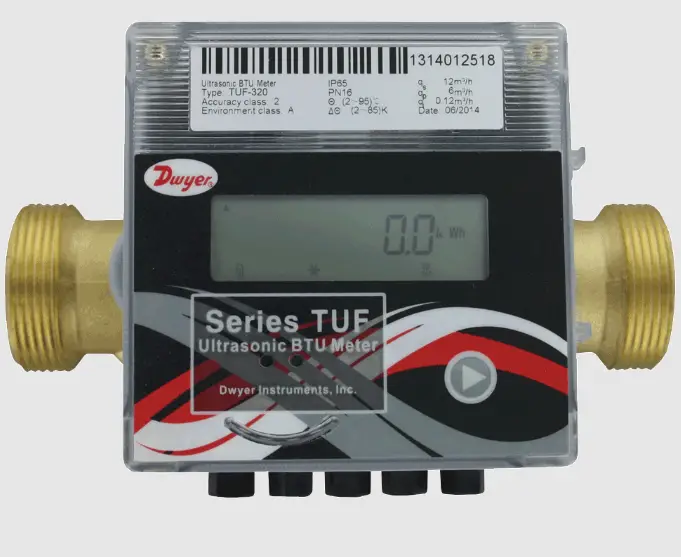

Dwyer Tuf Series Ultrasonic Energy Meters
Overview
The Series TUF Ultrasonic Energy Meters are highly accurate and stable energy meter that utilizes ultrasonic technology to measure heating and cooling energy consumption. The Series TUF is a compact meter with a flowmeter and energy calculator in one, making it great for installation on chillers and boilers.
BENEFITS/FEATURES
- Lower maintenance costs with local parameter display and no moving parts
- Seamless data transfer with serial communication output standard
- Eliminate the need for multiple units with a flow and temperature monitor in one
APPLICATIONS
- Heat metering
- Utility billing

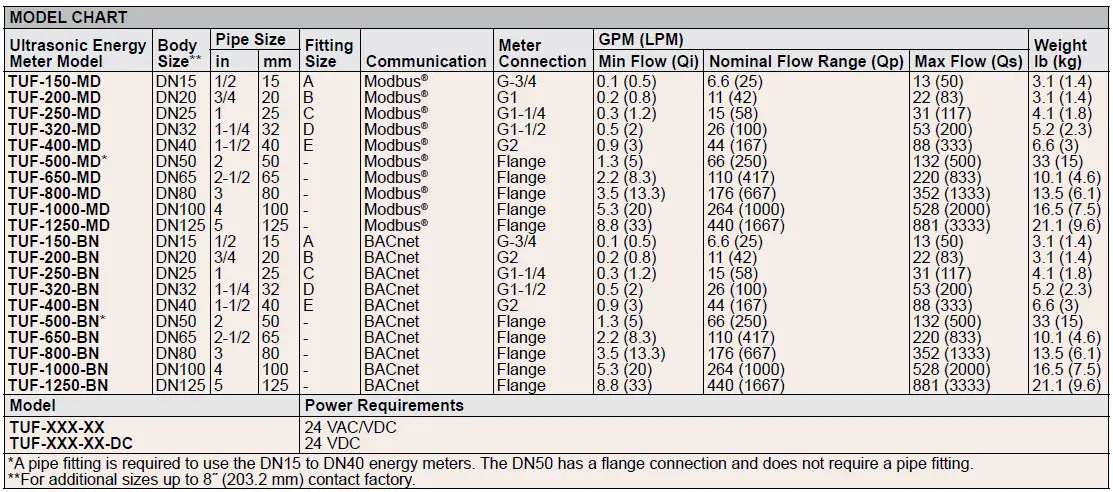

INSTRUCTIONS FOR ORDERING
- Choose 1 ultrasonic energy meter model (includes 2 BSPP pipe fittings, 2 tightening nuts, 2 O-rings, and 1 thermowell with welding collar)

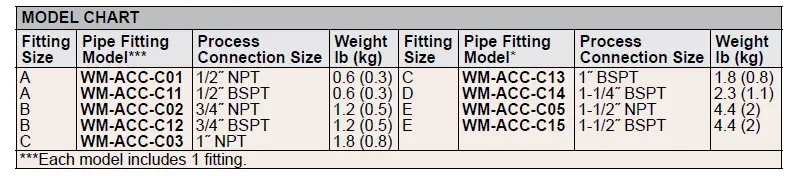

- Choose 1 pipe fitting model given the appropriate fitting size if NPT or BSPT
- connections are required (for DN15 to DN40 only)*
- Example: TUF-150-MD, Fitting Size: A, select pipe fitting Model WM-ACC-C01 or
WM-ACC-C11 - Note: Series TUF units are factory set for supply line installation. (Can be modified in the field via a communication protocol.)
- Tenant billing
- Monitoring of water heating or cooling: radiators, fan coils
USA: California Proposition 65
WARNING
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Modbus® is a registered trademark of Schneider Electric USA, Inc.
