Homematic IP Charger Ease
User Guide
This charger is specifically designed to charge the Ease HmIP 3 cell 11.1 V Lithium Ion Battery Pack.
TECHNICAL INFORMATION
Input
| Voltage | 100-240 V |
| Frequency | 50-60 Hz |
| Current | 0.8 A |
| Energy-efficiency | 78% bei 11,5 V Last im CV-Modus |

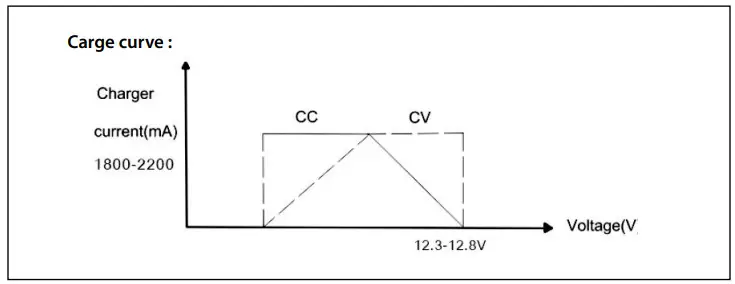

Output
| Nominal voltage | 12.6 V |
| Sustainability | 2000 mA |
| Connecting plug | ø3,5 x ø1,35 x 10 mm |
| Net weight | 0.23 kg |
CHARACTERISTICS/ ADVANTAGES
- 100-240 V AC input voltage for EU and UK
- Charging cable (5 m) for on-site charge/ Metal wire; 1185 18AWG

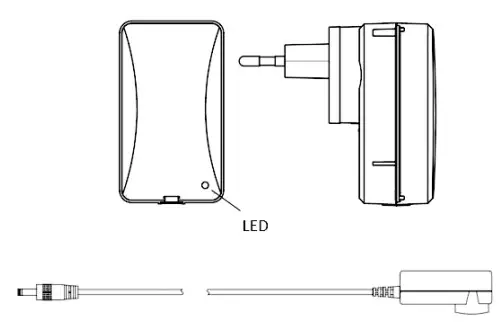

LED-charge status indicator:
- Green, if the charger is in the standby mode
- Red, if the charger is charging
- Red to green, if the charging process is finished (Charging current will be below 180 mA)
Safety cover:
- Overcurrent/ voltage protection
- Short circuit protection
Look:
- Short circuit protection
Power supply (black) with red/ green LED, charging cable (5 m)
CERTIFICATION AND TESTS
| EMS (ESD and Surge) | 2020EN55024; EN61000-(4-2/4-5); IEC801-2,3,4); EN61558; EN62368 |
| FCC Teil 15 Klasse B, EN55032, EN55014 | |
| EMV | EN55022; EN6100-3- (2/3); IEC801- (2/3/4) |
| Drop test | 2x from a height of 1.0 m (for every side: front/ behind/ left/ right) |
| Vibration-Test | 10-50-10 Hz with an amplitude of 0.35 mm in three vertical directions (for 20 minutes) |
| Field of application | Charger for an easy rechargeable HmIP-Li-ion battery. |

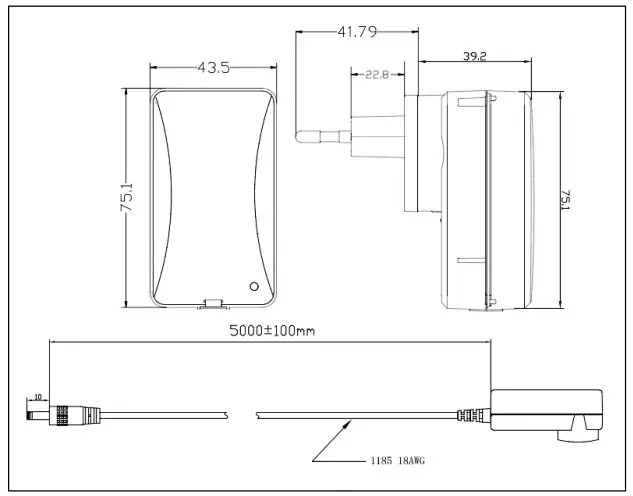

DIMENSIONS
WARNING AND USER INSTRUCTIONS
Usage only in dry indoor locations; risk of electric shock and fire.
Do not cut any wires.
Only charge suitable HmIP lithium-ion batteries from the Ease series.
Other chemicals and types of batteries can burst, causing personal injury and property damage.
Make your contribution to environmentally friendly recycling.
ENVIRONMENTAL CONDITIONS
Operating temperature -20° C bis +55° C
Operation (relative humidity) 20 % bis 85 %
Storage temperature -30° C bis +65° C
Storage (relative humidity) 85 % ± 1,2 %
