ANKARO ANK EZ II Ssafe Basic Electronic Safe User Manual
OPEN YOUR SAFE FOR THE FIRST TIME

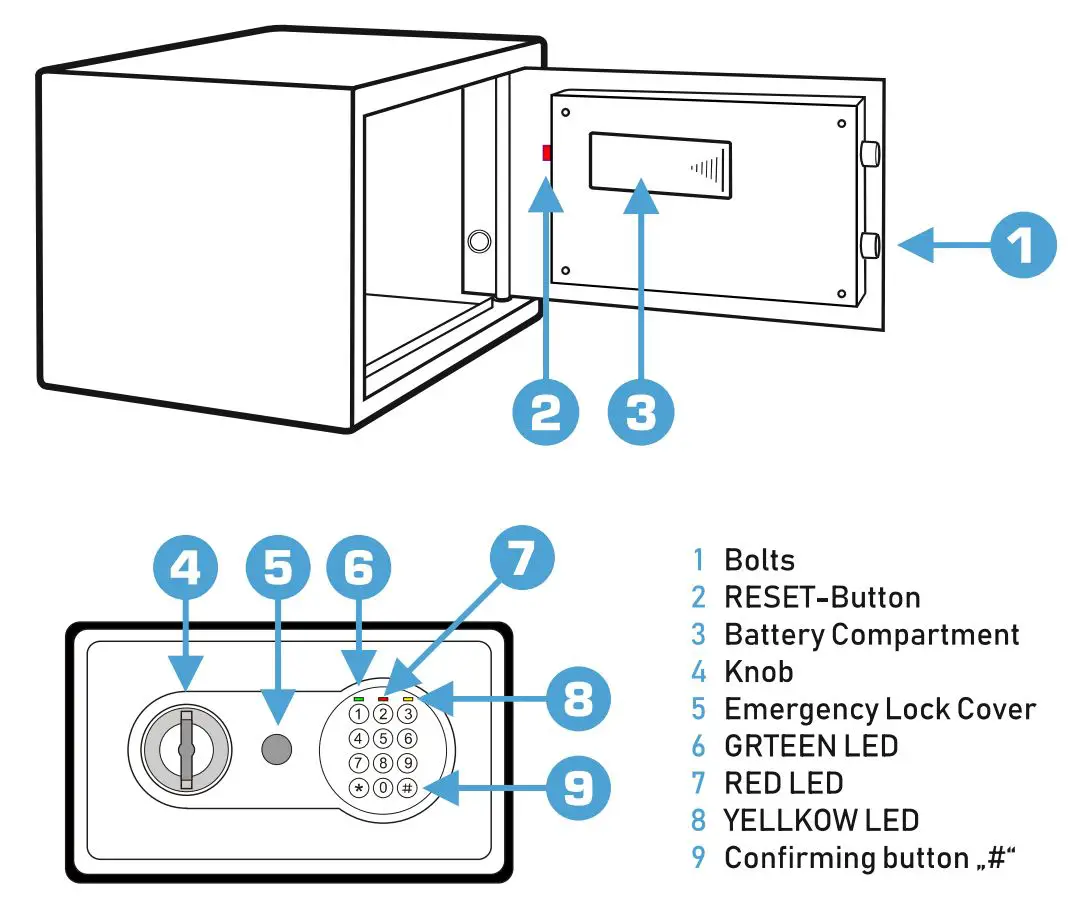

When commissioning please use the emergency key. Remove the protective cover (5) and insert the emergency key. Rotate the key clockwise. After commissioning, keep safe the emergency key on a safe place. In no case should you Keep the emergency key in the safe.
INSERTING THE BATTERIES
Open the safe door and place 4x AA batteries into the battery compartment (3). If the GREEN LED (6) and the RED LED (7) are lit at the same time, the voltage is too low. In this case, you have to replace the batteries with new ones. Please ALWAYS replace ALL 4 BATTERIES! Take care when you insert the batteries for
correct placement and polarity(+ and-). If the safe is left without power for more than 30 minutes, the PIN becomes automatically reset to factory settings.

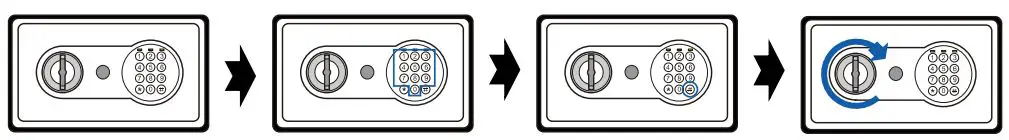

OPEN THE SAFE/ OPEN THE DOOR
Enter your PIN-NUMBER (3 to 8-digit). By pressing the buttons an acoustic tone sounds a the YELLOW LED (8) lights up. After entering the PIN NUMBER press the confirm button 11#11 (9) to confirm the PIN entry. The GREEN LED (6) confirms the correct one Input. Turn the door opener (4) clockwise to open the door.
CLOSING THE DOOR
Turn the knob (4) counter to the clockwise to the left to close the door.
AUTOMATIC LOCK
If you enter the PIN NUMBER incorrectly three times, a beep will sound (20 seconds). During this time, the keyboard is locked.
SETTING THE USER CODE PIN-NUMBER
Open the door of the safe and press once the RESET button (2) on the inside of the door (see drawing). The YELLOW LED (8) lights up. Now enter your new PIN number (3 to 8 digits) and confirm with the confirmation key 11#11 (9). The correct input is confirmed by the safe by 2 beeps. If the YELLOW LED (8) flashes and 3 beeps sound, the input must be repeated. The PIN was not accepted.
SETTING THE MASTER CODE PIN-NUMBER
Open the safe and input “0 11-Button twice and press reset button (2). You can input the setting PIN-Number when the YELLOW LED (8) light goes on. Input the new Master-PIN code (3-8 digits). Then press the confirmigbutton 11#11 (9) to confirm. It Will be confirmed by 2 beeps and the YELLOW LED (8) flashes
two times, then setting is done successfully. If the YELLOW LED (8) flashes three times, it means the new code is invalid and should operate again.

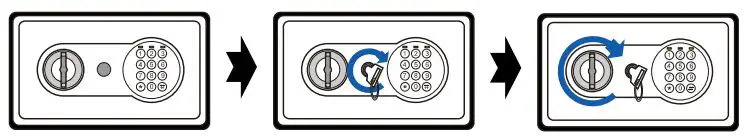

OPENING THE SAFE WITH THE EMERGENCY KEY
Use the emergency key to open the safe if you forget your PIN number or if the safe is not supplied with sufficient power (batteries are empty). Remove the cover in front of the emergency opening (5). Insert the emergency key into the lock and turn it to the right. Then turn the door opener (4) to the right to open the door.

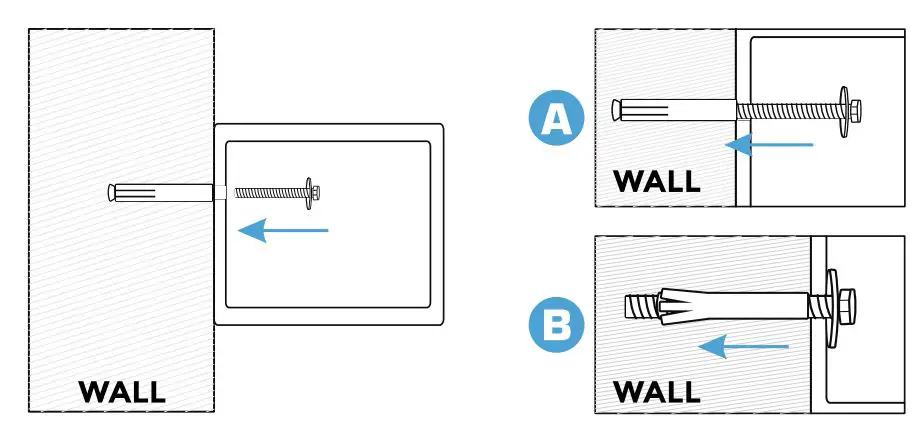

MOUNTING METHOD
Fix the safe in the place which is not easy to move.
- Drill holes for expansion bolts (or clamping screws) in the right place.
- Turn the expansion bolts counterclokwise to separate.
- Use the expansion bolts (or clamping screws) to secure the case to the wall.
- Make sure the case is mounted in place as required and then tighten all screws.
“CAUTION:
Use the expansion bolt when there is a concrete wall surface. Use the clamping screw when there is a wooden wall surface.
For any help, kindly consult the local distributor.
Producer:
ANKAROGmbH
HauptstraBe 6
D-14979 GroBbeeren
www.meinankaro.de
SAFETY NOTICE FOR TRESOR / SAFE
General
Read and keep the operating instructions
These operating instructions belong to this safe, hereinafter referred to as “safe” for short. It contains important information about safety, use, and care. Read the instruction manual carefully before using the safe. Pay particular attention to the safety instructions and warnings. Failure to follow the instructions in these operating instructions can result in serious injury or damage to the safe. If you pass the safe on to third parties, make sure to include these operating instructions. Keep these operating instructions in a safe place for future reference.
⚠ WARNING ⚠
Denotes a hazard which, if not avoided, can result in death or serious injury.
Safety instructions
- Be careful with the safe door, risk of trapping your fingers.
- Before drilling into the wall or floor, make sure that there are no power lines or pipes in it. If in doubt, contact an expert.
- Keep the keys out of the reach of children, risk of swallowing!
⚠ NOTE ⚠
Warning of property damage
Important instructions
- Never keep the emergency keys in the safe.
- For security reasons, no replacement keys are available !!!
Careful handling of batteries
- Batteries contain flammable materials. If used incorrectly, battery fluid can leak from the battery, become extremely hot, burst into flames or, under certain circumstances, explode. It can damage the device and cause injuries.
- It is essential to observe the following information:
- Keep batteries away from children! See a doctor immediately if a battery is swallowed.
- Check the battery and device contacts before inserting the batteries and clean them if necessary.
- Pay attention to the correct polarity when inserting the batteries.
- Conventional, non-rechargeable batteries must not be charged, risk of explosion!
- Batteries must not be short-circuited.
- Avoid contact of the battery fluid with skin, eyes and mucous membranes. In the event of contact, rinse the affected areas immediately with plenty of clean water and consult a doctor immediately.
- Batteries must not be dismantled or thrown into fire. Risk of explosion!
