ATEN CV10KM USB to PS-2 Converter I
USB to PS/2 Converter
CV10KM

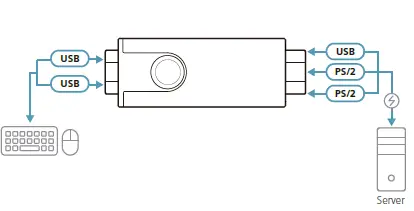

The CV10KM is a USB to PS/2 signal converter that converts USB keyboard and mouse signals into PS/2 signals. When installed with the KE / CN / RCM series products, it eliminates the high cost with replacing KVM switches. With the compact and bus-powered design, the CV10KM fits perfectly into most of the PS/2 computers.
Features
- Converts USB keyboard and mouse signals into PS/2 signals
- Compatible with all KE / CN / RCM series transmitters
- USB 2.0 compliant
- Embeds pushbutton for firmware upgrade
- Multiplatform support – Windows and Linux
- Bus Powered (via the USB and PS/2 cables)
- Plug and play
Specifications
| Keyboard | 1 x PS/2 6-pin Mini-DIN Male (Purple) 1 x USB Type-A Female (Purple) |
| Mouse | 1 x PS/2 6-pin Mini-DIN Male (Green) 1 x USB Type-A Female (Green) |
| Power (Optional) | 1 x USB Type-A Male (Black) |
| Cable Length | 80 cm |
| Reset Button | 1 x Pushbutton |
| Platforms | Windows / Linux |
| USB Specification | USB 1.1 – 2.0 (Full speed & Low speed) |
| Power Mode | Bus Powered (via the USB and PS/2 cables) |
| Housing | Plastic |
| Weight | 0.11 kg |
| Dimensions (L x W x H) | 8.45 x 3.40 x 2.21 cm |
