Glideaway Tfqk-6 And Tfqk-6g Steel Bed Frames User Guide

TFQK-6 and TFQK-6G Steel Bed Frames
User Guide

TWIN/FULL/QUEEN

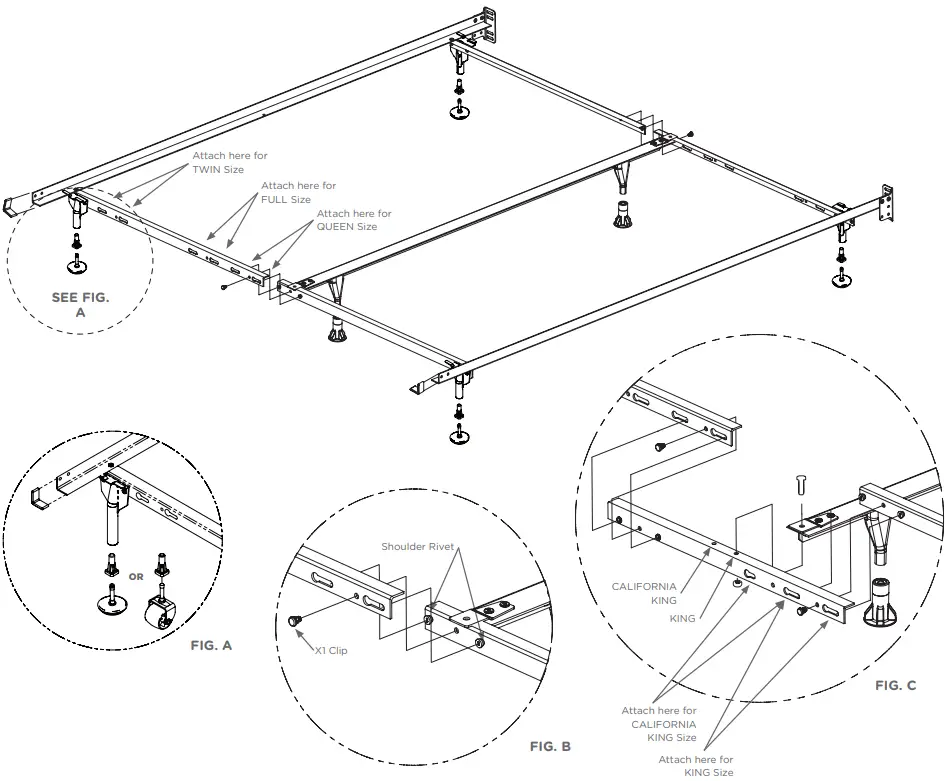

1. Swing out cross arms on all corners of the bed frame.
2. Install glides to the bottom of all outside legs. (See Fig. A) Install glides to the bottom of the center support legs.
3. Find the keyhole slots that correspond to the bed size you need. Engage rivets into keyhole slots and use a plastic fastener to secure cross arms into position. (See Fig. B)
4. Place center support in the center of a bed frame into a head-to-toe position.

KING / CALIFORNIA KING

1. Swing out cross arms on all corners of the bed frame.
2. Install glides to the bottom of all outside legs. (See Fig. A) Install glides to the bottom of the center support legs.
3. Find the keyhole slots that correspond to the bed size you need. Connect the extension bar to the main frame assembly using the keyhole slots corresponding to the size you are needing. Engage rivets into keyhole slots and use a plastic fastener to secure them into position. (See Fig. C)
4. Place center support in the center of the bed frame in a head-to-toe position. Use slicing to secure into position.

To learn more about your product or its warranty, call 855.581.3095 or visit us online at glideaway.com.

8226 LACKLAND RD. ST.
LOUIS, MO 63114
GLIDEAWAY.COM
800.428.5222
08.23.21
