Date: 04.07.2021 > 1
QUICK REFERENCE GUIDE > CE244DTB1

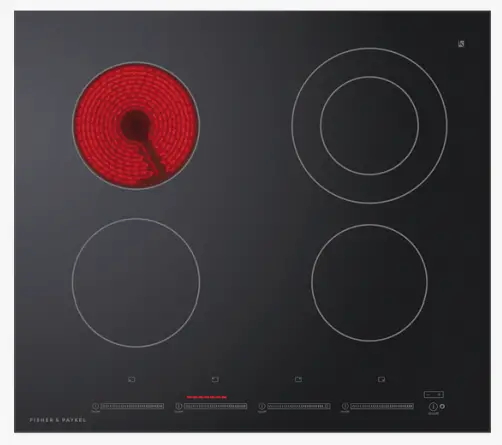

Electric Cooktop, 24″
Series 5 | Minimal
Black Glass
Space saving in your kitchen while keeping a generous four heating elements for cooking multiple dishes at once.
- Cooking flexibility with four cooking zones including a dual element
- Automatic spill detection shuts off elements if pans overflow
- Touch&Slide controls easily control each cook zone
- Easy to clean flat ceramic surface
DIMENSIONS
Height 4 1/2 “
Width 23 5/8 “
Depth 20 7/8 “
FEATURES & BENEFITS
Fast response
Fisher & Paykel electric cooktops feature powerful ribbon elements that heat up quickly and maintain an even temperature. AutoHeat mode boosts power and then automatically adjusts to your chosen setting for faster cooking.
Precise control
The cooktop touch controls are easy to use, responsive and accurate across a range of cooking temperatures from a rapid boil to a slow simmer. The timer function can be used as a simple minute minder.
Easy to clean
A flat ceramic glass profile makes cleaning the cooktop fast and simple. Cooktop elements automatically shut down when a spill is detected, minimizing baked-on grime.
Safety cut-off
<>
Sized to suit
These electric cooktops come in a range of sizes to suit every kitchen design. Because they’re perfectly flat and cool down fast, they can be used as an extension to your preparation surface when switched off.
Complementary design
These cooktops are designed to match the Fisher & Paykel family of appliances, with a stylish frameless design and sleek ceramic glass surface.
Superior efficiency
Made from recyclable ceramic glass, without arsenic or heavy metals used in the manufacturing process. Direct contact between the cookware and cooktop retains heat, so less energy is used during cooking than when using gas.
SPECIFICATIONS
Cleaning
Flat easy clean glass surface •
Controls
Minute timer •
Touch and slide controls •
Performance
Auto rapid heat •
Dual zones •
Gentle heat •
Hi-light high speed ribbon •
Power requirements
Amperage 26A
Supply frequency 60Hz
Supply voltage 240/208V
Product dimensions
Depth 20 7/8 “
Height 4 1/2 “
Width 23 5/8 “
Safety
Keylock •
Safety time out •
Spillage auto off •
Surface hot indicators •
Temperature limiters •
Warranty
Parts and labor 2 years
Zone ratings
Left front 1500W
Left rear 1500W
Right front 1200W
Right rear 2000/1000W
Zones
Cooking zones 4 including 1 dual zone
SKU 81957
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User Guide Service & Warranty Booklet Installation Guide Resources (pdf)
