Electric Cooktop, 30”
Series 5 | Minimal
Black Glass
QUICK REFERENCE GUIDE > CE304DTB1

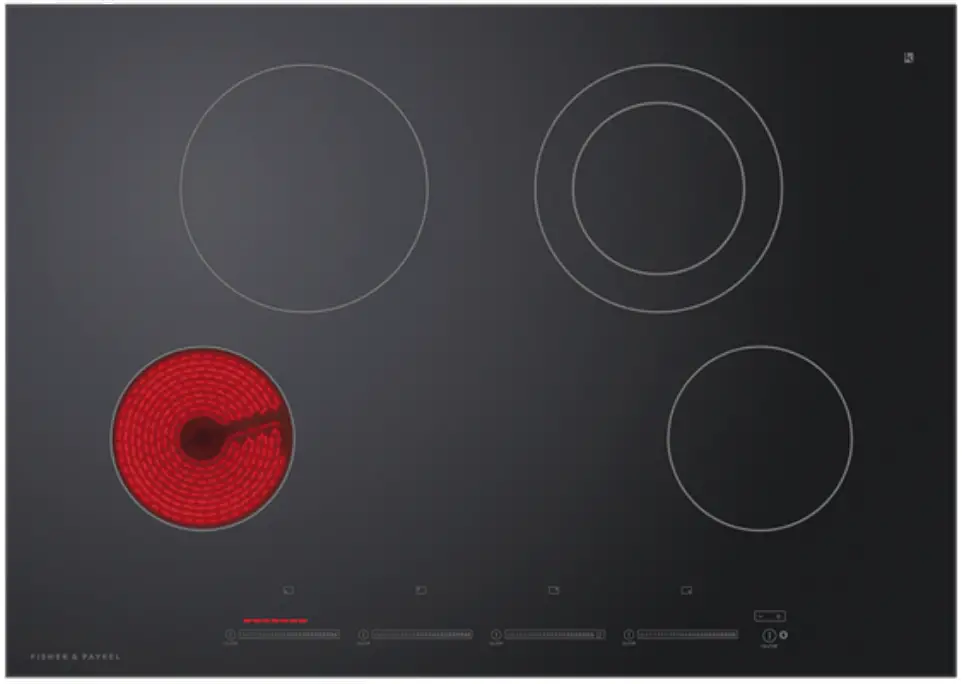

CE304DTB1 Electric Cooktop 30 Inch
With an easy-to-clean ceramic surface and plenty of room across four heating zones.
- Cooking flexibility with four spacious cooking zones, including two dual elements.
- Automatic spill detection shuts off elements if pans overflow
- Touch&Slide controls easily control each cook zone
- Easy to clean flat ceramic surface
DIMENSIONS
| Height | 4 1/2″ |
| Width | 29 1/2″ |
| Depth | 20 7/8″ |
FEATURES & BENEFITS
FAST RESPONSE
Fisher & Paykel electric cooktops feature powerful ribbon elements that heat up quickly and maintain an even temperature. AutoHeat mode boosts power and then automatically adjusts to your chosen setting for faster cooking.
PRECISE CONTROL
The cooktop touch controls are easy to use, responsive and accurate across a range of cooking temperatures – from a rapid boil to a slow simmer. The timer function can be used as a simple minute minder.
EASY TO CLEAN
A flat ceramic glass profile makes cleaning the cooktop fast and simple. Cooktop elements automatically shut down when a spill is detected, minimizing baked-on grime.
SAFETY CUT-OFF
Spill detection technology automatically shuts off hot elements when pots or pans overflow onto the controls, preventing ruined meals.
SIZED TO SUIT
These electric cooktops come in a range of sizes to suit every kitchen design. Because they’re perfectly flat and cool down fast, they can be used as an extension to your preparation surface when switched off.
COMPLEMENTARY DESIGN
These cooktops are designed to match the Fisher & Paykel family of appliances, with a stylish frameless design and sleek ceramic glass surface.
SUPERIOR EFFICIENCY
Made from recyclable ceramic glass, without arsenic or heavy metals used in the manufacturing process. Direct contact between the cookware and cooktop retains heat, so less energy is used during cooking than when using gas.
SPECIFICATIONS
| Cleaning | |
| Flat easy clean glass surface | • |
| Controls | |
| Auto cut-off timer for each | • |
| Minute timer | • |
| Touch and slide controls | • |
| Performance | |
| Auto rapid heat | • |
| Dual element | • |
| Dual zones | • |
| Gentle heat | • |
| Hi-light high speed ribbon | • |
| Power requirements | |
| Amperage | 27A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 20 7/8″ |
| Height | 4 1/2″ |
| Width | 29 1/2″ |
| Safety | |
| Keylock | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
| Temperature limiters | • |
| Zones | |
| Number of elements | 4 |
| SKU | 81956 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
