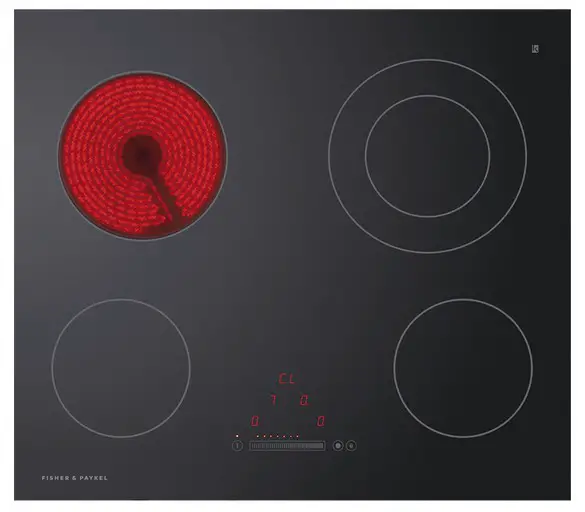

QUICK REFERENCE GUIDE > CE604DTB1
Electric Cooktop, 60cm
Series 5 | Contemporary Black Glass
Date: 14.07.2022 > 2
Space saving in your kitchen while keeping a generous four heating elements for cooking multiple dishes at once.
- Four cooking zones including a dual element
- Automatic spill detection shuts off elements if pans overflow
- Touch & Slide controls easily control each cook zone

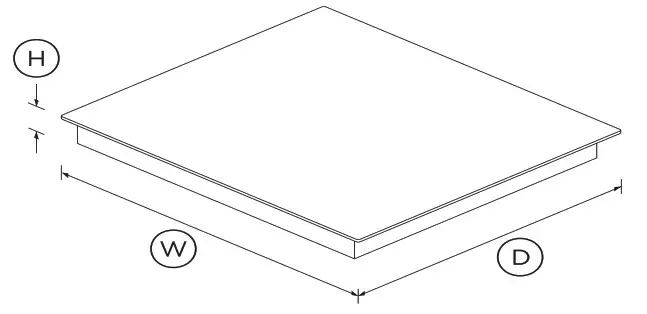

DIMENSIONS
| Height | 58mm |
| Width | 600mm |
| Depth | 530mm |
FEATURES & BENEFITS
Fast response
Fisher & Paykel electric cooktops feature powerful ribbon elements that heat up quickly and maintain an even temperature. AutoHeat mode boosts power and then automatically adjusts to your chosen setting for faster cooking.
Precise control
The cooktop touch controls are easy to use, responsive and accurate across a range of cooking temperatures from a rapid boil to a slow simmer. The timer function can be used as a simple minute minder or to activate any combination of elements.
Easy cleaning
Fisher & Paykel electric cooktops have a completely flat ceramic glass profile which makes cleaning up a breeze. Cooktop elements automatically shut down when a spill is detected, minimising baked-on grime.
Safety cut-off
Spill detection technology built into the control panel keeps your home safe and prevents ruined meals by automatically shutting off hot elements when pots or pans overflow onto the controls.
Complementary design
The electric ceramic series is designed to match the rest of Fisher & Paykel’s kitchen appliance family, with a stylish frameless design, sleek ceramic glass surface and intuitive controls.
Sized to suit
Fisher & Paykel electric cooktops come in a range of sizes to suit every kind of kitchen. Because they’re perfectly flat and cool down fast, they can be used as an extension of your preparation surface when they’re switched off.
SPECIFICATIONS
| Cleaning | |
| Flat easy clean glass surface | • |
| Controls | |
| Minute timer | • |
| Touch and slide controls | • |
| Performance | |
| Auto heat reduce | • |
| Dual colour display | • |
| Hi-light high speed ribbon | • |
| Power requirements | |
| Amperage | 28A |
| Supply voltage | 230 – 240V |
| Product dimensions | |
| Depth | 530mm |
| Height | 58mm |
| Width | 600mm |
| Safety | |
| Keylock | • |
| Safety time out | • |
| Spillage auto off | • |
| Temperature limiters | • |
| Warranty | |
| Parts and labour | 2 years |
| Zone ratings | |
| Left front | 1200W |
| Left rear | 1800W |
| Right front | 1200W |
| Right rear | 2200W/750W |
| Zones | |
| Number of elements | 4 |
| SKU | 81343 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
