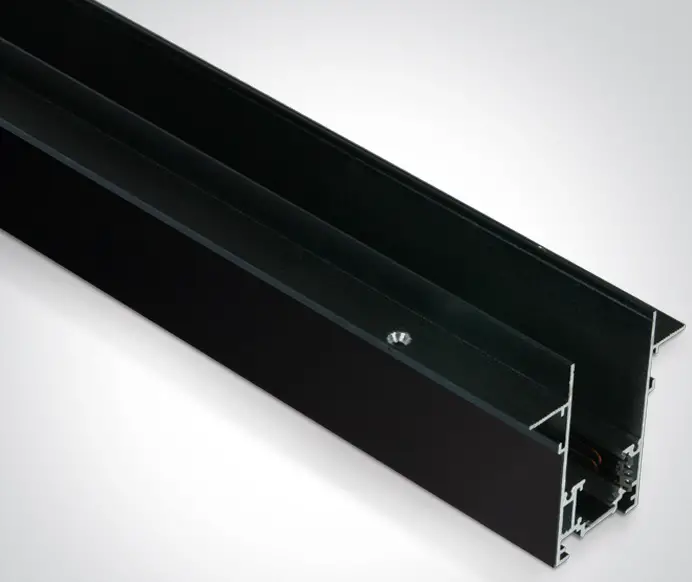

One Light 42001tr 1m Recessed Track Installation Guide

one LIGHT 42001TR 1M Recessed Track Installation Guide

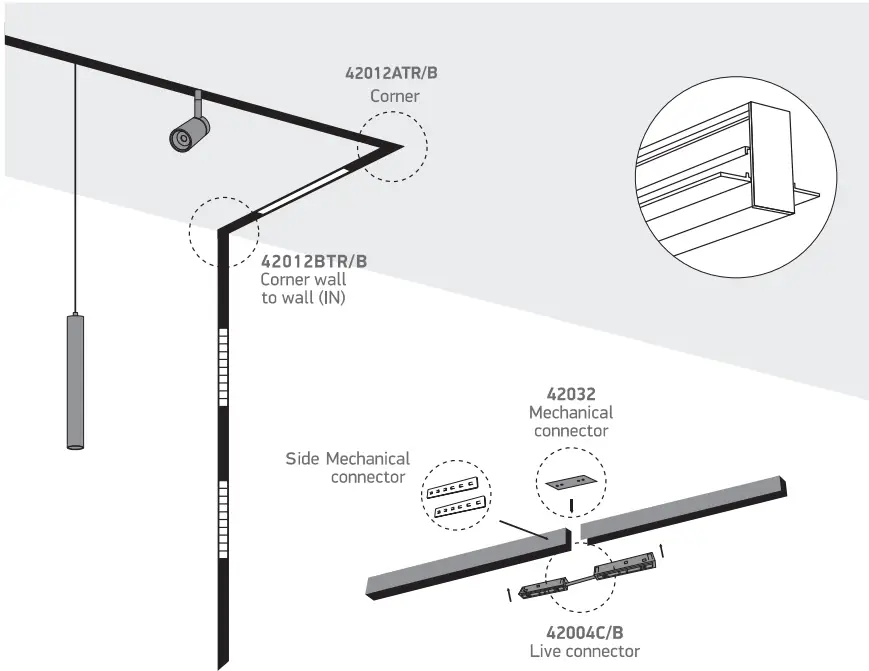

INSTALLATION INSTRUCTION

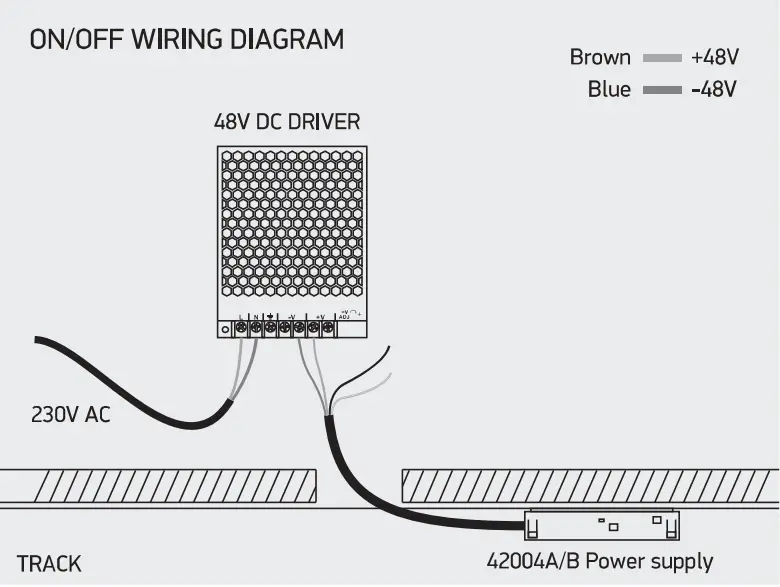

WIRING DIAGRAM

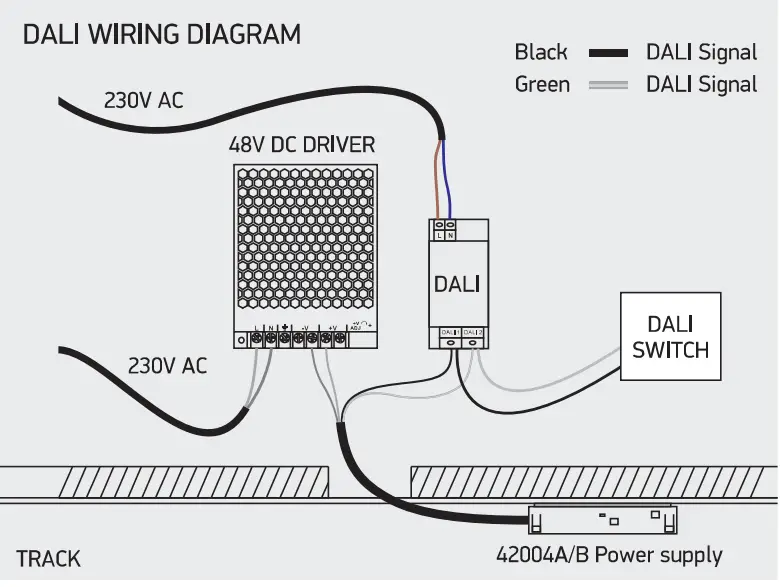

DALI WIRING DIAGRAM

Warnings:

1. Make sure that the product is installed properly before connecting to electricity.
2. Do not cover the fitting.
3. Maintenance and installation should only be carried out by a professional electrician.

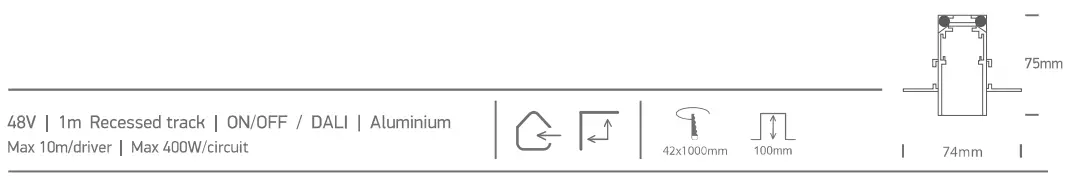

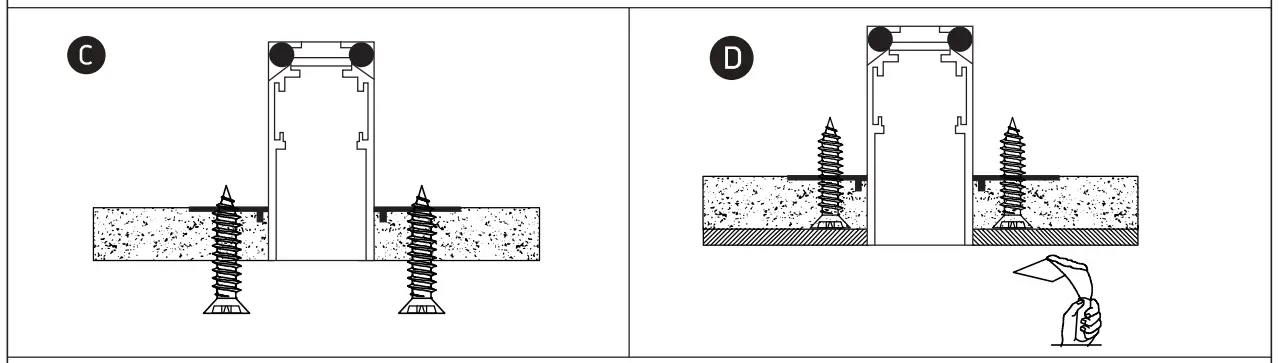

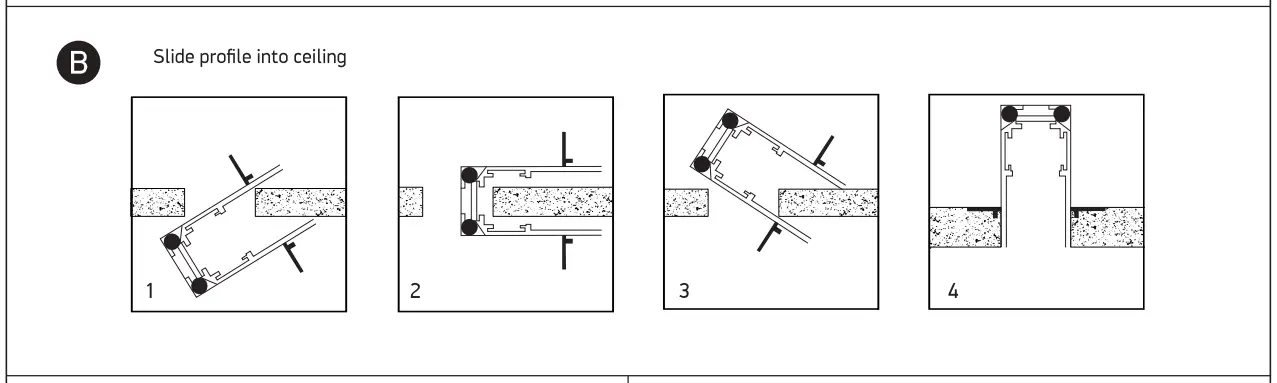

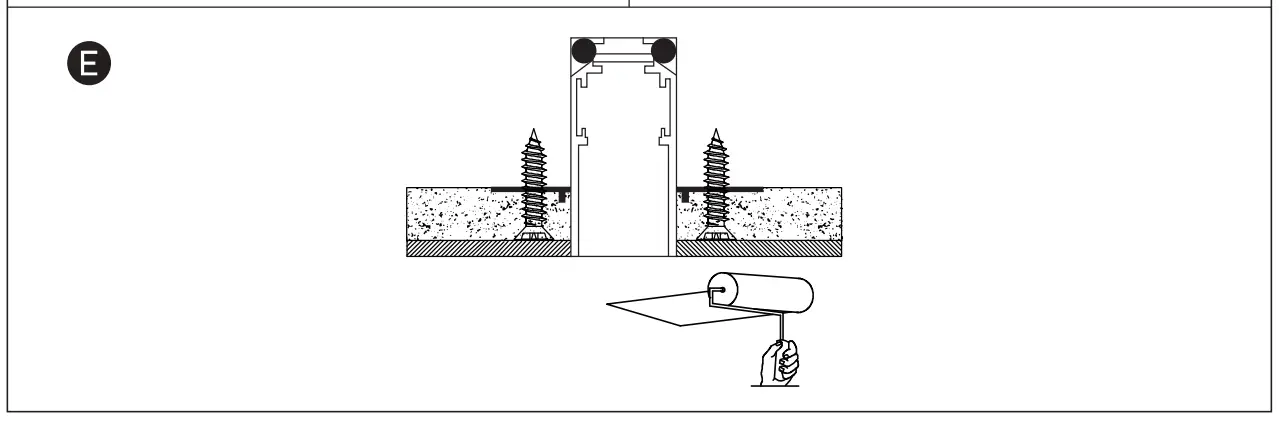

ASSEMBLY INSTRUCTION

Warnings:

1. Make sure that the product is installed properly before connecting to electricity.
2. Do not cover the fitting.
3. Maintenance and installation should only be carried out by a professional electrician.
