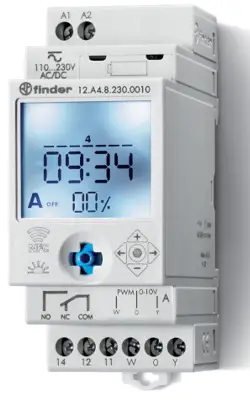

12 Series Digital Time Switches
User Manual
12 Series Digital Time Switches
12.61/62 DIGITAL TIME SWITCH DAILY/ WEEKLY PROGRAMMING
Programmable with NFC technology with the App FINDER TOOLBOX downloaded from Google Play™ – Apple Store.

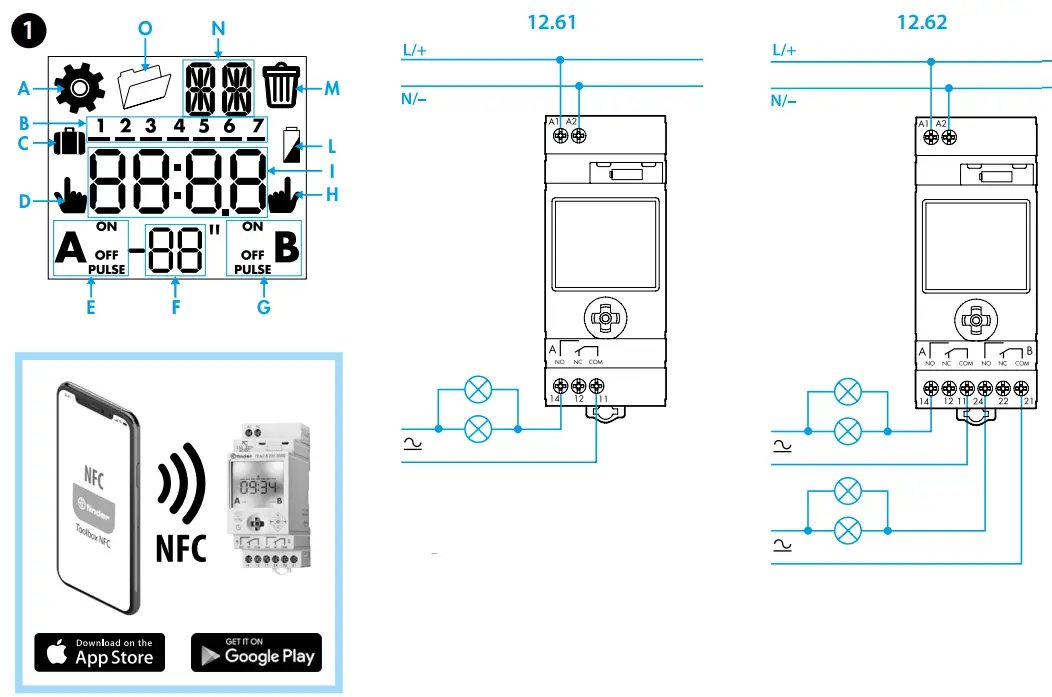

- DISPLAY INDICATORS
A Setting Menu
B Days of the week (1=Mon…7=Sun)
C Holiday program
D Permanent Manual over-ride activated – channel A
E Channel A functions (ON, OFF, Pulse)
F Day – seconds/minutes
G Channel B functions (ON, OFF, Pulse) (12.62 only)
H Permanent Manual over-ride activated – channel B (12.62 only)
I Time, day, month, hours, minutes, daylight saving ON/OFF, holiday program (Start: day/month. Finish: day/month) PIN ON/OFF, End
L Time switch without power supply (powered by battery) – Low battery (with power supply)
M Cancel
N Program number (max 50) – Y(year), D(day), M(month), H(hour),
M(minutes), Daylight saving ON/OFF (EU=Europe − BR=Brazil −
AU=Australia) Holiday program (Start: day/month. Finish: day/month)

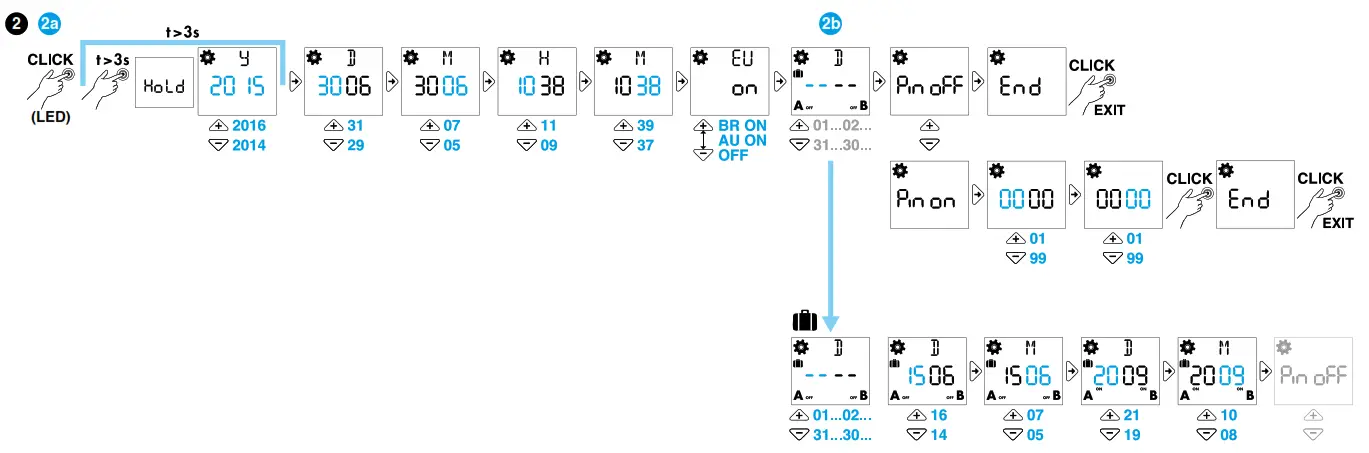

O Programming - SETTINGS (examples)
2a Setting: year, day, month, hour, minutes, EU (daylight saving)
2b Holiday program (Start: day/month. Finish: day/month), PIN, END - PROGRAMMING (examples)

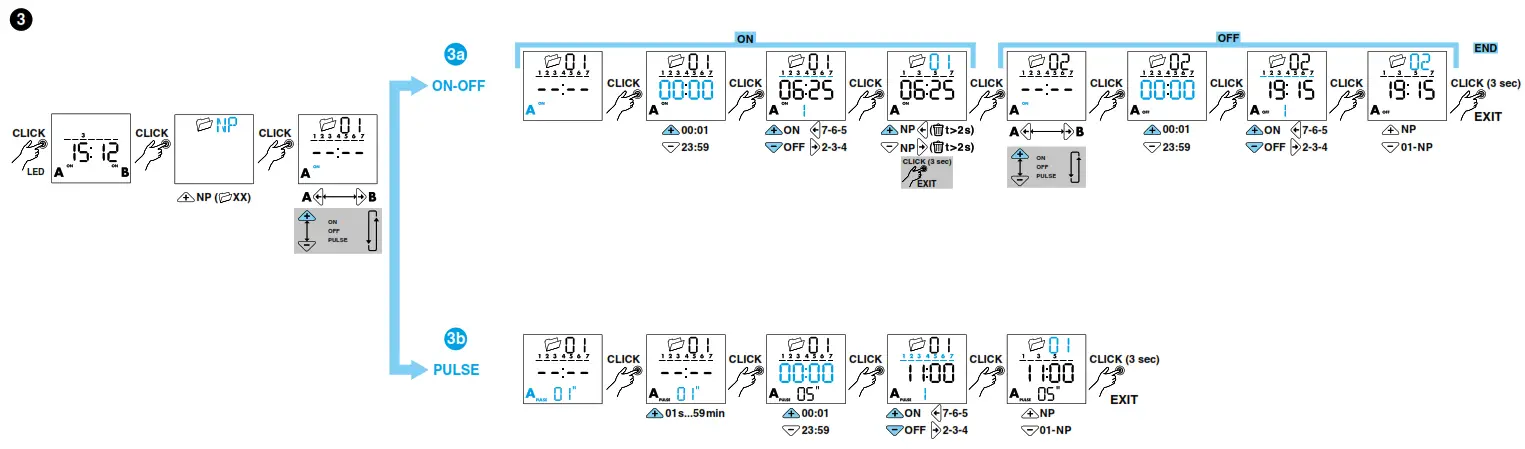

3a ON – OFF Function (6:25 ON – 19:15 OFF, Mon, Wed, Fri, Sun)

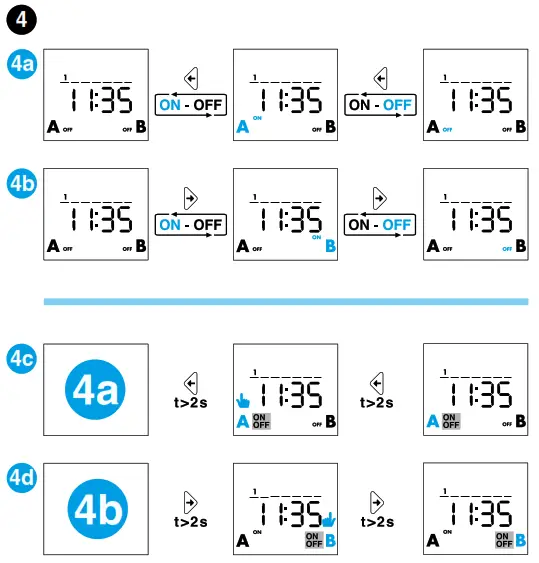

3b PULSE function (11:00 pulse 5 s, Mon Wed Fri) - MANUAL MODE
4a Manual ON/OFF channel A
4b Manual ON/OFF channel B (12.62 only)
4c Permanent Manual over-ride ON/OFF – Channel A
4d Permanent Manual over-ride ON/OFF – Channel B (12.62 only) - DELETION of all program
- DELETION of single program
NOTE

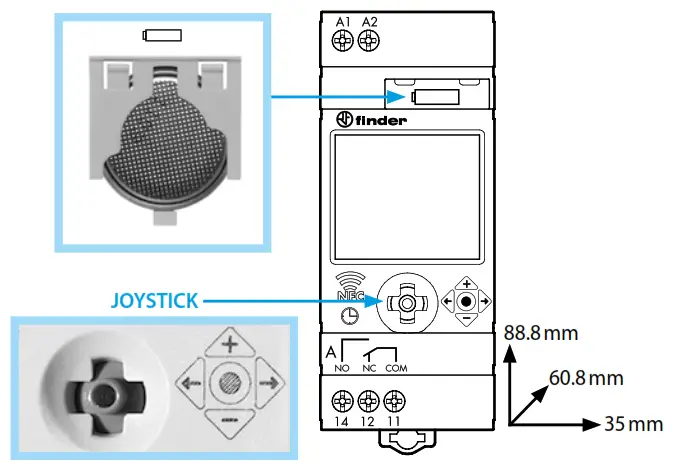

- Battery replacement: BATTERY CR 2032 (LiMnO2) 3V, 230mAh. Complies with Article 11, EU directive 2006/66/CE. Dispose of batteries according to local regulations
- Back-light display (only with power supply)
- Minimum switching interval: 1 second (pulse function)
| EN 60669-1 / EN 60669-2-1 | |||
 | 12.6x.8.230.0000 | ||
| UN 110…230 V AC (50/60 Hz) / DC | |||
| Umin – Umax 88 V – 253 V (AC/DC) | |||
| P 2.8 VA (50 Hz) / 0.9 W | |||
| 12.61.0.024.0000 | |||
| UN 12…24 V AC (50/60 Hz) / DC | |||
| Umin – Umax 10 V – 30 V (AC/DC) | |||
| P 2.2 VA / 1.2 W | |||
 | 1 CO (SPDT) (12.61) | ||
| 2 CO (DPDT) (12.62) | |||
| 16 A 250 V AC | |||
| AC1 4000 VA | |||
| AC15 (230 V AC) 750 VA | |||
 | (230 V) | 2000 W | |
| (230 V) | 750 W | ||
| CFL-LED | (230 V) | 400 W | |
 | (–20…+50)°C | ||
| IP20 | |||
- Operating Control, Independently mounted
- Panel mounting, Type 1 Action
- Pollution Degree 2, Impulse Voltage 4000 V (800 V for 12…24 V models)
- Terminals nominal torque: 0.8 Nm
- The battery can be replaced only by the manufacturer or competent personnel
- The device can be installed and configured only by the installer or a qualified installer
NP: NEW PROGRAM

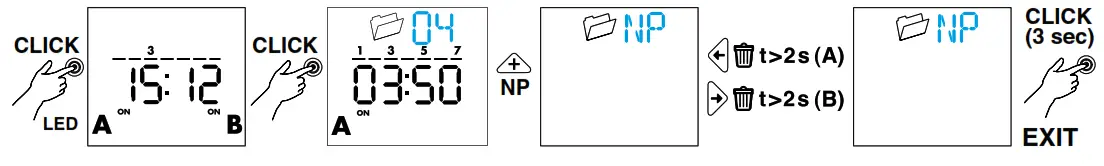

DELETION OF ALL PROGRAM

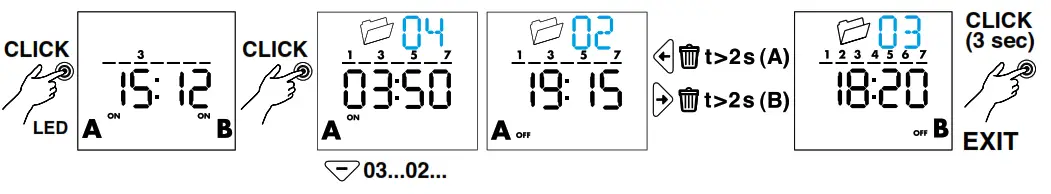

DELETION OF SINGLE PROGRAM
Utility Model – IB1261VXXG – 03/22
Finder S.p.A. con unico socio
10040 ALMESE (TO) – ITALY
