BELMONT TABLE
ASSEMBLY INSTRUCTIONS AND USER GUIDE
BULB TYPES
2X BT-15 72W (120V) HALOGEN OR LED
OR
2X A19 9.5W (120V) LED
LENGTH OF CORD SUPPLIED
9FT (274CM)
CARE INSTRUCTIONS
TO REMOVE DUST AND SMALL DEBRIS: CLEAN WITH A SOFT HAIRBRUSH OR USE A VACUUM.
TO REMOVE OTHER SUBSTANCES: USE A DAMP CLOTH AND IF NEEDED A MILD DETERGENT.
AVOID AMMONIA-BASED CLEANERS

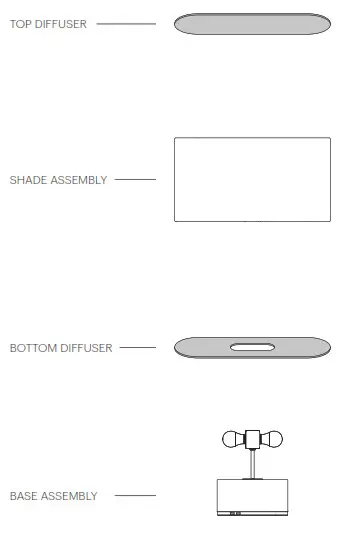

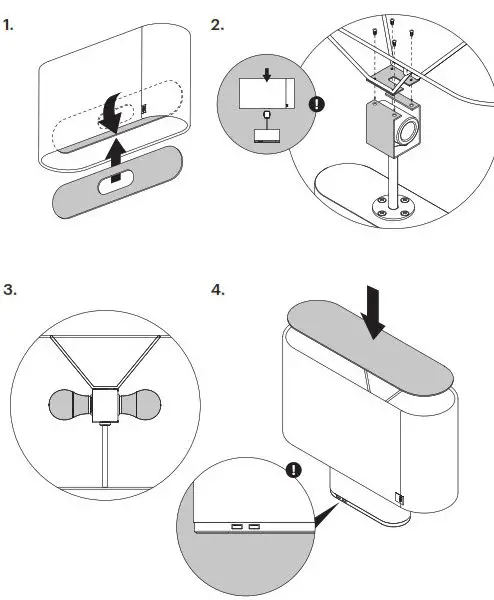

ASSEMBLY
- INSERT LOWER DIFFUSER VERTICALLY, ONCE INSIDE, ROTATE UNTIL FROSTED SIDE IS FACING DOWN AND DROP INTO PLACE MAKING SURE IT NESTS PROPERLY.
- REMOVE 4X SCREWS ON TOP OF SOCKET ASSEMBLY. SLIP SHADE OVER SOCKET ASSEMBLY AND ATTACH WITH PROVIDED SCREWS (NOTE! LOGO TAG FACES FRONT OF LAMP).
- INSTALL BULBS (PROVIDED)
- LOAD UPPER DIFFUSER WITH FROSTED SIDE UP TO COMPLETE. (NOTE! 2X USB PORTS)
BELMONT FLOOR
BULB TYPES
2X BT-15 72W (120V) HALOGEN OR LEDOR
2X A19 9.5W (120V) LED
LENGTH OF CORD SUPPLIED
9FT (274CM)
CARE INSTRUCTIONS
TO REMOVE DUST AND SMALL DEBRIS: CLEAN WITH A SOFT HAIRBRUSH OR USE A VACUUM.
TO REMOVE OTHER SUBSTANCES: USE A DAMP CLOTH AND IF NEEDED A MILD DETERGENT.
AVOID AMMONIA-BASED CLEANERS

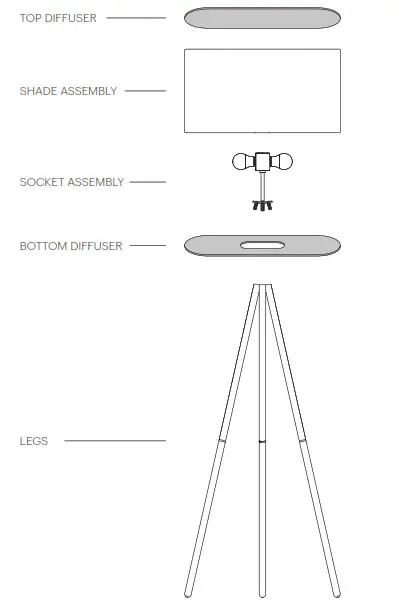

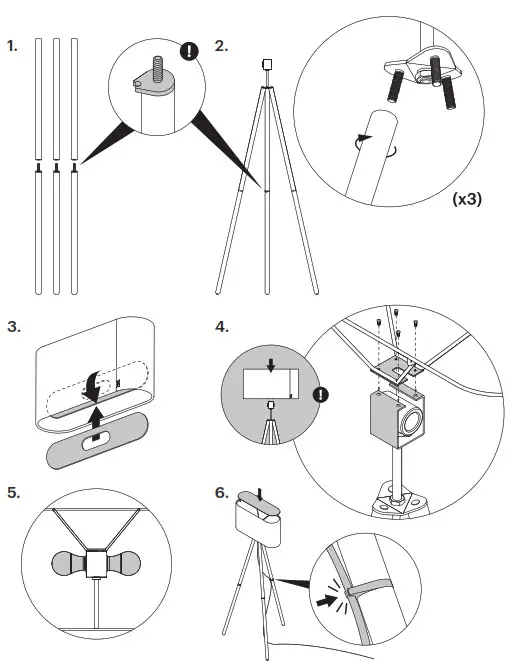

ASSEMBLY
- ASSEMBLE LEGS (3 LOWER SECTIONS AND 3 UPPER SECTIONS).
- ATTACH LEGS TO SOCKET ASSEMBLY (NOTE! REAR LEG INDICATED BY CABLE CLIP).
- INSERT LOWER DIFFUSER VERTICALLY, ONCE INSIDE, ROTATE UNTIL FROSTED SIDE IS FACING DOWN AND DROP INTO PLACE MAKING SURE IT NESTS PROPERLY.
- REMOVE 4X SCREWS ON TOP OF SOCKET ASSEMBLY. SLIP SHADE OVER SOCKET ASSEMBLY AND ATTACH WITH PROVIDED SCREWS (NOTE! LOGO TAG FACES REAR OF LAMP).
- INSTALL BULBS (PROVIDED)
- LOAD UPPER DIFFUSER WITH FROSTED SIDE UP AND SECURE CABLE INTO CABLE CLIP TO COMPLETE.
