Goal Zero Switch8 Portable Recharger User Guide (+ PDF)

PORTABLE RECHARGER
User Guide

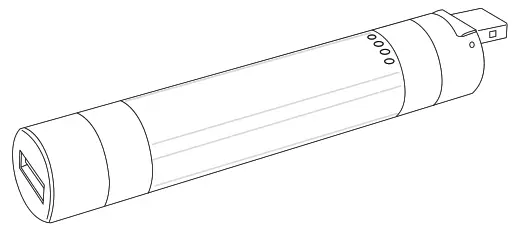

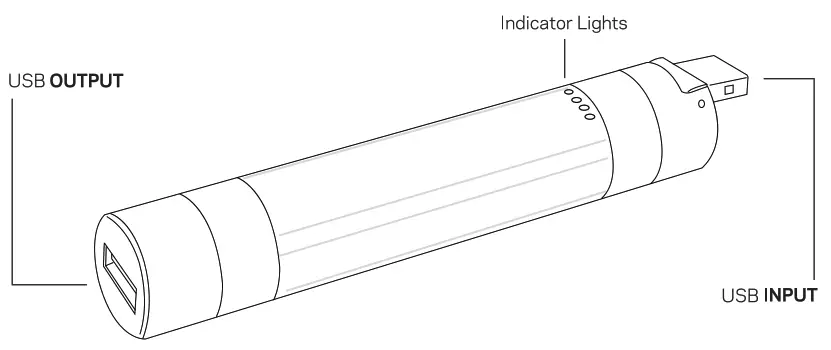

Know Your Gear

Contents hide

Frequently Asked Questions

Q: How do I turn it on?
A: There is no on/off switch. The Switch automatically turns on when a port is used.
Q: How do I know if I have a full charge?
A: When charging, all LED lights will be lit to show a full charge. Otherwise, press the charging indicator button to display the charge level.
Q: is it waterproof?
A: No, although the SWITCH is durable, electricity and water don’t mix well. Make sure the ports are dry before using the device.

Q: What type of battery technology is it?
A: Lithium-ion NMC. It has these advantages: stores more energy; smaller and lighter watt for watt; and retains its charge even after months of storage.
Q Can I take the recharger on an airplane?
A: Yes, the SWITCH can be taken anywhere and is great for keeping devices charged on long flights.
Q: How do I get different attachments and tips for my SWITCH?
A: Visit your local retailer that carries GOAL ZERO products or visit www.goalzero.com for a complete offering of tips and other accessories.

Technical Specifications

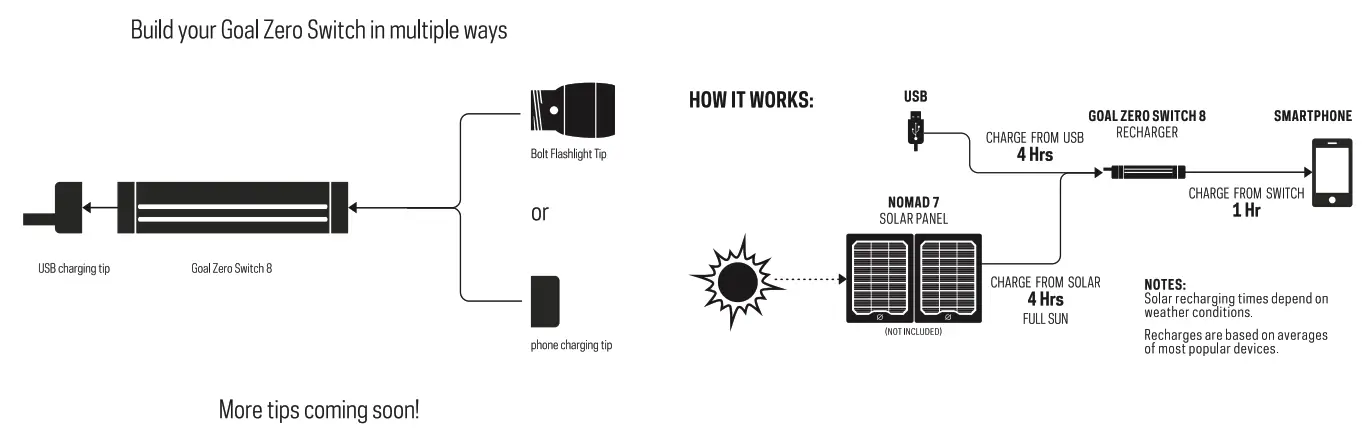

Charging With:	Approximate Charge Times
USB Source	4 hours
Nomad7 USB	4-8hours
Nomad 3.5 USB	5-10 hours
Inputs
USB port	5V, up to 0.8A(4W max)
Outputs
USB port	5V, up to 1A (5W maxi, regulated
Internal
Battery type	Li-NMC
Battery capacity	8Wh (3 7V, 2200mAh)
Life-span	hundreds of cycles

General
Shelf Life Weight	Keep plugged in, or charge every 3-6 months
Dimensions	3.2 oz (91 g)
Shelf Life Weight	1 x 1 x 5 in (2 5 x2.5x 12.7 cm)
Warranty	6 months
Tested and Certified	FCC, CE
Operating usage temperature	32-104F (0-40C)
