ES-16-150W Quick Start Guide

Package Contents

EdgeSwitch ES-16-150W Mount Brackets (Qty. 2)

Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4)

Power Cord Rubber Feet (Qty. 4)

Installation Requirements

Phillips screwdriver (for rack or wall mounting)
Standard-sized, 19″ wide rack with a minimum of 1U height available (for rack mounting)
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the EdgeSwitch itself should be housed inside a protective enclosure.

Hardware Overview

1 System LED
Note: The System LED functionality has been updated with firmware v1.8.0. We recommend that you update the EdgeSwitch to the latest firmware.
Flashing White	Bootup in progress.
White	Ready for use, not connected to Ubiquiti® Network Management System (UNMS™). See “UNMS Management”.
Blue	Ready for use, connected to UNMS.
Steady Blue with Occasional Flashing	Ready for use, unable to connect to UNMS, check connection to UNMS server.
Quickly Flashing Blue	Used to locate a device in UNMS.
Alternating Blue/White	Firmware upgrade in progress.
2 RJ45 PoE LED (Ports 1 – 16)
Off	No PoE
Amber	IEEE 802.3af/802.3at
Green	24V Passive
3 RJ45 Speed/Link/Activity LED (Ports 1 – 16)
Off	No Link
Amber	Link Established at 10/100 Mbps Flashing Indicates Activity
Green	Link Established at 1000 Mbps (1 Gbps) Flashing Indicates Activity
4 SFP Speed/Link/Activity LED (Ports 1 – 2)
Off	No Link
Green	Link Established at 1 Gbps Flashing Indicates Activity
5 RJ45 (Ports 1 – 16)
RJ45 ports support 10/100/1000 Ethernet connections.
6 SFP (Ports 1 – 2)
Hot-swappable SFP ports support 1 Gbps connections.
7 Reset Button
Click here to learn how to reset an EdgeSwitch to factory defaults.
8 Console Port
RJ45 serial console port for Command Line Interface (CLI) management.
9 Power Port
Connect the included Power Cord to the Power port.

Hardware Installation

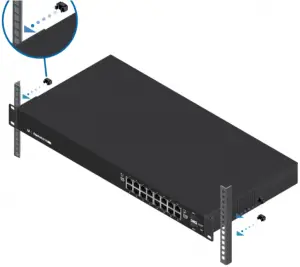

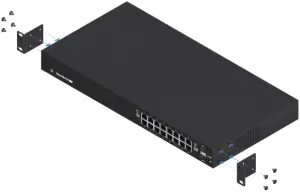

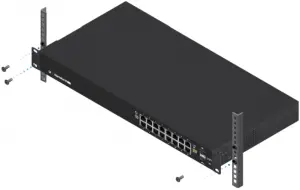

Rack Mounting

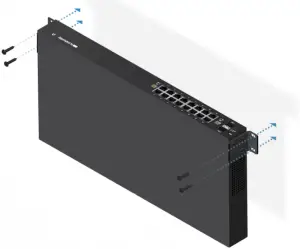

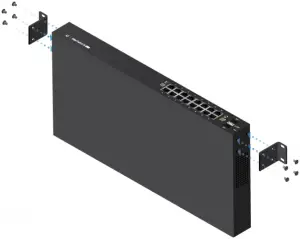

Wall Mounting

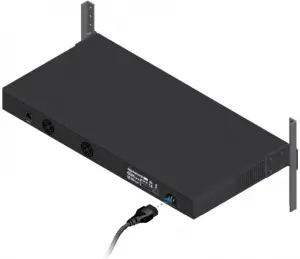

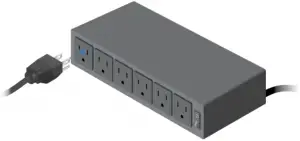

Connecting Power

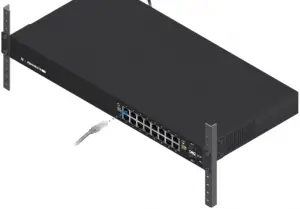

Connecting Ethernet

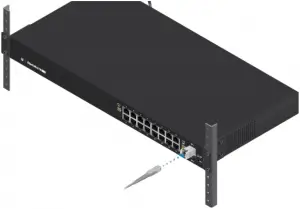

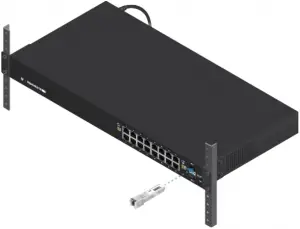

Connecting SFP

For information about compatible fiber SFP modules, visit: ubnt.link/SFP_DAC_Compatibility

Accessing the Configuration Interface

By default, the EdgeSwitch will try to get its IP address automatically using DHCP. If that fails, then it will use the default fallback IP address, 192.168.1.2. Proceed to the appropriate section, DHCP or “Fallback IP Address”:

DHCP

Use one of the following methods:
• Set up the DHCP server to provide a specific IP address to the EdgeSwitch based on its MAC address (on the label).
• Let the EdgeSwitch obtain an IP address and then check the DHCP server to see which IP address was assigned.

To log in, follow these steps:
1. Launch your web browser. Type the appropriate IP address in the address field.
Press enter (PC) or return (Mac).
2. Enter ubnt in the Username and Password fields. Click Sign In.

3. The EdgeSwitch Configuration Interface will appear. Customize additional settings as needed.

For more information, refer to the EdgeSwitch documentation, which is available at ui.com/download/edgemax

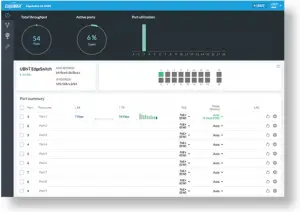

Fallback IP Address

1. Ensure that your computer (or other host machine) is connected to the EdgeSwitch.
2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type the appropriate IP address in the address field
(192.168.1.2 is the default fallback IP address). Press enter (PC) or return (Mac).

4. Enter ubnt in the Username and Password fields. Click Sign In.

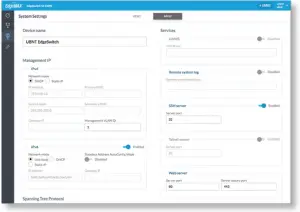

5. The EdgeSwitch Configuration Interface will appear. Go to Settings .

Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch using the new IP address.

Customize additional settings as needed. For more information, refer to the EdgeSwitch documentation, which is available at: ui.com/download/edgemax

UNMS Management

You can also manage your device using UNMS, which lets you configure, monitor, upgrade, and back up your devices using a single application. Get started at www.unms.com

Specifications

ES-16-150W
Dimensions	443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
Weight With Mount Brackets	2.80 kg (6.17 lb) 2.89 kg (6.37 lb)
Total Non-Blocking Line Rate	18 Gbps
Max. Power Consumption	150W
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 150W DC
Shock and Vibration	ETSI300-019-1.4 Standard
LEDs Per Port RJ45 Data Ports SFP Data Ports	PoE, Speed/Link/Activity Speed/Link/Activity
Networking Interfaces	(16) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In/Out Band
PoE Interfaces	PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) 24VDC Passive PoE (pins 4, 5+; 7, 😎
Voltage Range 802.3at Mode 24V Passive PoE	50-57V 20-27V
Max. Wattage per Port PoE+ Passive PoE	34.2W 17W
Rack-Mount	Yes, 1U High
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC

Safety Notices

Read, follow, and keep these instructions.
Heed all warnings.
Only use attachments/accessories specified by the manufacturer.

WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

WARNING: Do not use this product in location that can be submerged by water.

WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

ISED Canada

CAN ICES-3(A)/NMB-3(A)
