Kidzone 060-rot-23l 12v Mercedes Benz Amg Gt 2 Seater Ride On Instruction Manual

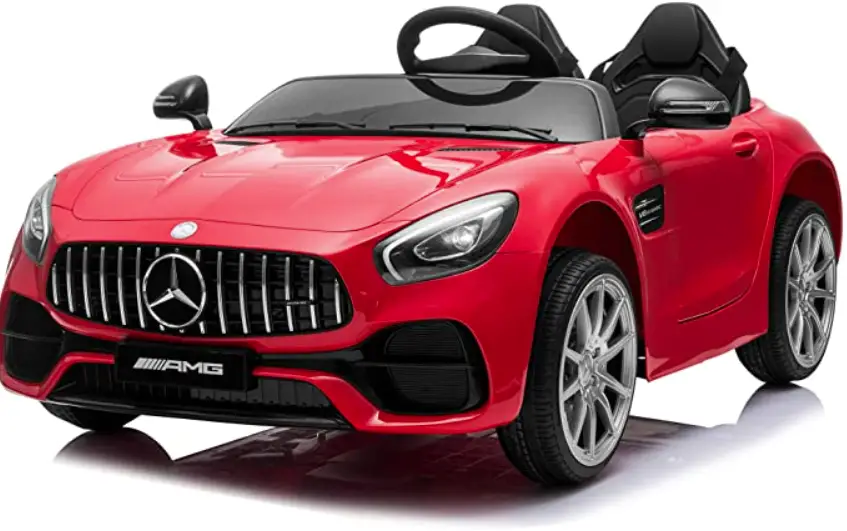

kidzone 060-ROT-23L 12V Mercedes Benz AMG GT 2 Seater Ride On

Note: Product appearance and colors may vary from the photo.

This vehicle is packed with the battery disconnected. Connect the battery before use. This manual contains important safety, performance and maintenance information. Read the manual before allowing your child to ride your new electric ride-on toy. Keep this manual properly for future reference.

Safety Instruction

When using electrical product, basic safety precaution should always be followed including the following

Read all Instruction before operating this product

WARNING:

• To Protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in water or other liquid.
• Only use charging devices, transformer, and battery provided or recommended by the manufacturer.
• For your children’s safety, the product should be assembled by adult.
• This toy is not intended for children below 36 months old.
• Closely adult supervision is necessary when your child is operating this product.
• Disconnect the battery if not used for a long time.
• Do not use this product as a traffic tool.
• To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than 2 riders.
• Do not use this product on slippery surface.
• Always keep hands, hair, and clothing away from moving parts.
• Maximum users’ weight for this product is 88 lb / 40 kg.
• Do not change, modify or add any electrical wiring on this product.
• Avoid using this product in tight environment to prevent damage to the product or injury to the user.
• Do not use this product in the dark. Only operate this product during daytime or well-lit area.
• For your child’s safety, please make sure the seat belt is securely fastened when operating this product.

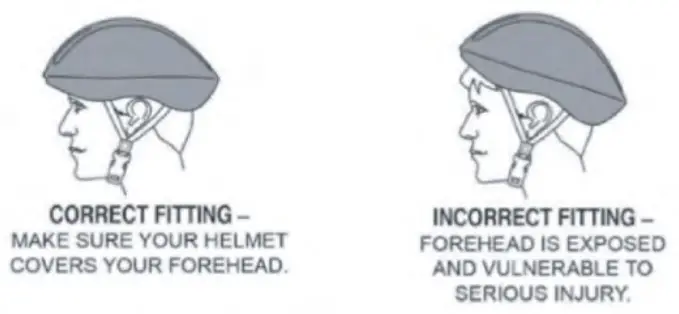

• Personal protective equipment such as helmet is needed when operating this product

WARNING: Avoid continuously hitting into obstacle to prevent overheat or damage to the motor, drive away or remove obstacle as soon as possible.

WARNING:

PREVENT FIRE

• Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.
• Use of the wrong type of battery or charger could cause a fire or explosion resultingin serious injury.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adultsonly.
• Never lift or carry the battery by the wires or connector. This can damage the battery and possibly cause a fire resulting in serious injury. Lift and carry the battery by the case only.
• Examine the battery, charger and their connectors for excessive wear or damage each time you charge the battery. If damage or excessive wear is detected, do not use the charger or the battery until you have replaced the worn or damaged part.

WARNING:
Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance, unapproved modification, or neglect of this product.

WARNING

Flammable and Explosive Materials Warnings Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fire or explosion. Only use the supplied rechargeable battery and charger with the ride-on toy. Do not charge the battery near heat or flammable materials. Using the rechargeable battery and charger for any other product many result in overheating, fire or explosion. Never use the rechargeable battery and charger with another product. Contact between the positive and negative terminals may result in fire or explosion. Avoid direct contact between the terminals. Lifting the battery by the wires or charger can cause damage to the battery and may result in a fire. Always lift the battery by its case or handles. Plug wall charger directly into a wall outlet. Do not use an extension cord when charging as the use of an extension cord can cause a fire. Electric Shock/ Fire Warnings Liquids on the battery may cause fire or electric shock. Always keep all liquids away from the battery and keep the battery dry. Tampering or modifying the electric circuit system may cause a shock, fire or explosion and permanently damage the system. Exposed wiring, circuitry in the charger may cause electric shock. Always keep the charger housing closed. Regularly check charger, supply cord and connector for wear and damage. Look for frayed or kinked wires, any exposed inner wires, any missing insulation. If any damage is observed do not plug in the charger and do not charge the battery.

WARNING

Product Warning WARNING: This product can expose you to chemicals including lead, and lead components which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov. Assembly Warnings The ride-on toy must be assembled by an adult who has read and understands the instructions in this manual. Choking hazard to children under the age of 3 years. This ride-on toy contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective materials, plastic bags and packaging before assembly.

Product Specification

Motor: 12V, 45W*2, 12000rpm
Battery: 12V7 AH xl
Charger: 15V1 000mA
Speed: 0.7 – 3.1 mph
Suitable Age: 37 – 72 months
Maximum User Weight: 88 lb/ 40 kg
Dimension: 46 x 29 x 19 INCH / 116.8 x 73.7 x 48.3 CM
Battery Charge Time: 8 – 12 hours
Operation Time: 1 – 2 hours
First Charging Time: 8-12 hours
Max Charging Time: 20 hours
Battery (Temperature Tolerance): -68°F to 140°F

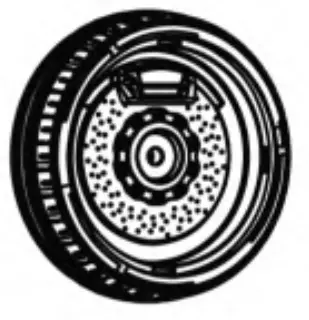

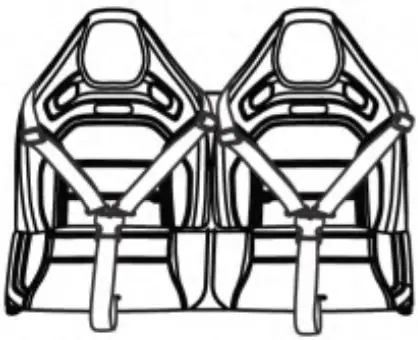

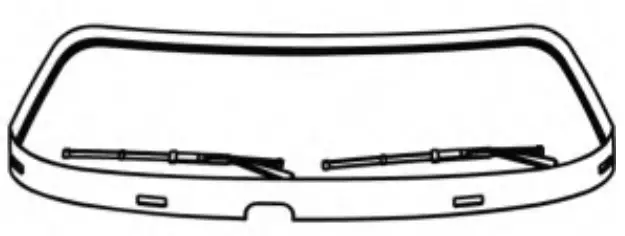

Parts and Feature

Assembly Instruction

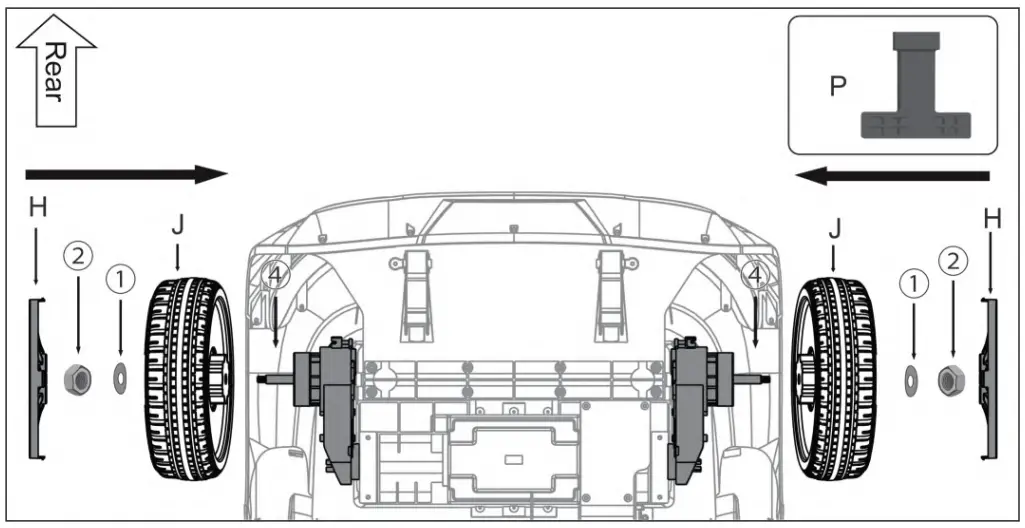

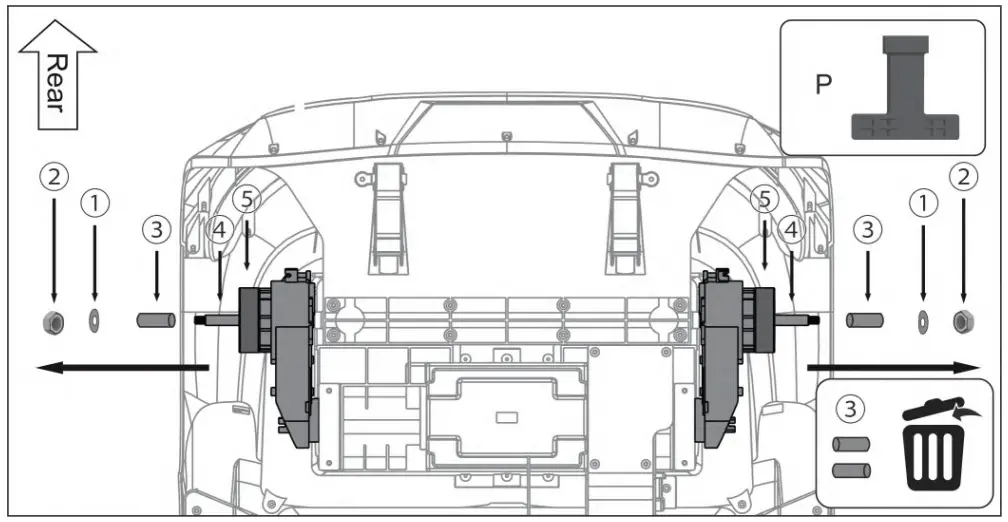

Use the spanner (P) to loosen the M8 nut (2) and gasket (1) from the rear axle. Remove and put the protective cover (3) from the axle in the trash.

Install the wheel (J) to the rear axle (4). Use spanner (P) to secure the wheel with M8 gasket (1) and M8 nut (2) and cover the wheel with wheel cover (H).

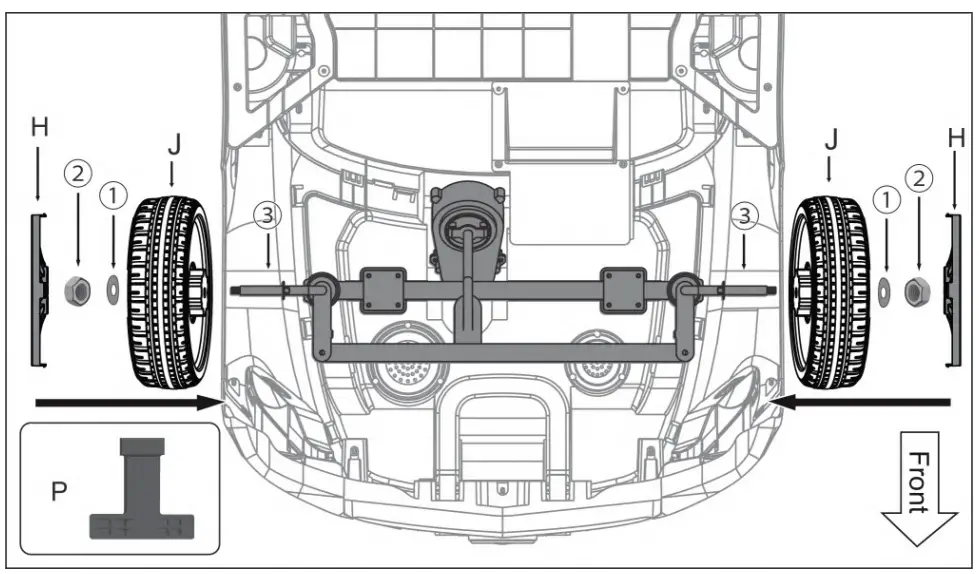

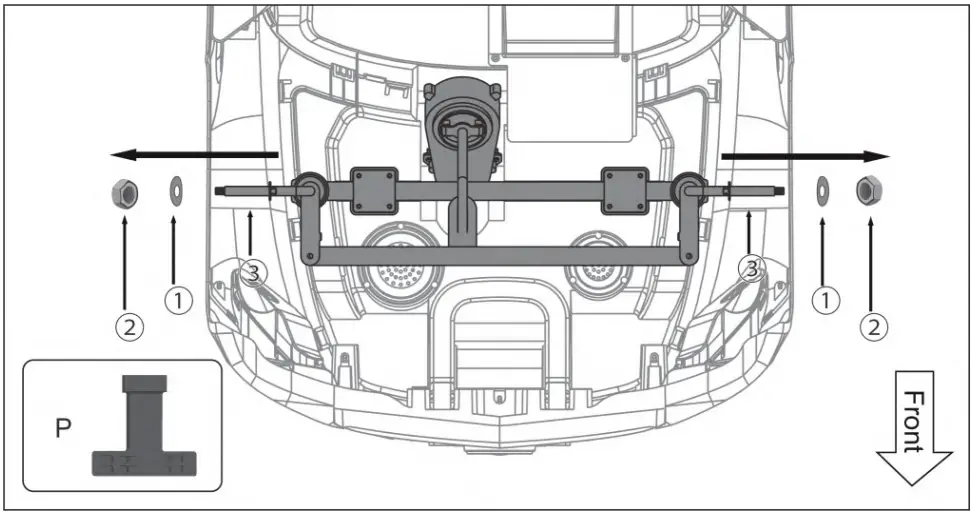

Use the spanner (P) to loosen the M8 nut (2) and M8 gasket (1) from the front axle (3).

Slide the wheels (J) to the front axle (3). Use spanner (P) to secure the wheel with M8 gasket (1) and M8 nut (2) and cover the wheel with wheel cover (H).

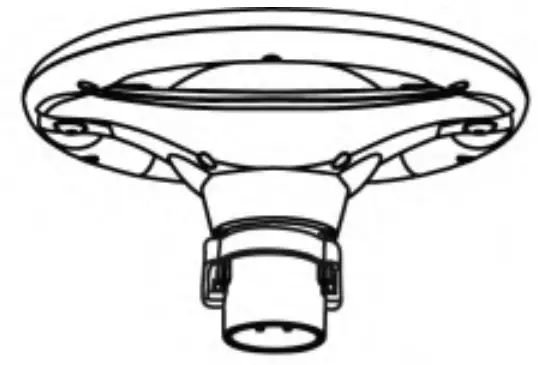

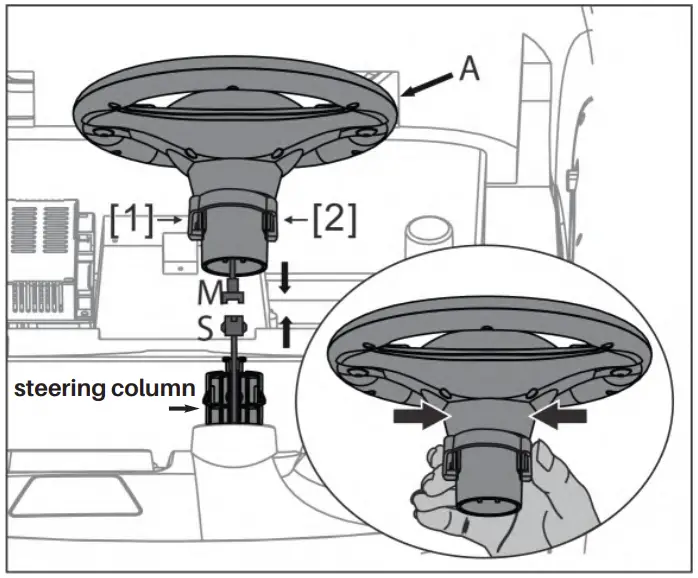

Connect the steering wheel terminal (M)  and the body terminal (S), then align the steering wheel (A) to the steering column and connect as shown in the diagram.

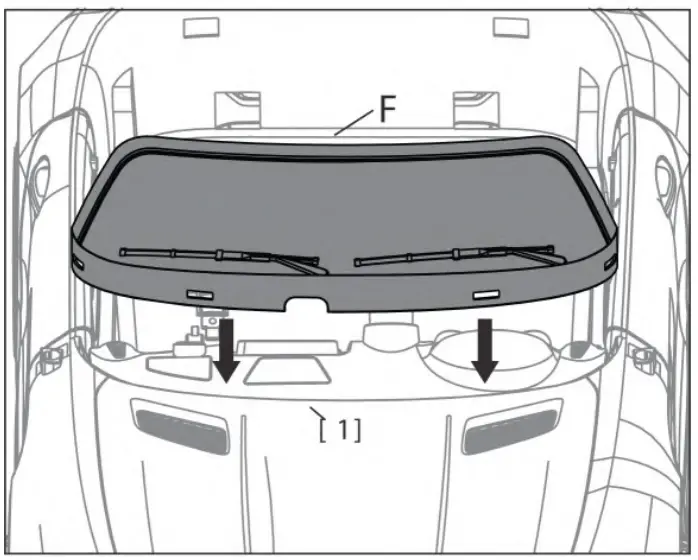

Assemble the wind shield (F) to the corresponding groove on the car body.

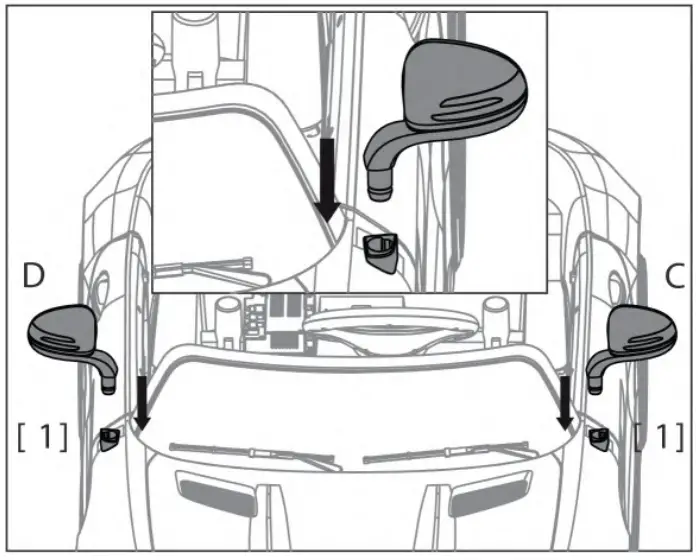

Align and insert rear view mirror (C) (D) to the car body.

First find out the 2 red power terminals under the seat and connect them.

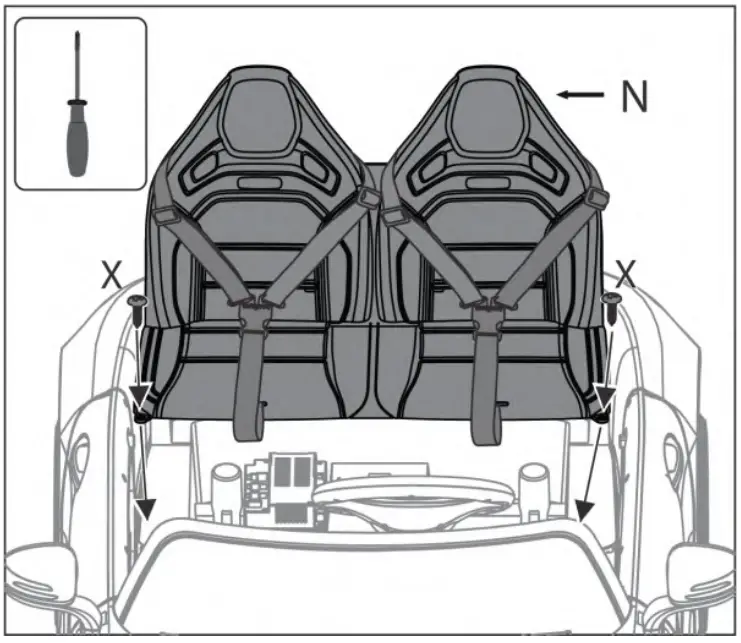

Assemble the seat (N) to the car body and secure it in place with 2 self – tapping screws (X) by screwdriver.

User Instruction

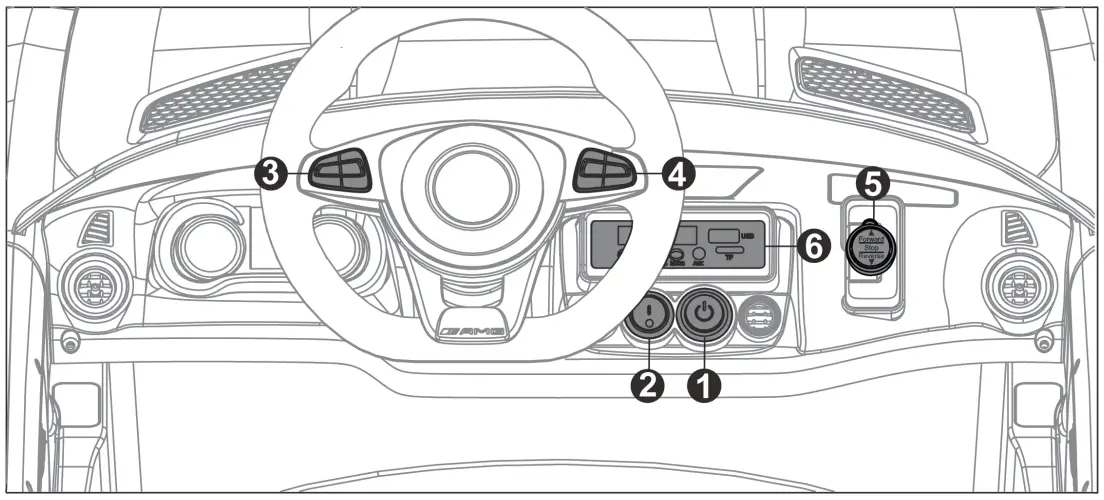

Control the vehicle

1. Start Switch
   Turn the product on and off.
2. Light Switch
   Turn the light on and off.
3. Music Button
   In the FM mode or USB mode, press the button once to play the next track. Press and hold to increase volume.
4. Horn Button
   Press the button the horn.Press and hold the button to decrease volume.
5. Forward / Reverse Switch
   Press the switch to control the vehicle to move forward/ reverse.
   WARNING: Do not change the speed or direction until the vehicle comes to a complete stop.
6. MP3 multifunctional player

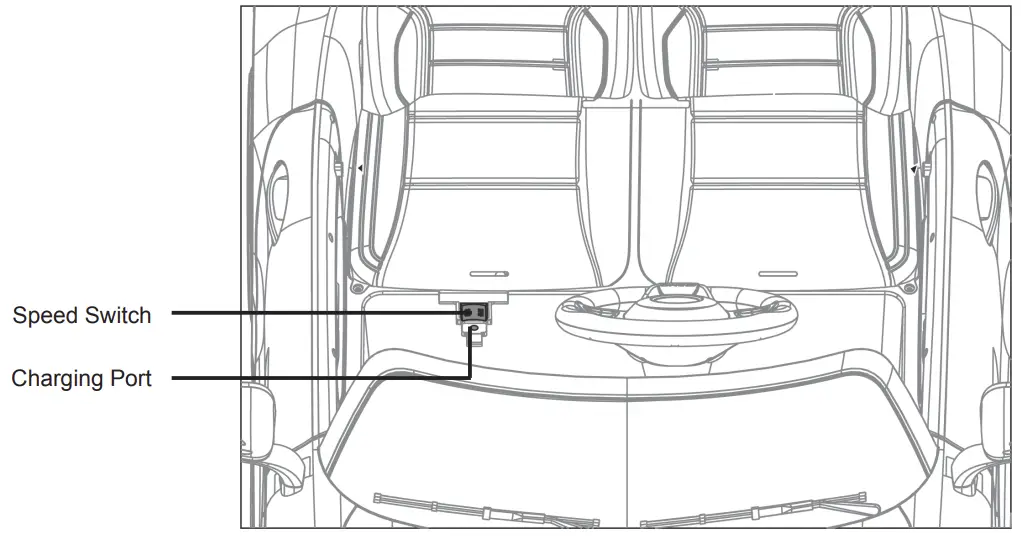

Speed Switch
Control the speed of the vehicle in slow or fast.
NOTE: The vehicle can only be operated in slow for reverse.

User Instruction {Fuse)

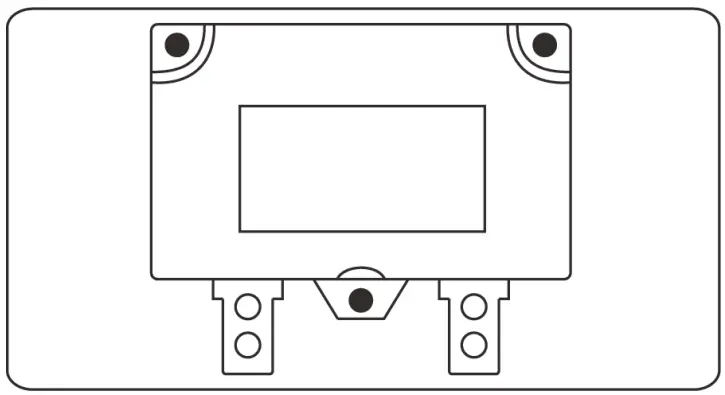

Resettable Fuse
When the current exceeds a preset value, the fuse will cut off the power for 5 – 10 seconds before current resume .
WARNING: Do not bypass the fuse. The fuse is designed to protect the product from overload and electrical system damage.

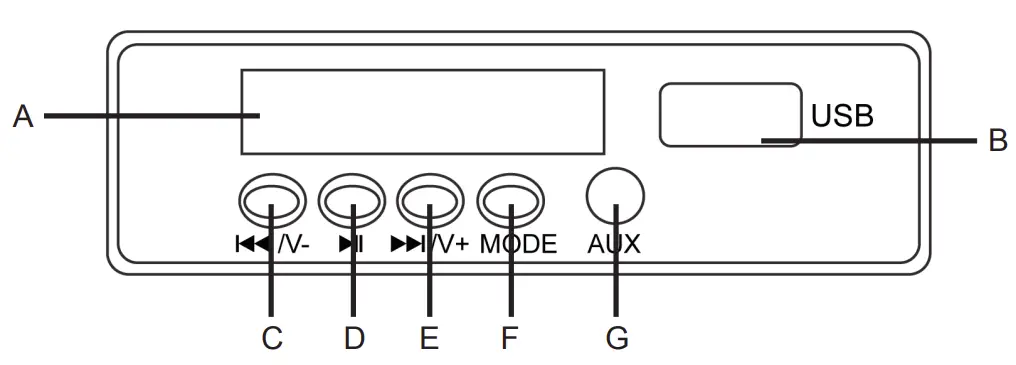

User Instruction (Multifunction Player}

A. Battery Level Screen
The screen display battery level.
B. USB connector
insert USB to play the music.
NOTE: Only support MP3 file format.
C. Previous Track/ Decrease Volume
Press the button once to play the previous track. Press and hold to decrease volume.
D. Play/ Pause
Press the button to pause.
Press and hold the button to search radio station in FM mode.
E. Next Track/ Increase Volume
Press the button once to play the next track. Press and hold to increase volume.
F. Mode Button
Press the mode button to cycle through different modes.
G.AUX port
Connect an external device to play audio file via AUX cable to the AUX port.

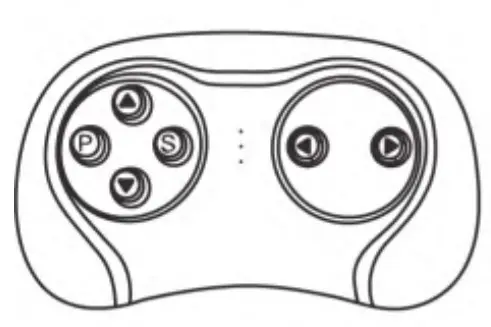

User Instruction (Remote Control}

Using the remote control
The remote control should only be used by adult.

To pair the remote control to the vehicle,

1. Put in the battery and the LED indicator on the remote control will flash.
2. Turn on the power of the vehicle.
3. Successful pairing when the LED indicator stop flashing.

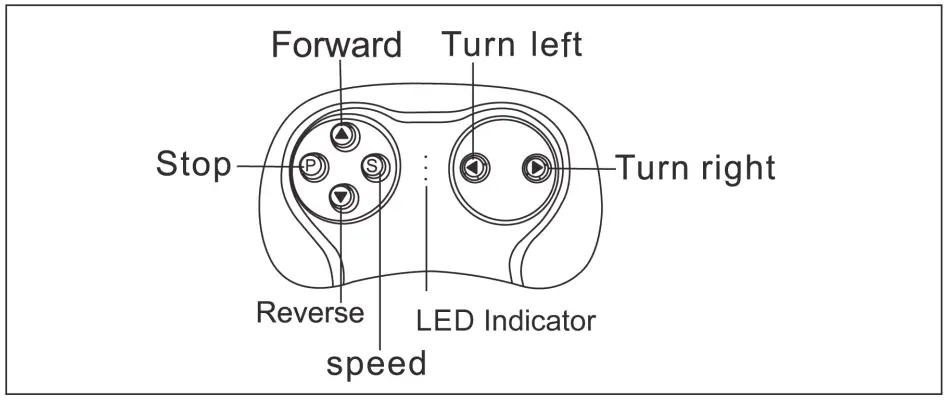

Control the vehicle

• Press the directional buttons to move the vehicle.
• Press the “P” button to enable emergency brake. All running function will be disable once the button is pressed. Press “P” button again to disable.
• Press “S” button to adjust the speed.

WARNING:
Close supervision is needed when children is operating the vehicle.

WARNING:
The battery should only be changed by an adult.

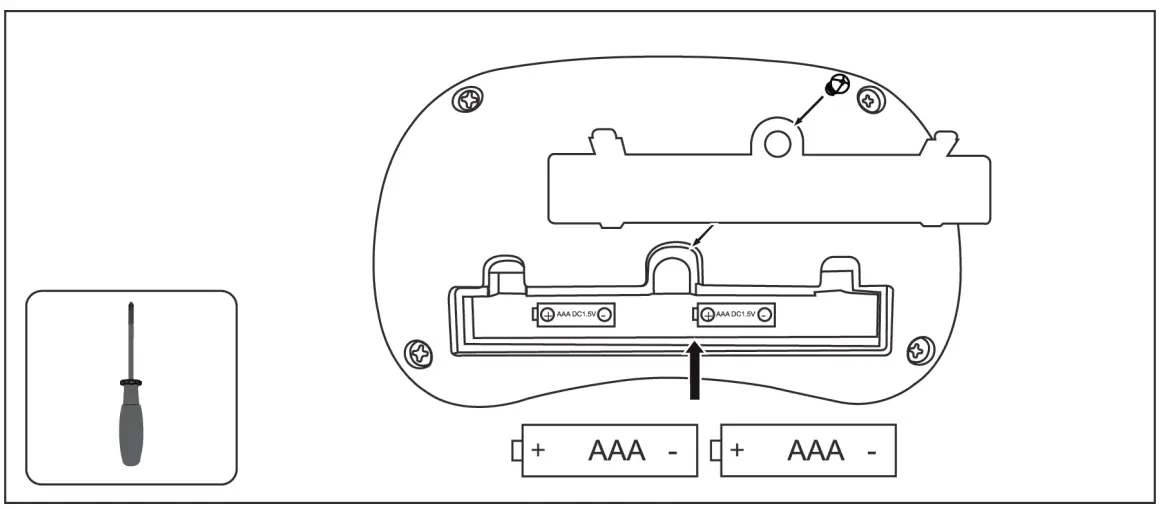

Changing the battery

1. Remove the cover on the back side with a screwdriver.
2. Replace the old battery with two new AAA 1.SV batteries in correct polarity.
3. Put the cover back in place and secure with the screw.
4. Do not mix old and new batteries.
5. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.

NOTE: If the remote controller is not used for 10 seconds, it will shut down automatically.

User Instruction (Charging)

WARNING:
The battery should only be charged by an adult. The battery is not replaceable.

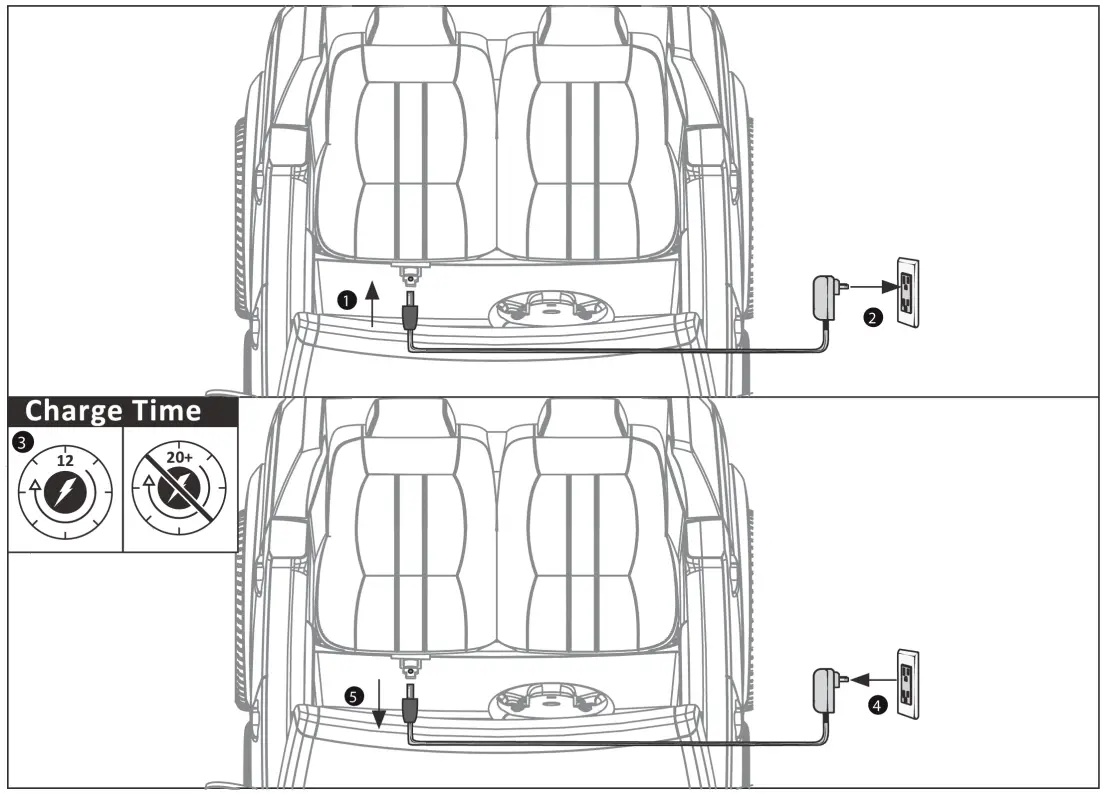

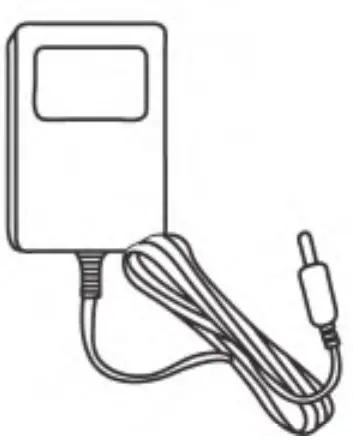

Charging the battery

1. Insert the charging cable to the charging port located below the vehicle seat.
2. Insert the charger plug into a wall outlet.

• The vehicle must be OFF when charging.
• Recharge the battery if the vehicle operates slowly.
• The vehicle cannot be operated when charging.

NOTE:
Damage to the battery may occur if it is completely drained.
Do not charge the battery for more than 20 hours.
NOTE: Charge the battery at least once a month even not operating the vehicle to maximize the battery life.

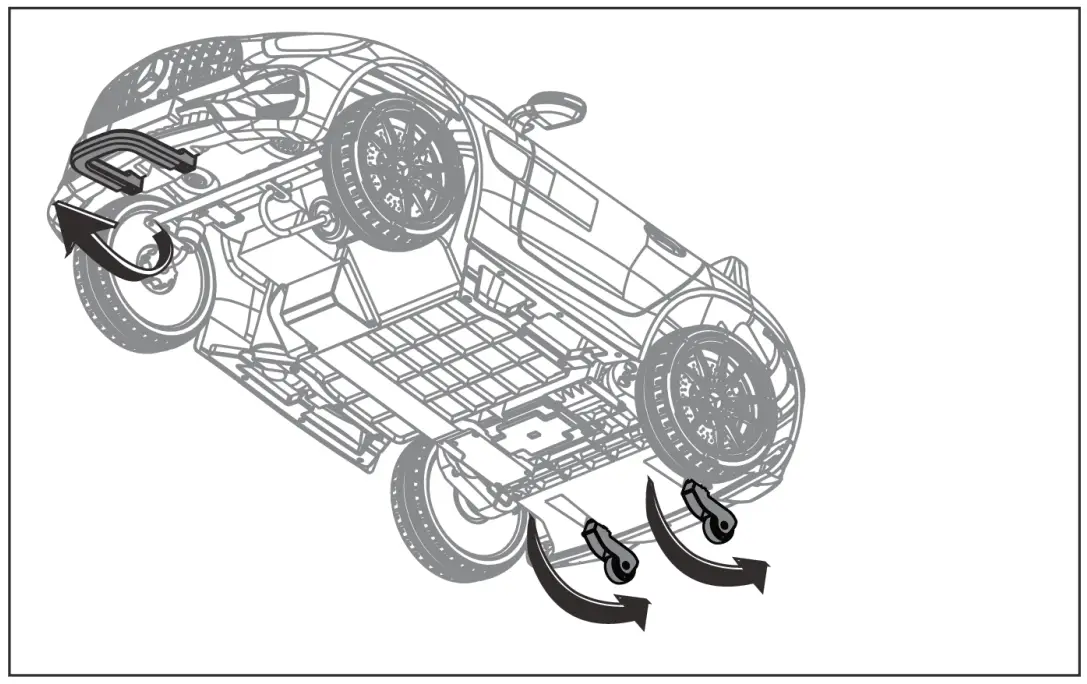

User Instruction (Pull Rod}

Unfold the pull rod and caster rollers from the bottom of the vehicle.

Care and Maintenance

• Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary.
• Make sure there is no cracked or broken plastic parts.
• Keep away the product from heat and humid area, cover it with trap when not in use.
• Ture off the product and disconnect the battery if the product is not use for a long period of time.
• Clean the vehicle with a cloth. Use a non-wax furniture polish to restore the shininess of the plastic parts.
  Do not use abrasive cleaner.
• Do not wash the product with a hose or immerse any parts in water or other liquid.
• Occasionally use lightweight oil to lubricate moving parts

Troubleshooting

Model: 2ARLM-CST-1 A
FCC ID: CST-1 A
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1 )This device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technical for help.

Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This product conforms to toy safety standards CPSIA and ASTM-F963.

Importer: ONE BIG OUTLET
Importer Address: 19301 E Walnut dr. N. City of industry CA91748 united states
Importer Tel.: 800 – 946-6151

Limited Term Warranty {One Year from Date of Purchase)

WARRANTY TERMS

KIDZONE warrants that its merchandises are free from manufacturing defects (workmanship and/ or material) and will either give credit or replace defective parts for a period of up to one (1) year from the date of purchase in accordance with the conditions setforth below. If a manufacturing defect is found, KIDZONE should be notified promptly of the defect and supplied a copy of the invoice and delivery ticket. Inspection by a Kl DZON E employee or representative may be necessary to verify that a manufacturing defect exists, or you may be required to submit samples to KIDZONE along with a digital image of the defects. If replacement is required in accordance with this warranty and the defective material or merchandise has been discontinued or unavailable, KIDZONE reserves the right to select and supply similar merchandise or offer full credit for the merchandise; otherwise the same material or merchandise will be supplied for replacement purposes. This warranty is made solely to the retailer and is not transferable under any circumstances. It is the retailer’s responsibility to contact KIDZONE with a claim. We will not handle claims from consumers directly; all requests must go through the retailer who sold the merchandise to the consumer. We advise all retailers to retain invoices for a minimum of one (1) year for warranty purposes. This warranty supersedes and replaces all implied warranties of merchantability and use for particular purpose.
No representative, employee, agent or any otherperson is authorized to assume for KIDZONE any additional liability or responsibility in connection with KIDZONEs merchandise except as described above. Implied warranties or merchantability and fitness of the merchandise are limited to a period of one (1) year from the date of purchase. In no event shall KIDZONE be liable for indirect, consequential or incidental damages of any kind.

ADDITIONAL CONDITIONS

THE FOLLOWING EXAMPLES ARE NOT MANUFACTURER’S DEFECTS:

• Colors may vary slightly from the photo because of photography and printing tolerances.
• Sizes stated in U.S. standard measurements may vary slightly due to product are manufactured using the metric system.
• No returns for buyer’s remorse.
• No returns – other than stated above will be accepted.

ADDITIONAL CONDITIONS

WARRANT IS VOID FOR ANY OF THE FOLLOWING CONDITIONS:

1. Improper maintenance or improper use resulting in damage.
2. Any product modifications by dealer, consumer, or other parties not authorized by KIDZONE will void this warranty.
3. Floor samples sold or products designated “AS IS” at the time of purchase are not covered by the warranty
4. Warranty does not cover minor variations or differences between floor samples or printed illustrations and your product.
5. Cost of packaging and shipping to and from KIDZONE is not covered by the warranty unless expressly arranged by KIDZONE.
6. This warranty covers only articles of appliances intended for residential use only, does not cover any industrial, commercial, institutional or Rental use.
7. Dissatisfaction due to buyer’s remorse.
8. Normal wear and tear.
9. Damages incurred during transportation.
10. Damages incurred during assembling or maintenance.
11. Damage incurred by accidents or abuse.
