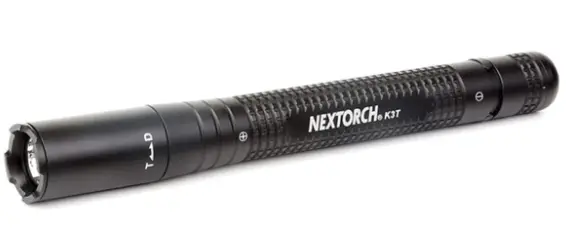

NEXTORCH Pro’s Light-K3T Tactical Penlight

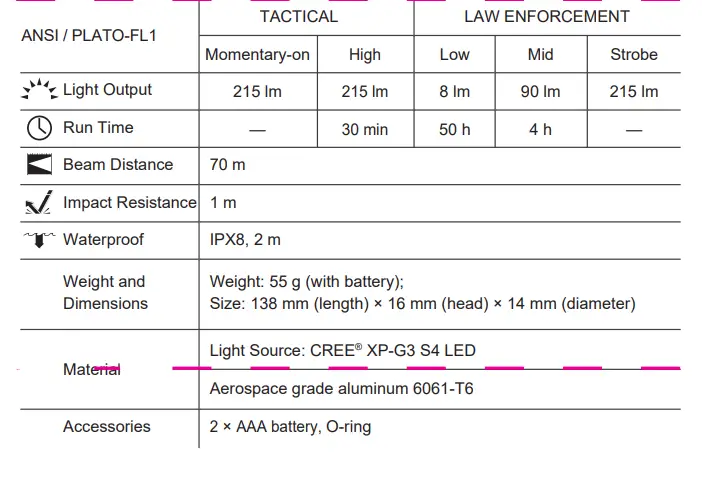

SPECIFICATIONS

The above-tested specifications are strictly based on the standard of ANSI/PLAT0-FL1. We tested K3T with two NEXTORCH standard AAA size batteries in 25 °C. The specifications might be
different when using different batteries or testing in different environments.

FEATURES

Two separate lighting portfolio options: tactical mode and Law enforcement mode;
Ultra-slim pen light perfect for tactical use and covert operation while preserving night vision;
High intensity CREE XP-G3 S4 LED provide a max output of 215 lumens
Machined aircraft-grade aluminum with non-slip knurled body design.

INSTRUCTIONS

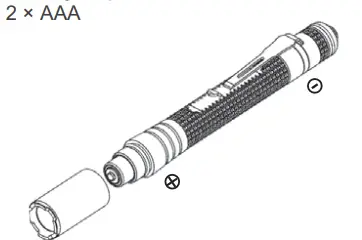

Battery Replacement
2 × AAA
ON/OFF

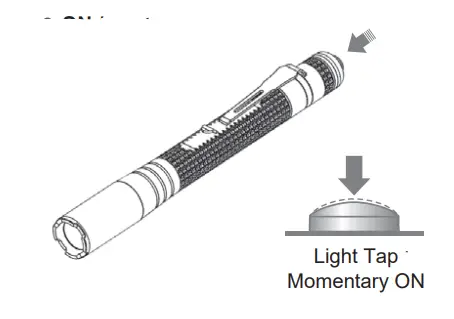

Instant light
Constant ON / OFF
Mode Selection

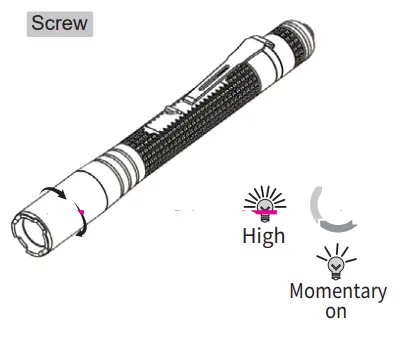

1. Clockwisescrew up / tighten the head for tacticaruse;

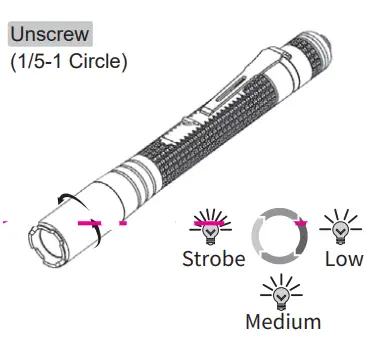

  Counterclockwise screw the head 1/5 to
2. circle to activate duty modes for law enforcement.
Duty Mode / Law Enforcement Mode
In the OFF position, half-press for preview mode, and fully press to lock out the current mode;
Tactical Mod

MAINTENANCE

Being infected with seawater or any corrosive chemicals, please rinse immediately with clean water.
Please use high quality batteries; Remove batteries when not working for a long time, and then store in a cool dry place.
If the waterproof O-ring is damaged, replace it immediately.

WARRANTY

NEXTORCH offers 5-year warranty.
NEXTORCH warrants our products to be free from any defects in workmanship and material, we will replace or return faulty item. NEXTORCH reserves the right to replace similar products if original one is discontinued.
The warranty excludes other accessories, but rechargeable batteries are warranted for 1 year from date of purchase.
Any accessories or products are not covered in the warranty, NEXTORCH can repair for users with reasonable fee.
Please scan the below QR code and access to NEXTORCH website (www.nextorch.com) to register your purchasing.
Email us [email protected]
Call us: 0086-662-6602777 Or contact local dealer

CONTACT WITH NEXTORCH DESIGNER
In order to improve NEXTORCH, we appreciate you could offer our designers your after-use feedback and creative suggestions by scanning the following QR code. Thank you!
