NEVA Junkers Ju 52 Instruction Manual
SPECIFICATIONS
Wingspan : 1630mm (63in.)
Length : 1070mm (41in.)
Electric Motor : See next pager
RTF Weight: 2.3Kg / 5.1lbs (Will vary with Equipment Used).
Radio : 6 Channel
Function : Ailerons-Flaps-Elevator-Rudder
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough. Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

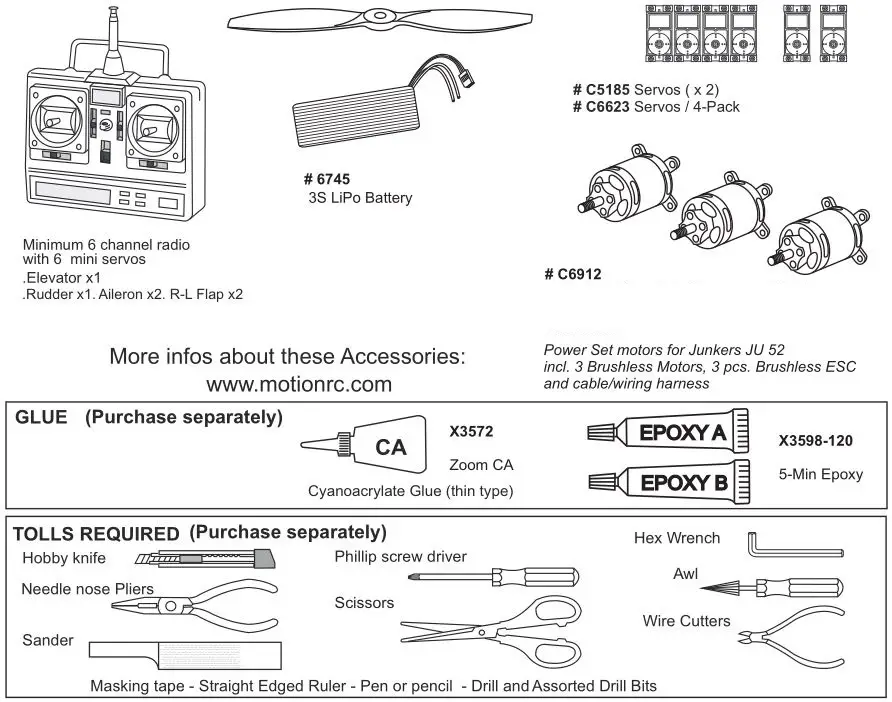

Optional Accessories (recommended):
If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the model in a cool place will let the wrinkles disappear. Otherwise, remove wrinkles in covering film with a hair dryer, starting with low temperature. You can fix the corners by using a hot iron.
Symbols used throughout this instruction manual, comprise:
Read through the manual before you begin, so you will have an overall idea of what to do.
CONVERSION TABLE
1.0mm = 3/64″
1.5mm = 1/16″
2.0mm = 5/64″
2.5mm = 3/32″
3.0mm = 1/8″
4.0mm = 5/32″
5.0mm = 13/64″
6.0mm = 15/64″
10mm = 13/32″
12mm = 15/32″
15mm = 19/32″
20mm = 51/64″
25mm = 1″
30mm = 1-3/16″
45mm = 1-51/64″
IMPORTANT: Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner to clean on surface of your model to keep the colour not fade.
