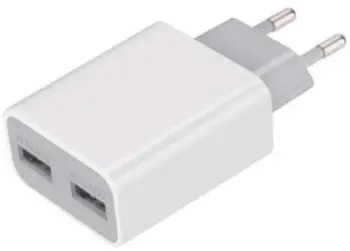

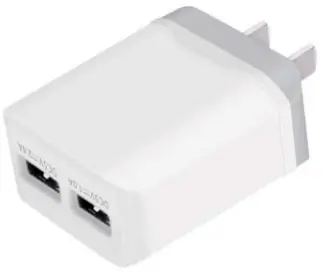

USB CHARGER
FEATURES:
- Input: AC 100-240V~ 50/60Hz
- Available plug: US, EU plug
- Power: 12W DUAL USB
- Ovp, Ocp, Scp and Over load protection
- Ripple < 100mV
- Efficiency level: VI
- Dimension: 52.4*42.8*32.1mm(exclude plug)
- Application: Tablet, Mobile phone, etc…
SAFETY:
| SAFETY: | |
| Safety Standard | UL 62368, IEC 62368, EN 61558,IEC60601,IEC60335, IEC60065 |
| Safety Approval | UL/cUL, CE, FCC, UKCA, PSE, CB, SAA, KC, TUV |
| EMC Standard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
| MTBF | 50K hrs min. MIL-HDBK-217F (25 C ) |
MODEL LIST:
MODEL | USB PORT | OUTPUT | Single Port POWER | TOTAL POWER |
| DK15T | USB A PORT 1 | 5V 2.4A | 12W | 12W |
USB A PORT 2 | 5V 2.4A | 12W |

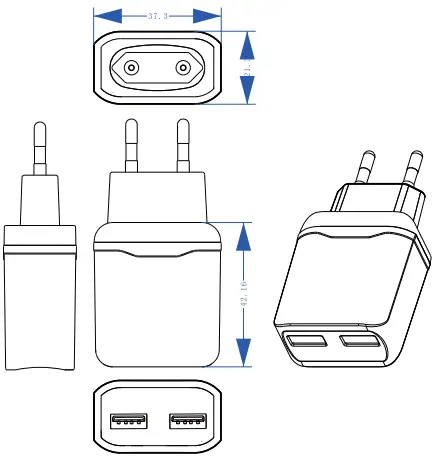

Mechanical Diagram:
