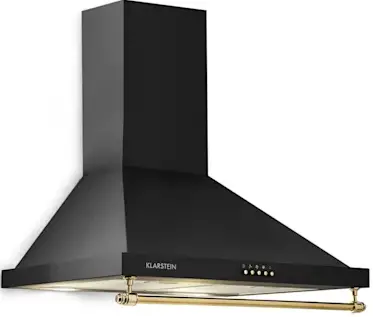

KLARSTEIN 10031992 Montblanc 60 Cooker Hood

Dear Customer,
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

TECHNICAL DATA

Item number

10031992, 10031993, 10031994,

10040264, 10040265, 10040266,

10040267, 10040268

Power supply

220-240 V ~ 50/60 Hz

Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10030983. Please visit our website: www.klarstein.co.uk

INSTALLATION

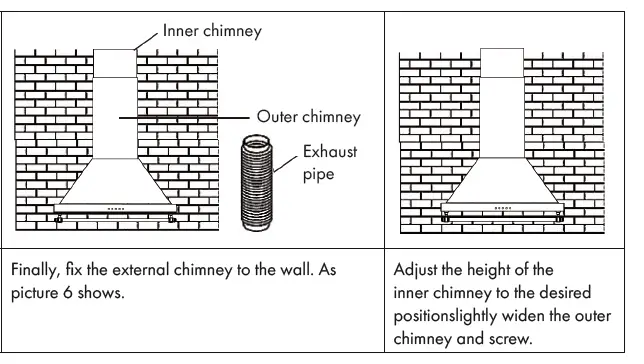

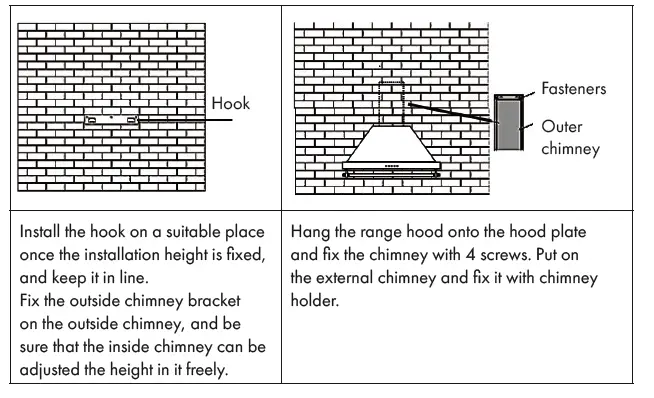

Wall Mounted Installation

The hood can be installed as extractor or recirculation hood.
The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect.

Note: The maximum height of the chimney is variable, and depends of the model purchased.

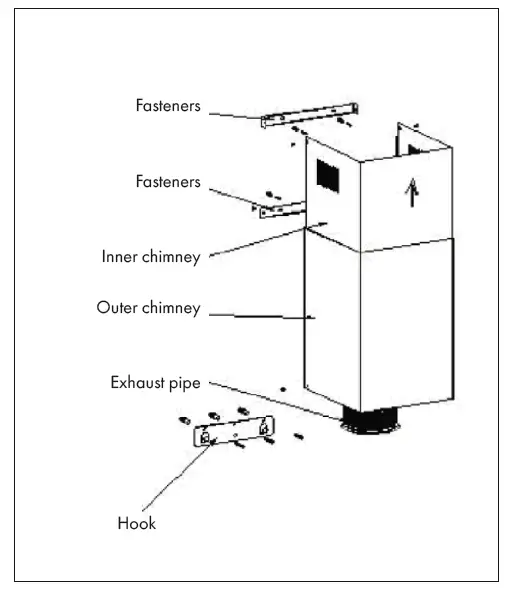

Wall Mounted Model Details

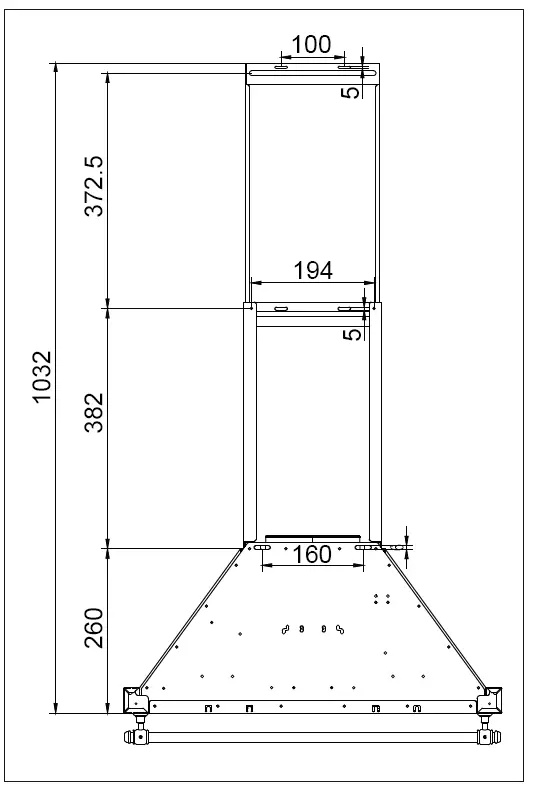

Detailed measurements

Important Hints on Installation

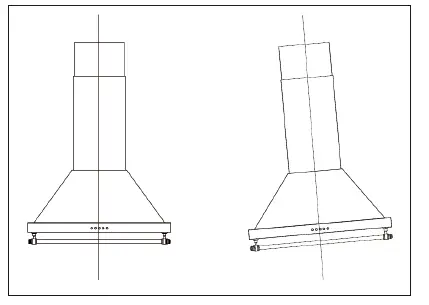

The bending angle of the pipe should be more than 120° and duct it out of the wall. Make sure thatthe range hood is vertical after installation.

CONTROL PANEL AND KEY FUNCTIONS

Control Panel

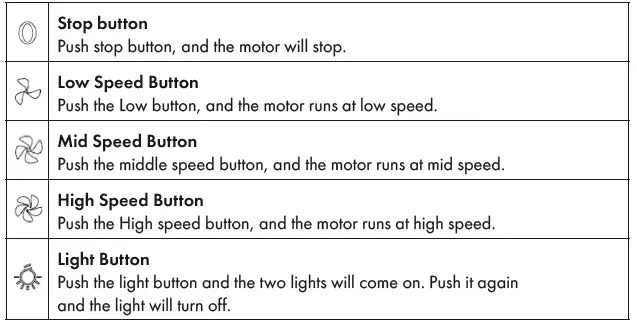

Key functions

CARE AND CLEANING

Grease Filters Cleaning

Important: Cleaning the filters will keep the appliance incorrect operation and will prevent possible exhaust flare-ups or fire by the accumulation of fat below the hood. The Grease filter is made of high-density layers of aluminium meshes. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below:

Method 1: Put the mesh into 40-50 ºC clean water, pour on detergent, and soak for 2-3 min. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy.
Method 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.

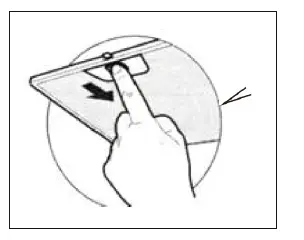

To remove aluminum filters press the metal tab back, remove the filter (one at a time) and gently pull down. After washing and drying them, places the filters following the passages of the assembly in inverse form.

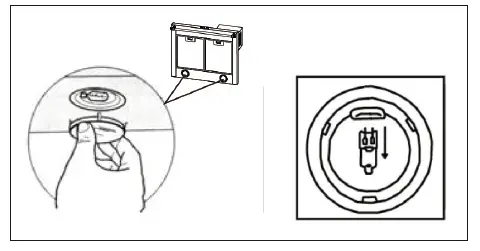

Lamp Change

Before changing the bulbs, sure that the hood is not connected.
Grasp the metal ring of the bulb, pull-down and remove the halogen cavity. Pic.12
Replace the bulb with a new one with the same characteristics.

Cooker Hood Cleaning
To protect the main steel body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non-corrosive detergent and then to maintain its brightness should be used products or foams for exclusive steel, which will leave a protective coating on the surface. It is recommended to clean it at least once every month.
Important Hints

Please do not use abrasive detergent for it will damage the body.
Keep the motor and other spare parts free from water, as this will cause damage to the appliance.
Before cleaning the appliance please remember to cut off power.
The carbon filter shouldn ’t be exposed to heat.
Please don’t tear open the fixed bar around the carbon filter
If the plug or cord is damaged, please replace it with special soft cord.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work.	The leaf blocked.	Get rid of the blocking.
	The capacitor damaged.	Replace capacitor.
	The motor jammed bearing damaged.	Replace motor.
	The internal with of motor off or a bad smell from the motor.	Replace motor.
Light does not work, motor does not work.	Light damaged.	Replace lights.
Light does not work, motor does not work.	Power cord looses.	Connect the wires as per the electric diagram.
Shake of the body.	The leaf damaged and causes shaking.	Replace the leaf.
	The motor is not tightly hanged.	Lock the motor tightly.
	The body is not tightly hanged.	Fixed the body tightly.
Insufficient suction.	The distance between the body and the gas top too long.	Readjust the distance.
Insufficient suction.	Too much ventilation from open doors or windows.	Choose a new place and resemble the machine.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014
Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015

Item number	10031992, 10031993, 10031994, 10040264, 10040265, 10040266, 10040267, 10040268
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	43,5	kWh/Year
Energy Efficiency class		A
Fluid Dynamic Efficiency	FDEhood	28,5
Fluid Dynamic Efficiency class		A
Lighting Efficiency	LEhood	13,5	Lux/W
Lighting Efficiency class		D
Grease Filtering Efficiency	GFEhood	84,5	%
Grease Filtering Efficiency class		C
air flow at minimum and maximum speed in normal use, intensive or boost excluded		401/591,5	m³/h
air flow at intensive or boost setting		–	m³/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		61/69	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		–	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	–	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014
Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015

Item number	10031992, 10031993, 10031994, 10040264, 10040265, 10040266, 10040267, 10040268
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	43,5	kWh/Year
Time increase factor	f	1,0
Fluid Dynamic Efficiency	FDEhood	28,5
Energy Efficiency Index	EEIhood	54,9
Measured air flow rate at best efficiency point	QBEP	327,1	m³/h
Measured air pressure at best efficiency point	PBEP	355	Pa
Maximum air flow	Qmax	610,7	m³/h
Measured electric power input at best efficiency point	WBEP	113,3	W
Nominal power of the lighting system	WL	1.5X2	W
Average illumination of the lighting system on the cooking surface	Emiddle	41	Lux
Measured power consumption in standby mode	Po	–	W
Measured power consumption off mode	Ps	0	W
Sound power level	LWA	61/69	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
Switch off the cooker hood when you no longer need it.
Switch off the lighting when you no longer need it.
Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom
