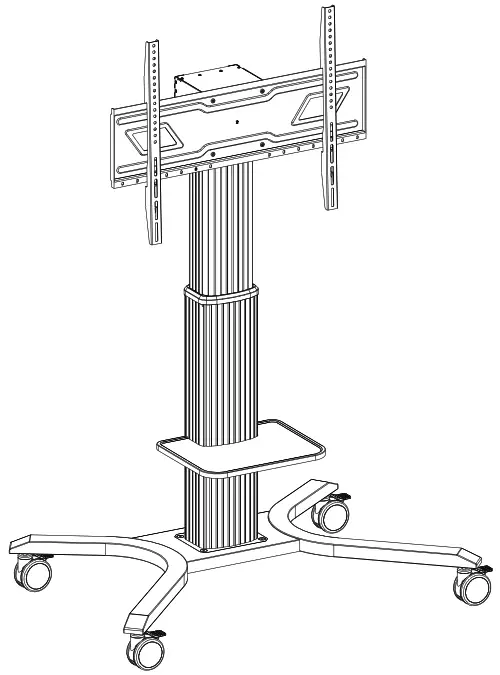

PR598-M Flat Panel Motorised Trolley
Instruction Manual
 | 50″ – 98″ (127 – 248 cm) |
 | 286 lb (130 kg) |
WARNING
Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Save these instructions. Failure to comply with these instructions may result in accident involving serious injury. Failure to follow these instructions can result in the product being damaged or being destroyed or voiding of the warranty. To reduce the risk of burns, fire, electric shock or injury to persons, heed the following: Danger – Always unplug furnishing from the electrical outlet before cleaning. Disconnect from power when installing, relocating or before servicing. To disconnect, remove plug from outlet. If the device makes unusual noise or smells, switch off the main voltage and immediately contact the manufacturer. No grounding means is provided nor should be added to a double insulated product. Replacement parts for a double insulated product must be identical to the parts they replace. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product must be installed onto flat, hard, level surface to prevent tipping. Never exceed the Maximum Load Capacity. Use with heavier displays may result in instability causing tip over resulting in death or serious injury. The cart or stand is not affixed or secured to the floor, and may therefore tip over and/or fall if screen and/or stand is shaken or hit. This product shall only be used in locations where children, people with cognitive disabilities or domestic animals are not anticipated to be present. This product is intended for commercial use only. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child. Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a child. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer. Do not operate where aerosol (spray) products are being used or where oxygen is being administered. Never operate this furnishing if it has a damaged cord or plug, it is not working properly, it has been dropped or damaged, or it has been submerged in water. Keep the cords away from heated surfaces. Protect the power cord from being walked on or pinched. Never operate the furnishing with the air openings blocked. Keep the air openings clean. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Keep hands away from moving parts while operating device. For support please call customer care at 1-800-865-2112.
The mounting system has no user serviceable parts.
Symbols
WARNING

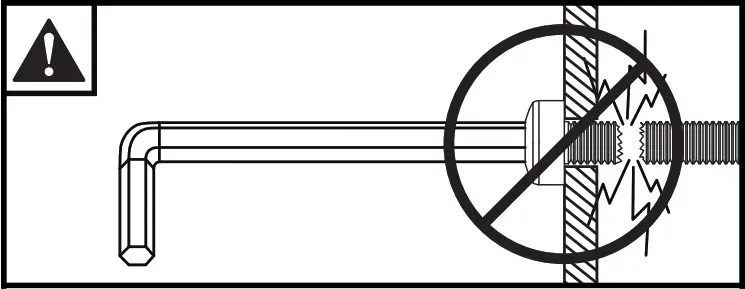

Do not overtighten screws.

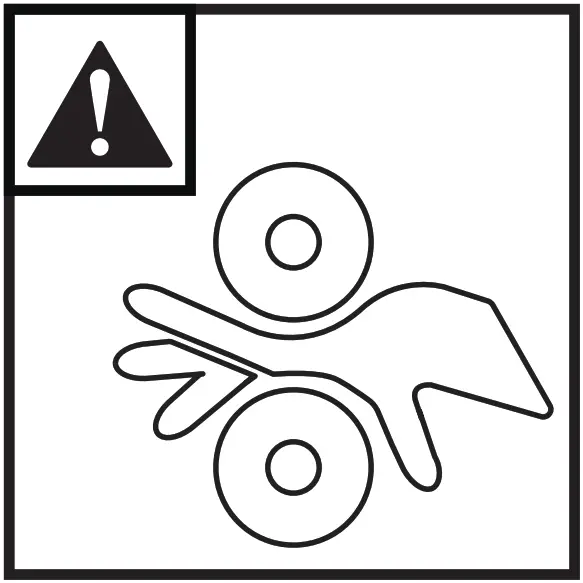

Pinch point

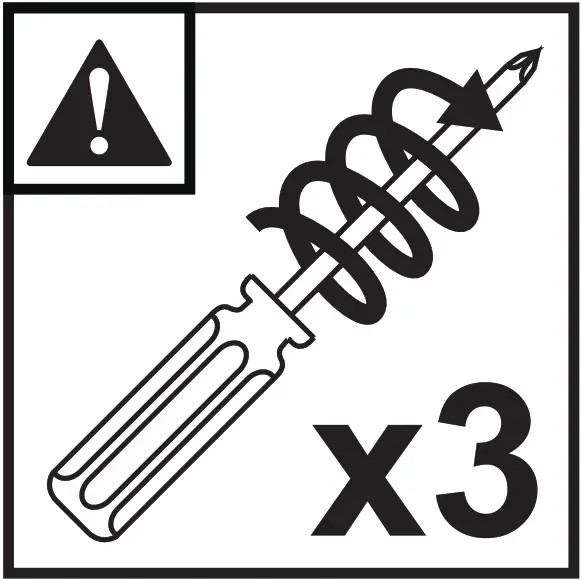

Screws must get at least three full turns and fit snug.
Tools Needed for Assembly.

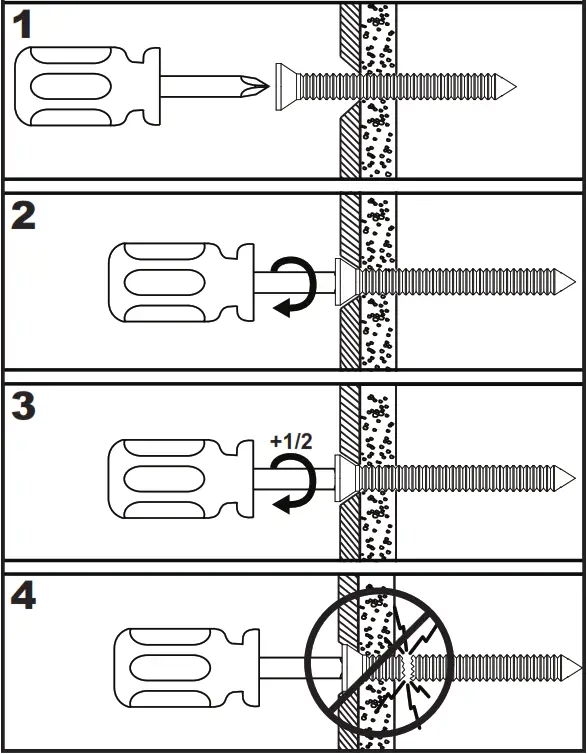

To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws.
This page intentionally left blank.

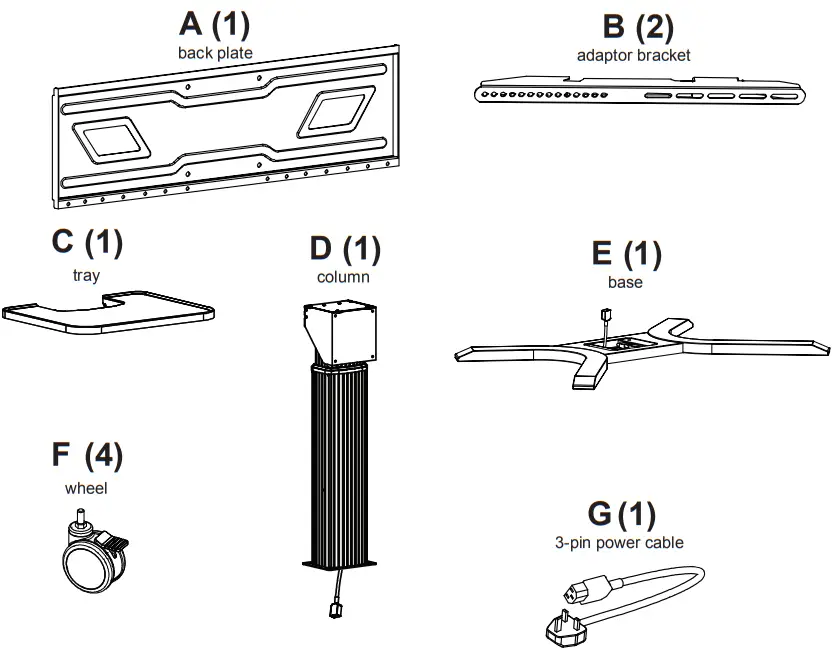

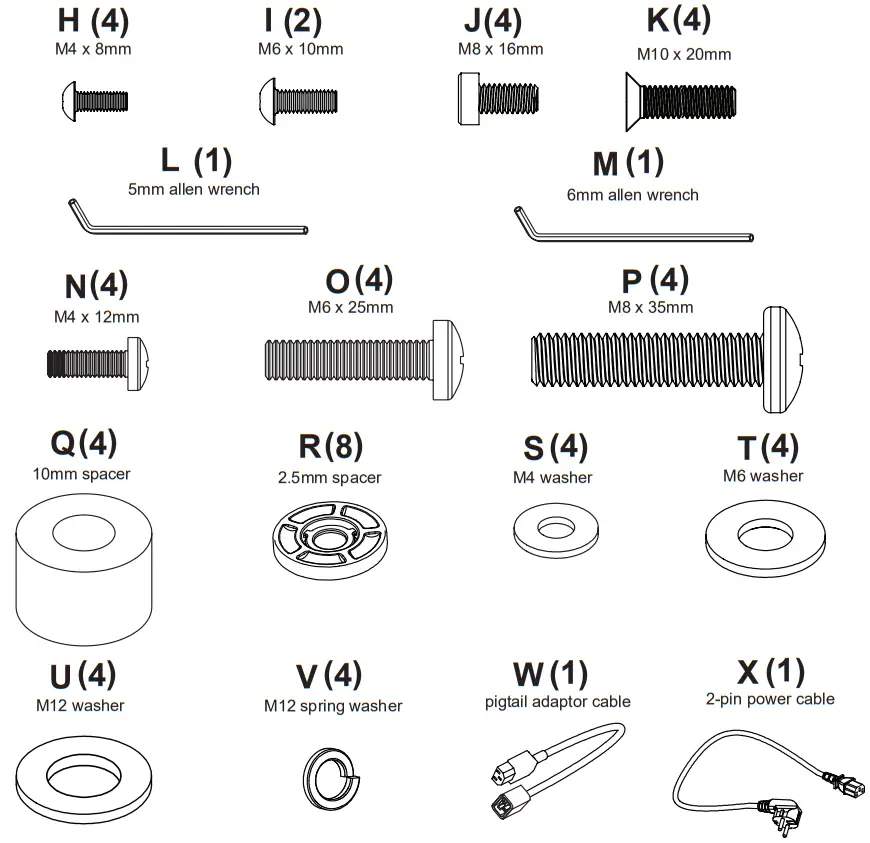

Parts (Before beginning, make sure you have all parts shown below).
Parts List
| Description | Qty | |
| A | back plate | 1 |
| B | adaptor bracket | 2 |
| C | tray | 1 |
| D | column | 1 |
| E | base | 1 |
| F | wheel | 4 |
| G | 220V, 50Hz 3-pin UK power cable | 1 |
| H | M4 x 8mm | 4 |
| I | M6 x 10mm | 2 |
| J | M8 x 16mm | 4 |
| K | M10 x 20mm | 4 |
| L | 5mm allen wrench | 1 |
| M | 6mm allen wrench | 1 |
| N | M4 x 12mm | 4 |
| O | M6 x 25mm | 4 |
| P | M8 x 35mm | 4 |
| Q | 10mm spacer | 4 |
| R | 2.5mm spacer | 8 |
| S | M4 washer | 4 |
| T | M6 washer | 4 |
| U | M12 washer | 4 |
| V | M12 spring washer | 4 |
| W | pigtail adaptor cable | 1 |
| X | 220V, 50Hz 2-pin power cable | 1 |

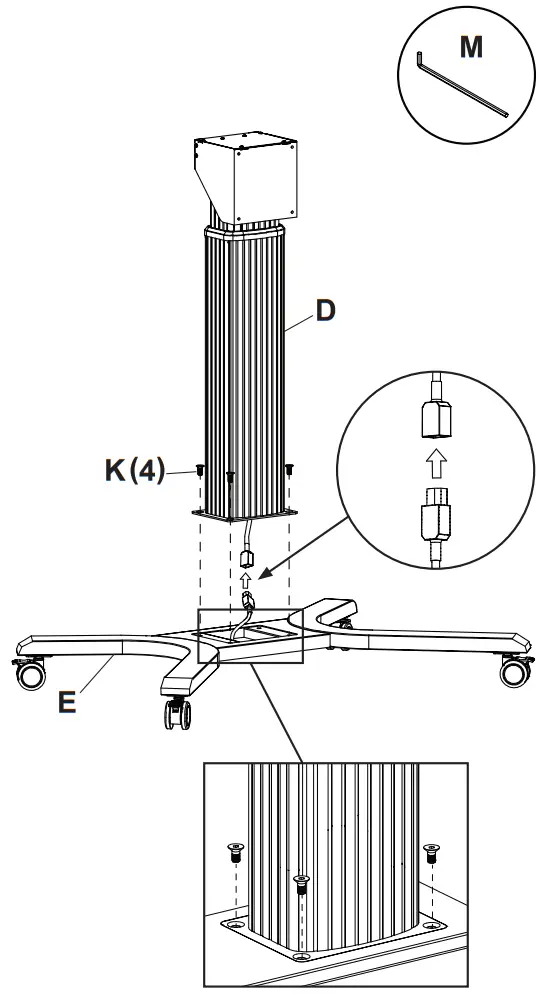

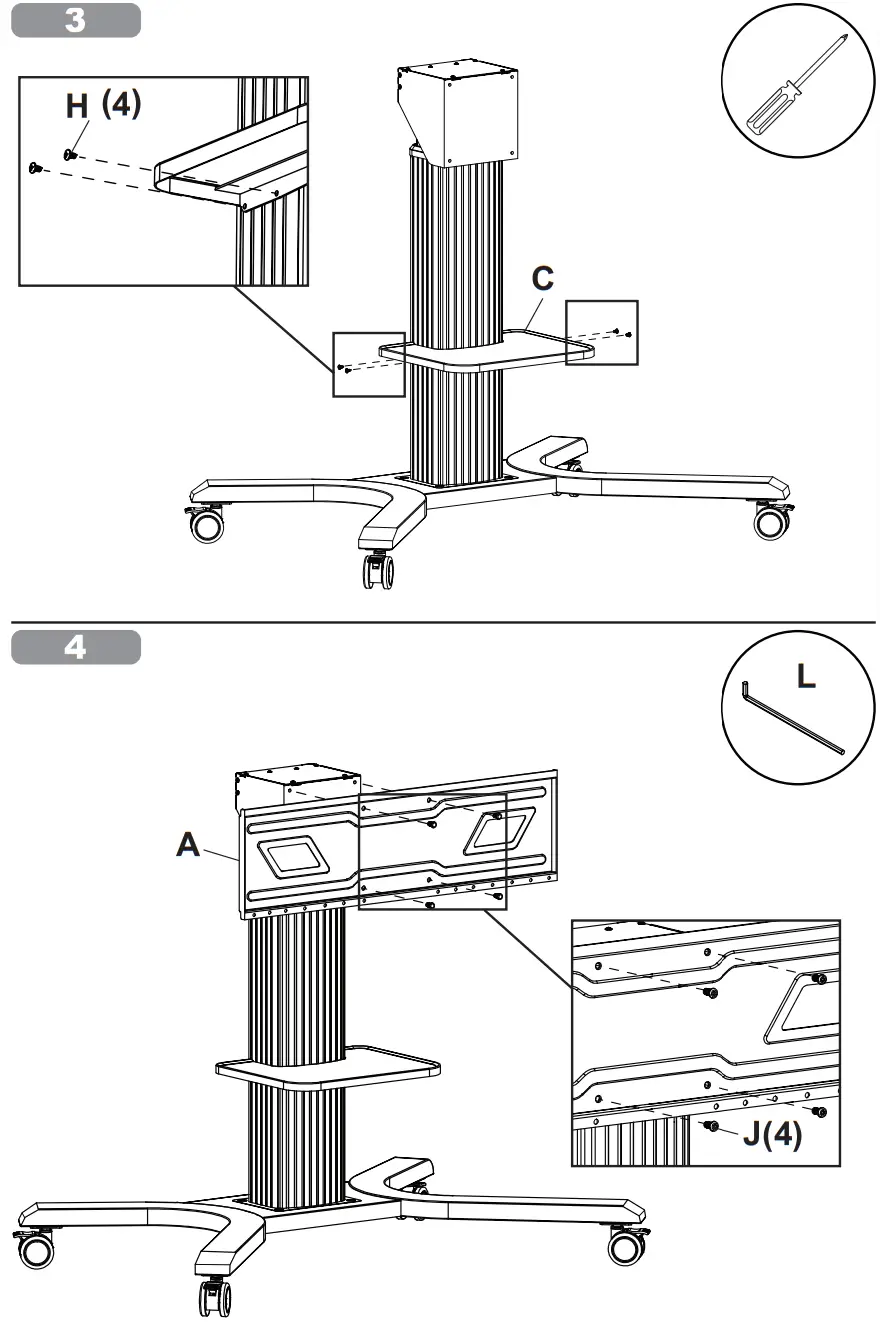

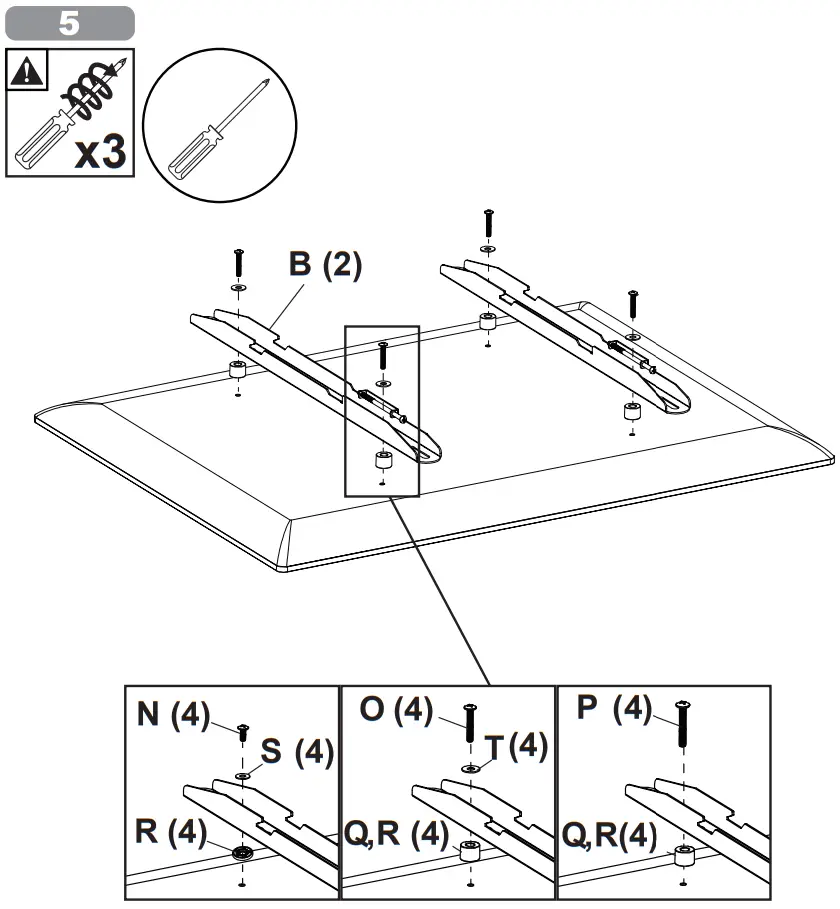

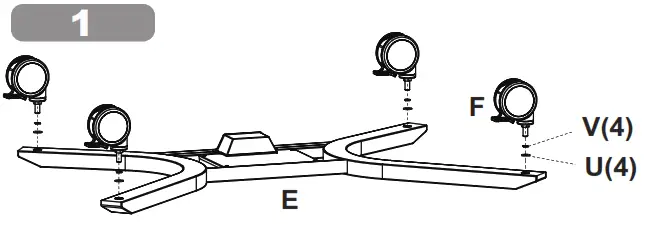

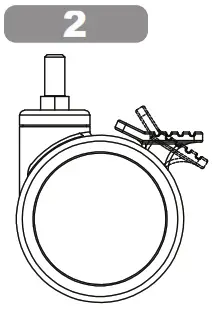

Lock wheels.
Caution: When rolling device, set to lowest position and use handles.

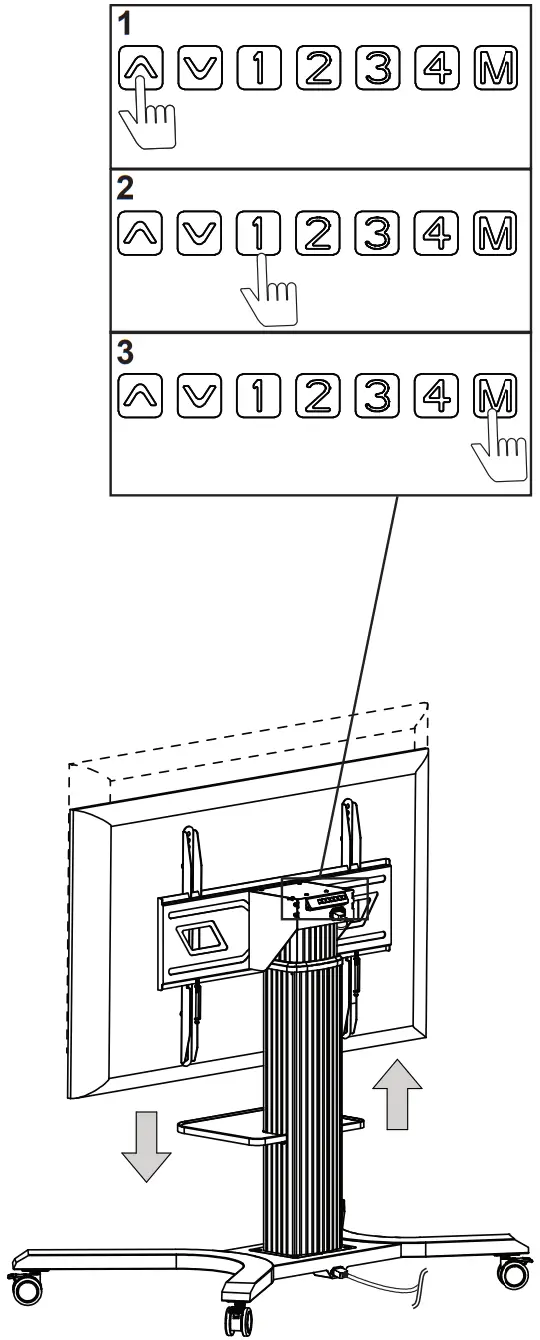

Use arrows to determine desired height. Select number to use as a preset height. Press M to save the preset.
