H Koenig Nv6400 Floorcare Steam Cleaner Instruction Manual

nv6400 Floorcare Steam Cleaner
Instruction Manual

Nettoyeur Vapeur

https://www.hkoenig.com/s/43953_318267_nettoyeur-vapeur

CAUTION

Warning

• Never self-disassemble and repair
• The only qualified operator is allowed to use it. Never let children play with it
• Please keep this appliance away from the immersion and water spray
• Never use the appliance when the power cord and power plug is damaged or the socket is loose
• Check if the input power supply is in compliance with the requirement–220 voltage
• Never damage the power cord (such as excessive bending, stretching, and twisting)
• Must use separate specifications of more than 15A socket
• Never touch the plug, cable, or operate the appliance with your wet hand.

Attention

• Never touch the nozzle during or after using this appliance or when the steam is not fully cooled off
• The power plug should be pulled off when you finished using this appliance.
• Never open the safety valve during using this appliance
• Never let the power plug be stained with unclear materials
• Never use it on unstable and heat-resisting materials.
• Never let the water tank be empty after power-up
• Never damage the power supply. for example: unplug the plug smoothly and straightly after use, but don’t pull the cable.
• Never make the appliance’s body upside down after power-up

PLEASE READ THE INSTRUCTIONS CAREFULLY

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid any hazard.
2. This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.
3. Children should be supervised to ensure that they do not play with the appliance.
4. The appliance has to be unplugged after use and before cleaning or user maintenance of the appliance.
5. Do not use swimming pools containing water.
6. WARNING – Danger of scalding
7. Liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens.
8. The filling aperture must not be opened during use
9. Only fill water into the water tank, and never attempt to fill in any detergent or other liquid (If the stain is serious, you can use the detergent directly on the stain or attached to the brush to clean it.
10. Please do not prolong continuous use in the same location because the steam causes high temperature
11. The device must not be used if it has been dropped, if obvious signs of damage are visible, or if it has leaks.
12. Never attempt to use steam to clean following surfaces :
    · Leather products
    · Wax furniture and bed, link (remove wax)
    · Wooden products surface with decoration
    · Synthetic fiber, silk, hemp, or deep color cloth products
    · Glass products under an environmental temperature below 0 ℃, using high-temperature steam may burst. (in winter please try not to use) in glass
    · Plastic products (happen deformation or discoloration, etc.)
    · Not suitable for water vapor and high temperature of goods or products (heat-resisting items)
    · Mattress, cushion, no coating, and wallpaper absorb water easily, etc.
13. This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
14. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
15. Keep the appliance and its power cord out of reach of children under 8 years of age.
16. When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock, and/or injury in the event of misuse.
17. Make sure that the voltage rating on the type plate corresponds to the main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit
18. Never leave the unit unattended while in operation.
19. Please keep this document at hand and give it to the future owner in case of transfer of your device
20. The device must not be used if it has been dropped, if obvious signs of damage are visible or if it has leaks.
21. Never open the appliance from the front, always position yourself slightly to the side to avoid burning yourself with steam.
22. Disconnect the steam cleaner before cleaning, repairs, or maintenance.
23. The steam must not be aimed directly at electrical equipment, main cables, or parts containing electrical components (for example inside ovens, fridges, switches and lights, microwave ovens, screens).

Your appliance has been designed for domestic use only.
It is not intended for use in the following situations which are not covered by the warranty:

• in staff kitchen areas in shops, offices, and other professional environments,
• in farm hostels,
• by guests in hotels, motels, and other residential environments,
• in bed and breakfast-type environments.

Special Caution

• Never jet steam against people or any animal, and never attempt to touch steam and the steam nozzle
• Please store this appliance in which children cannot get it
• Please open the safety valve until the cooling

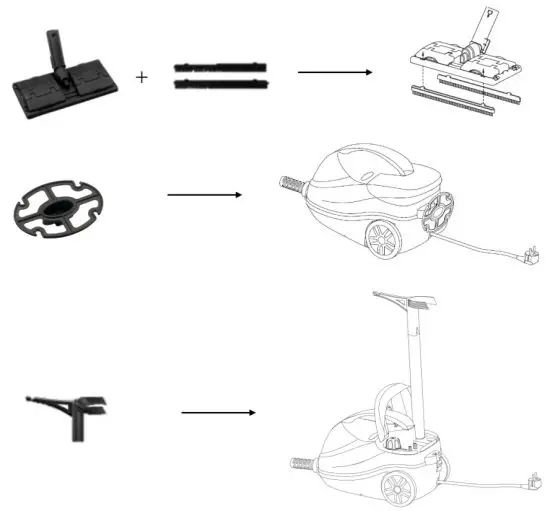

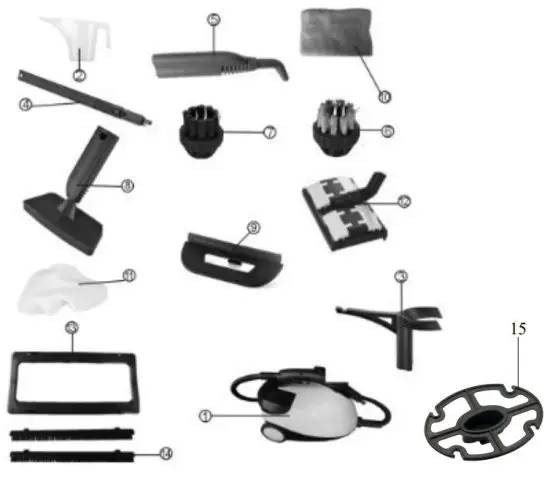

COMPONENT

A: The figure of the multifunctional steam cleaner and the accessories

Carpet and rug accessories

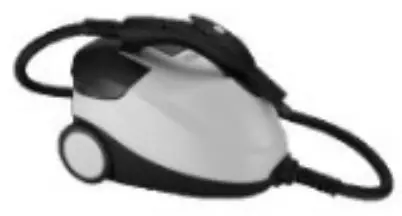

B: Accessory compartment
The steam hose with steam gun must be connected to the appliance, and the desired accessory must be attached before the steam can be used. The steam cleaner has an accessory compartment that houses the big nozzle, round brush.

1. Measuring cup
   Steam cleaners must always fill with water before using them. Please use the measuring cup to fill the water in the boiler. Do not exceed the maximum filling capacity. Refer to the water capacity line in the measuring cup.
   Remark:
   * Revolve the safety valve tight once the water is full. Do not overfill. Max is 1.5L.
   * If the red light show on, it means there is short of water, please turn off the power and wait to cool before opening the safety valve.
2. Extension Tube
   Assemble the extension tube if the steam cleaner is to be used to clean floors or high-place windows or difficult-to-reach areas. To do this, push the open end of the tube into the steam gun until the release button of the steam gun clicks into place. And one or two extension tubes if required. Press in the appropriate release button and pull the tubes apart with a download movement to take the extension tube off.

3. Big nozzle
   This nozzle makes it possible to clean hard-to-reach places such as corners, joints, and toilets with ease. Simply push the bent nozzle firmly into the gun directly.

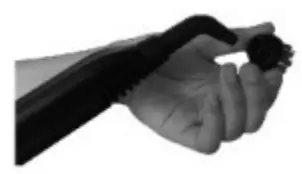

4. Metal round brush and nylon round brush
   The metal and nylon round brushes are pushed firmly into the bent nozzle in the same way. Even the most stubborn dirt can be removed. e.g. blinds, central heating radiators, valves, etc. Please use a small mental brush. The nylon brush is suitable for heating staining on less sensitive materials such as stainless steel or stone. Simply pulling off with a downward movement can remove it directly.

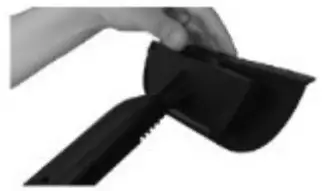

5. Window brush
   To clean windows, mirrors, or tiles with smooth surface objects, please use the window brush which is with a rubber blade combined with a brush sprayer to clean.

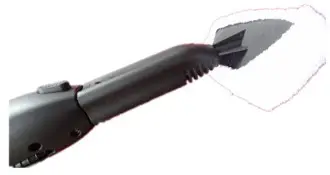

6. Ironing brush
   To iron the cloth, please use the brush to push firmly in the gun. Besides, you can put the extension tube in the machine and hanger the clothes hanger to the extension tube directly.
7. Floor brush
   Attach the floor brush nozzle to the end of the extension tube. Ensure that nozzle clicks into place on assembly. The floor brush is ideal for cleaning washable walls and floor coverings. It may be used with or without a towel. Pressure on the inner side of the holder, and open the clips to add the towel in place.

OPERATION

1. Assembling the related accessories.
2. Use the measuring cup to fill the water. Max is 1.5L. Revolve the safety valve tight before powering on.
   Special attention
   *please try your best to select the clean water.
   *Please do not use any alcohol, or detergent to fill in it.
3. Preparation to use
   *Using the power plug in the socket (please check if the voltage is 220-240V).
   (1) Turn on the ON/OFF switch. Light will show red.
   (2) Indicator light shows Green means the pressure is getting to the setting data (4Bar.). The steam is ready to use.
4. Use your thumb to press down the steam switch.
   *You can check there is a children’s ON/OFF lock. If it is on the OFF side, there is no steam. You need to push down directly.
   *If you need to use continuous, you need to press down the steam switch continuously.
5. Power off the machine
   After use, close the power switch. Pull out the plug from the socket. Please wait for cooling before opening the safety valve. And do pull the water away before storing it.

STORAGE AND CLEANING

* Do not store in a warm place
* Store it in a dry place and without light
* Remember to remove the water each time you have finished using it to avoid chemical reactions.
Always disconnect and allow the unit to cool before cleaning.
CAUTION: Never immerse the device in water or any liquid.
* Clean the outside of the elements with a damp cloth and a little dishwashing liquid if necessary. Wipe well with a dry cloth. Do not use aggressive cleaning agents or abrasive sponges.
* It is recommended to descale the device regularly (once a month) for better performance. For this purpose, use vinegar or another suitable descaling product.

TROUBLESHOOTING

Do not use it in unusual situations. Please contact the company’s sales or after-sale service center. Do not repair it at home, otherwise, it may cause danger.

TECHNICAL SPECIFICATION:

ACCESSORY

ENVIRONMENT

CAUTION:
Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.
Adeva SAS / H.Koenig Europe – 8 rue Marc Seguin – 77290 Mitry Mory – France
www.hkoenig.com – [email protected] – [email protected] – Tél: +33 1 64 67 00 05
