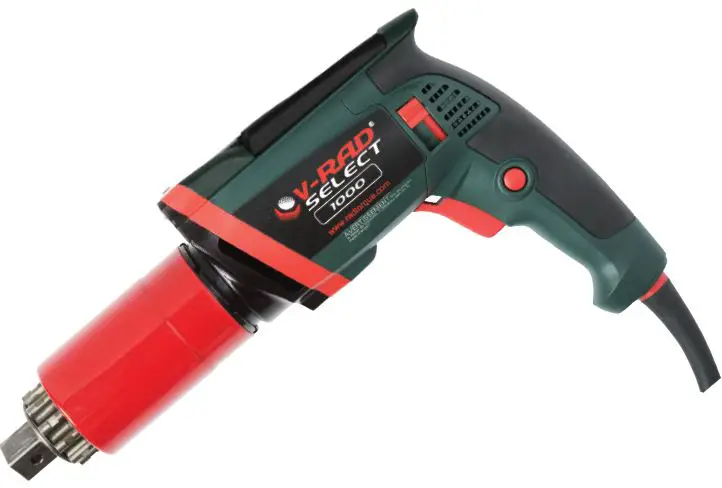

RAD TORQUE SYSTEMS V-RAD SELECT 1000 Electric Powered Bolting Tool
INTRODUCTION
V-RAD Select electric series are a new generation of electric torque wrenches used for the installation or removal of heavy duty fasteners where accuracy, power, and safety are required. Quick adjust torque settings. Equal power in forward and reverse.
- Now with digital torque settings, able to increase and decrease the value by 10 ft. lbs.
- Torque ranges up to 3,000 ft. lbs.
- Availa e in both 120V or 230V

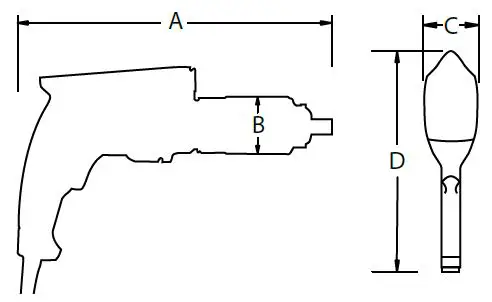

DIMENSION
| PART NUMBER | TOOL MODEL | DRIVE SIZE | TORQUE (ft. lbs.) LOW HIGH | RPM | WEIGHT (lbs.) | DIMENSION A | DIMENSION B | DIMENSION C | DIMENSION D | |
| 25628 | V-RAD SELECT 1000 | 0.75″ | 100 | 1000 | 8.8 | 8.6 | 12″ | 2.5″ | 2.9″ | 8″ |
| 25629 | V-RAD SELECT 1500 | 1.0″ | 150 | 1500 | 5.7 | 9.6 | 12.5″ | 2.7″ | 2.9″ | 8″ |
| 25631 | V-RAD SELECT 3000 | 1.0″ | 300 | 3000 | 2.7 | 13.7 | 13.5″ | 3.1″ | 3.1″ | 8.” |
Accuracy of +/–5%, Repeatability of +/–2%
