WindowMaster WSA 311 Smoke Detector
WSA 311 install 2104_EN_DE_DK ©WindowMaster 2021 ®WindowMaster is a registered trademark used under the license by WindowMaster International A/S WindowMaster International A/S, Skelstedet 13, DK 2950 Vedbæk

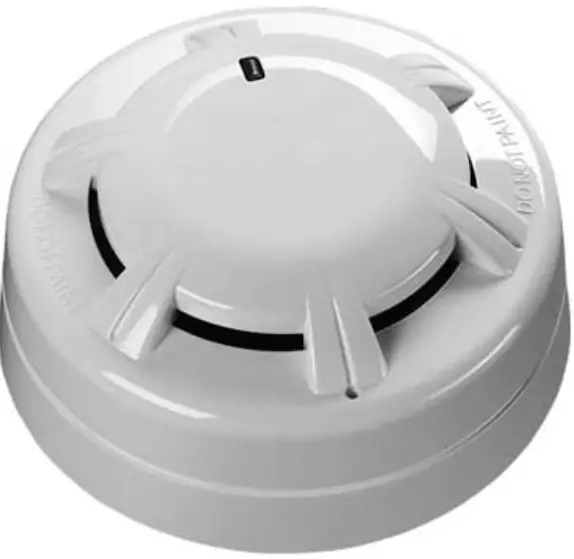

Description
Smoke detector for early fire detection with visual signal on the detector itself via red LED. Incl. mouting base.

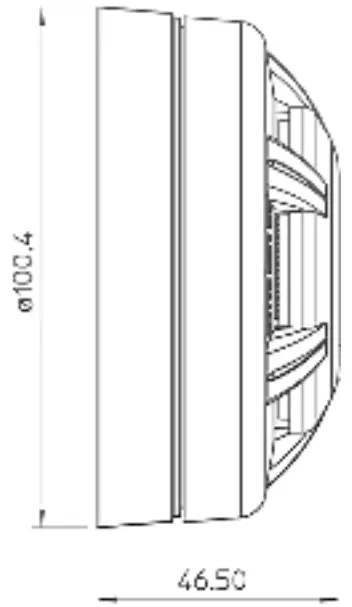

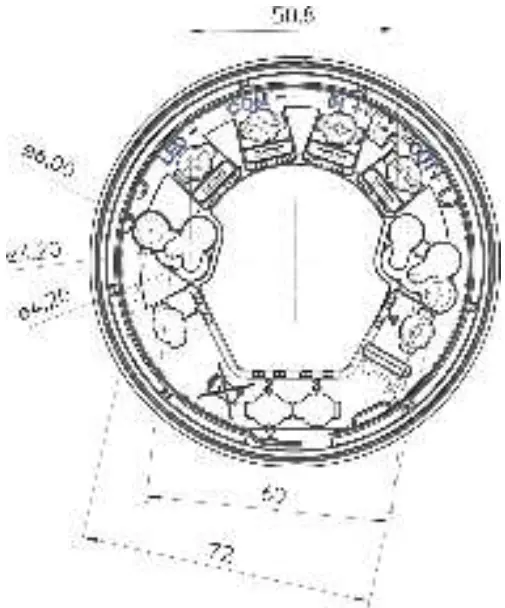

Mounting
Note: installation always horizontally beneath the ceiling.

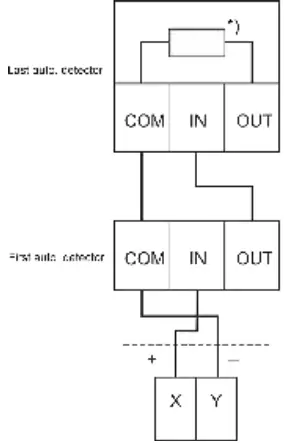

Wiring
LED status
| Feature | Description of feature | Red LED status | Yellow LED status |
| Start Up™ | Confirms that the detectors are wired in the correct polarity | Flashes once per second | No Flash |
| FasTest™ | Maintenance procedure, takes just 4 seconds to functionally test and confirm detectors are functioning correctly | Flashes once per second | No Flash |
| Dirt Alert™ | Shows that the drift compensation limit has been reached | No Flash | Flashes once per second in StartUp (Stops flashing when StartUp finishes) |
| Sens Alert™ | Indicates that the sensor is not operating correctly | No Flash | Flashes every 4 seconds (Flashes once per second in StartUp) |
| Normal operation | At the end of Start Up and Fas Test (without flashing LED as standard) | No Flash | No Flash |
| Flashing LED version | Detector’s red LED flashes in normal operation (at the end of FasTest) | Flashes every 4 seconds | No Flash |
Important information
- The packaging can be disposed of together with ordinary household waste.
- Electrical products must be disposed of in conformity with national regulations for electronic waste and not with usual household waste.
- In case of technical problems, please contact WindowMaster.
