Item #100 658 8682,100 658 8671
Model #FRN-312640-D-T, FRN-312640-D-C
USE AND CARE GUIDE
______________

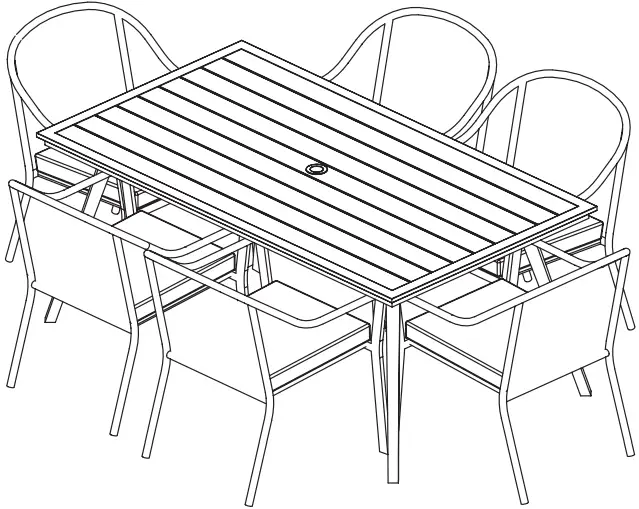

HEATHER GLEN 7 PIECE DINING
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-841-1350
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Important Safety Instructions
READ ALL INSTRUCTIONS BEFORE USE
To reduce the risk of injury to persons:
- Close supervision is necessary when this furnishing is used by or near children, or disabled persons, if applicable.
- Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
- This table is not intended to support an umbrella. Umbrella must have suitable base or stand.
SAVE THESE INSTRUCTIONS.
DANGER: Keep children out of the assembly area during assembly.
CAUTION: Do not use sharp equipment such as a knife and scissors when removing the protective material, as it may damage the product.
WARNING: Do not sit or stand on the table. WARNING: Do not stand on the chairs.
Warranty
TWO YEAR LIMITED WARRANTY
WHAT IS COVERED
The frame is warranted to be free of manufacturing defects for two year from the purchase date. If the frame of your furniture fails (ie. broken frame or weld) within two year of ownership, Hampton Bay will repair, provide replacement parts, or replace the product at our option. Frame finishes are warranted against blistering, cracking, or peeling for two year from purchase date. This is a residential use warranty only. Warranty is void when product is used for commercial settings. This warranty is a limited warranty and applies to the original purchase only. Proof of purchase is required.
Contact the Customer Service Team at 1-800-841-1350 or visit hamptonbay.com
Care and Cleaning
- Use mild soap and warm water to clean the frames.
- Rinse with clean water and dry thoroughly.
- Be sure to drain any water accumulated inside the frames. To thoroughly drain frames, remove footcaps and tilt frames, if necessary, to remove all water. Water allowed to accumulate inside the frames and then exposed to sub-freezing temperatures can cause damage to frame tubing. Such damage caused by conditions other than normal is not covered under warranty.
- Any rust spots should be lightly sanded and treated with rust inhibitor and followed with an application of touch-up paint (not included).
Assembly
PLANNING ASSEMBLY
Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware Included lists. If any part is missing or damaged, do not attempt to assemble the product, and return it to the place of purchase. Assembly requires two people.
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC
| Part | Description | Quantity |
| AA | Bolt M6*22mm | 16 |
| BB | Washer | 16 |
| CC | Hex Wrench | 1 |
PACKAGE CONTENTS
A B
F
| Part | Description | Quantity |

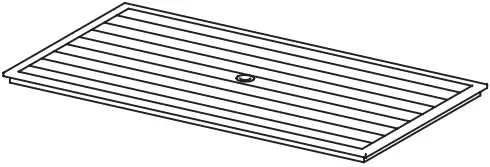

| A | Table Top | 1 |
| B | Table Leg | 4 |

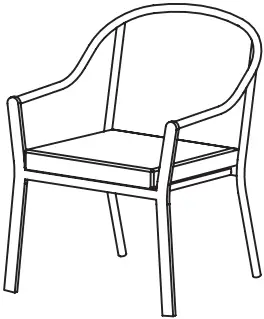

| F | Chair | 6 |

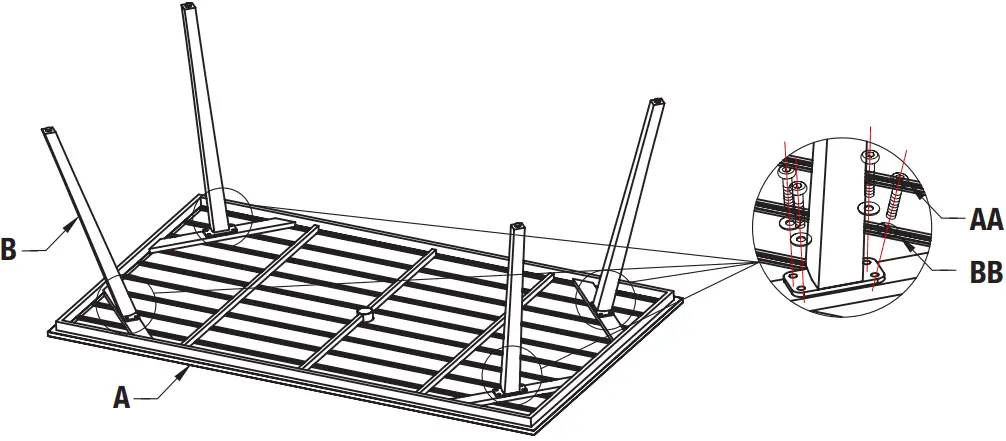

1 Attaching the legs to the table top
- Place all parts on a flat, clean surface.
- Place the Table Top (A) upside down on a soft, clean surface.
- Attach the Table Legs (B) to the Table Top (A), using the Bolts (AA) and Washers (BB).
- Please make sure Table Legs (B) are in the correct direction as drawing below. Then tighten all bolts with the Hex Wrench (CC).
2 Completing the Assembly

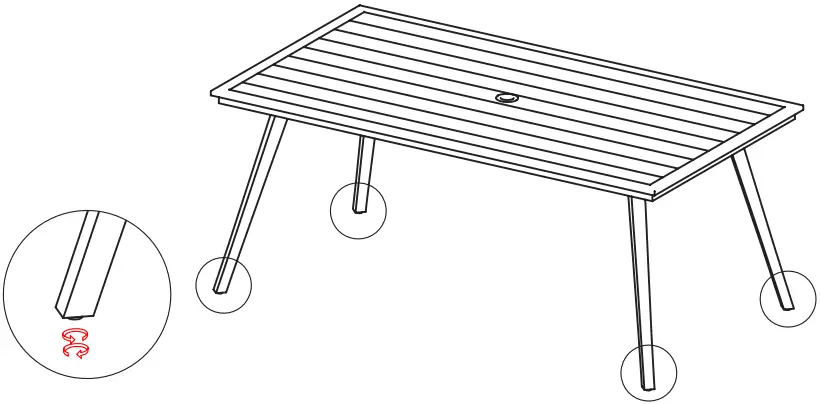

- Turn the table over, then adjust self leveling feet on the table for equal balance (as shown).
- Now the table is ready for use.
For certification use only
Factory chair ID # FRN-312640-SC
Factory table ID # FRN-312640-T
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-841-1350
Retain this manual for future use.
Hampton Bay - The Home Depot
