Olight Superior Tactical Thrower User Manual

Olight Superior Tactical Thrower User Manual

OLIGHT Superior Tactical Thrower

Warrior X Pro
Superior Tactical Thrower

MARKET APPLICATIONS
Hunting, search and rescue, law enforcement, etc.

UPC: Black 697237812071 7
Desert Tan 697237812078 6
OD Green 697237812079 3

DESCRIPTION

The Warrior X Pro is the upgraded version of Olight’s revolutionary Warrior X. Using an updated high discharge 5000mAh 21700 lithium battery, the Warrior X Pro is capable of producing a maximum of 2,250  lumens for up to 600 meters of throw and delivering a 2A current for 100% faster charging than Warrior X.  While retaining the classic features of the Warrior X’s sturdy, aggressive appearance, as well as the vibration battery indicator, silicone tactical ring, and optional magnetic remote switch, the Warrior X Pro features a  redesigned raised tail switch for an unprecedented intuitive operation experience. The IPX8-rated aluminum alloy body sports a pronounced knurling pattern for a better grip. With unbeatable performance and indestructible build, the Warrior X Pro is ideal for the professional choice of hunting, search and rescue, or while on duty. OLIGHT Superior Tactical Thrower High Performance

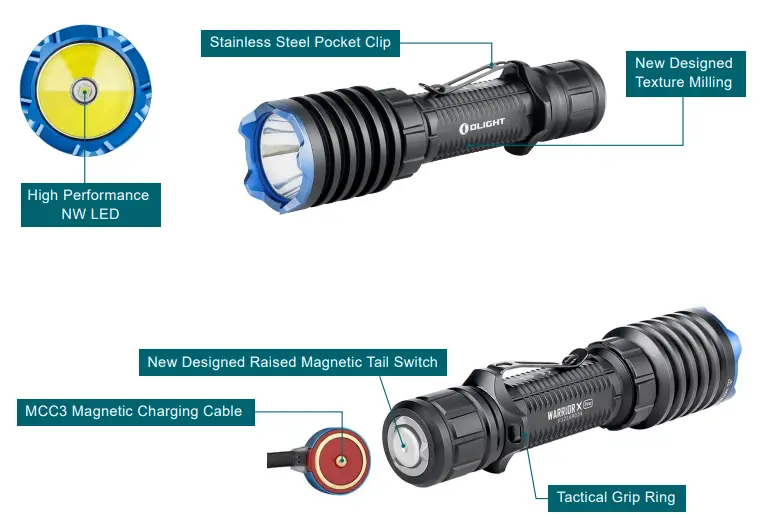

FEATURES

  • Using a customized 5000mAh 21700 lithium battery, the Warrior X Pro produces an incredible 2,250-lumen output and 600-meter throw allowing you to see in any harsh situation.
  • The redesigned raised tactical tail switch comes with stronger magnetism, and aggressive body knurling for a firmer grip, giving you a simpler interface and operation experience than ever.
  • Quickly get back in action with the super-efficient MCC3 charging cable which holds a 2A current for 100% doubled faster charging than Warrior X.
  • Sturdy Heavy-duty build with a thick IPX8-rated aluminum alloy body, making it tough enough to endure a harsh 3-meter drop test.
  • All tactical classics in one: vibration battery indicator, silicone tactical ring, etc. Just feel the sensation of absolute robustness in your hand.

OUTPUT

SPECIFICATIONMode 1Mode 2
lumens2,250 z
1,000 z 300
lumens
300 lumens
minutes2+100+23
minutes
8 hours
meters600 meters220 meters
cd90,000 cd12,100 cd

Note:

  1.  All data above are test results according to ANSI NEMA FL 1-2009
    standards.
  2. The data above uses the standard 5000mAh 21700 rechargeable battery and is measured indoors under a  room temperature of 25 degrees Celsius with windless conditions.

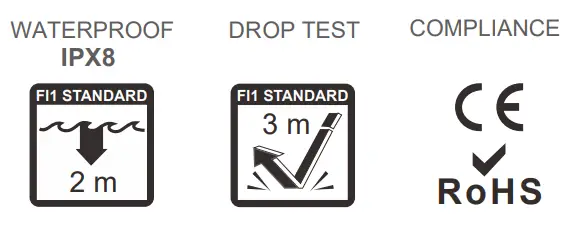

OLIGHT Superior Tactical Thrower WATERPROOFLIGHT SOURCE
High-Performance Neutral White LED
DIMENSIONS
Length: 5.87in/149mm
Head Diameter: 1.54in/39mm
Body Diameter: 1.03in/26.2mm
WEIGHT
8.43oz/239g (including battery)
BODY MATERIAL
Aluminum Alloy(main body)
POWERED BY
Customized 5000mAh 21700 Battery (included)
WARRANTY
Olight’s 5 Years Warranty
(1 year for the battery&charging cable)
Visit: https://olightworld.com/olight-warranty
IN THE BOX
Warrior X Pro(Battery Included) x 1
Stainless Steel Pocket Clip x 1
MCC3 Magnetic Charging Cable x 1
Tactical Grip Ring x 1
Lanyard x 1
User Manual x 1
Holster x 1
OPTIONAL ACCESSORIES
RWX07 Remote Switch(For Rifle)
RWX Remote Switch(For Shotgun)
E-WM25 Flashlight-Weapon Mount

olightworld.com © OLIGHT 01/13/20 V3
Made in China
Note:There are slight differences between the picture and the real item caused by light color temperature. All the pictures are for reference only.
