1000 Seizmik Fender Flare
User Manual
1000 Seizmik Fender Flare
Always observe the warnings and precautions in this manual when using your Seizmik products. For best results, carefully follow the instructions in this manual and make no modifications.
If you have any questions, or comments, need assistance, or are missing parts, please call 1-866-838-3366 between 9:00 AM and 5:00 PM EST. You can email us at [email protected]

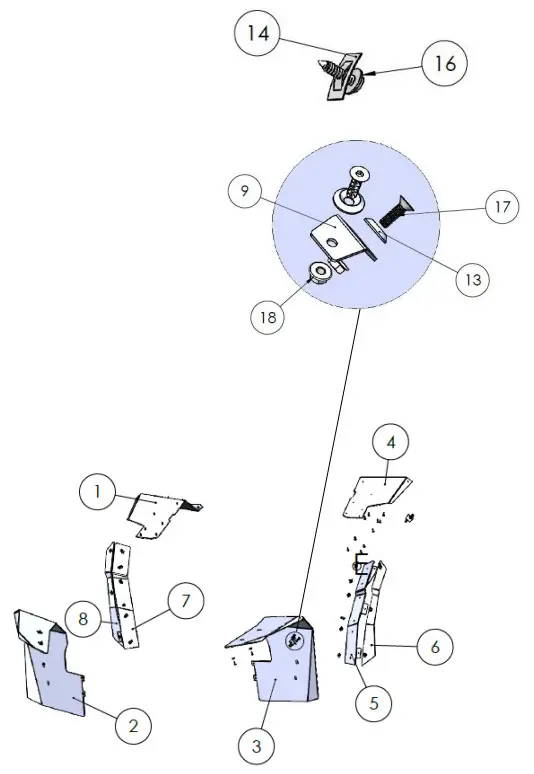

| ITEM NO. | Description | PART # | QTY. |
| 1 | SP_FF05_P1_01 Pass Rear Fender | 67-10028 | 1 |
| 2 | S_FF05_P2_03 Pass Front Fender | 67-10024 | 1 |
| 3 | SP_FF05_P3_03 Driv Front Fender | 67-10025 | 1 |
| 4 | SP_FF05_P4_01 Driv Rear Fender | 67-10029 | 1 |
| 5 | SP_FF05_P5_02 Driv Mid Inner Fender | 67-10026 | 1 |
| 6 | SP_FF05_P6_02 Driv Mid Outer Fender | 67-10027 | 1 |
| 7 | SP_FF05_P7_02 Pass Mid Inner Fender | 67-10023 | 1 |
| 8 | SP_FF05_P8_02 Pass Mid Outer Fender | 67-10030 | 1 |
| 9 | SP_FF05_B1_01 Driv Front Bracket | 67-10032 | 1 |
| 10 | SP_FF05_B2_01 Driv Rear Bracket | 67-10034 | 1 |
| 11 | SP_FF05_B3_01 Pass Front Bracket | 67-10031 | 1 |
| 12 | SP_FF05_B4_01 Pass Rear Bracket | 67-10033 | 1 |
| 13 | Countersunk Washer | 54-96019 | 14 |
| 14 | Push Nut | 54-96013 | 14 |
| 15 | Plastic Push Rivet | 54-96010 | 2 |
| 16 | M5x2Omm Sheet Metal Screw | 54-96011 | 38 |
| 17 | M6x20mm Countersunk Bolt | 54-96012 | 14 |
| 18 | M6 Hex Flange Nut | 54-960135 | 16 |
| 19 | Hex Flange Screw M6x2Omm | 99-10007 | 2 |

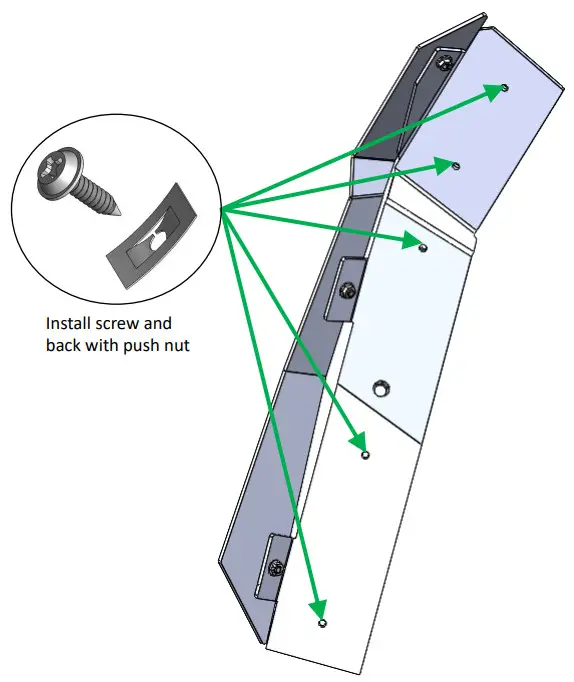

Screw directly into the vehicle body, may or may not back with push nut

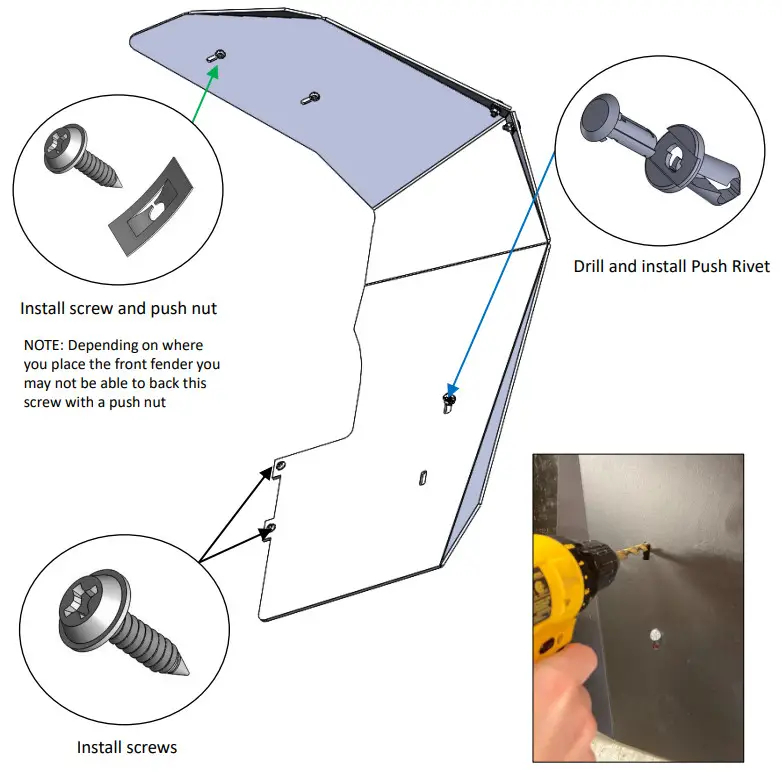

Use a 3/8” drill bit to drill into the body of your vehicle and install push rivet
Metal Bracket, go to page 4
Remove stock fastener and re-install with fender flare

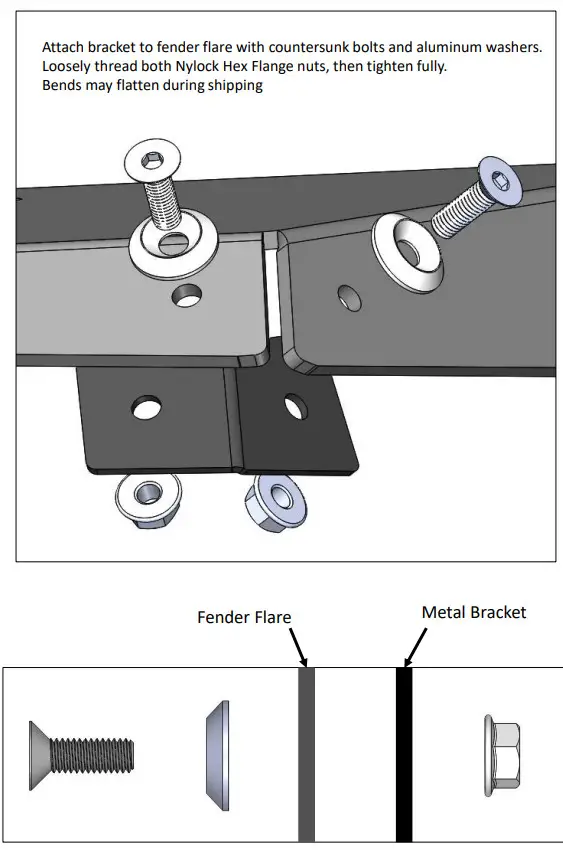

Install a countersunk bolt, washer, and M6 nut
Install all brackets

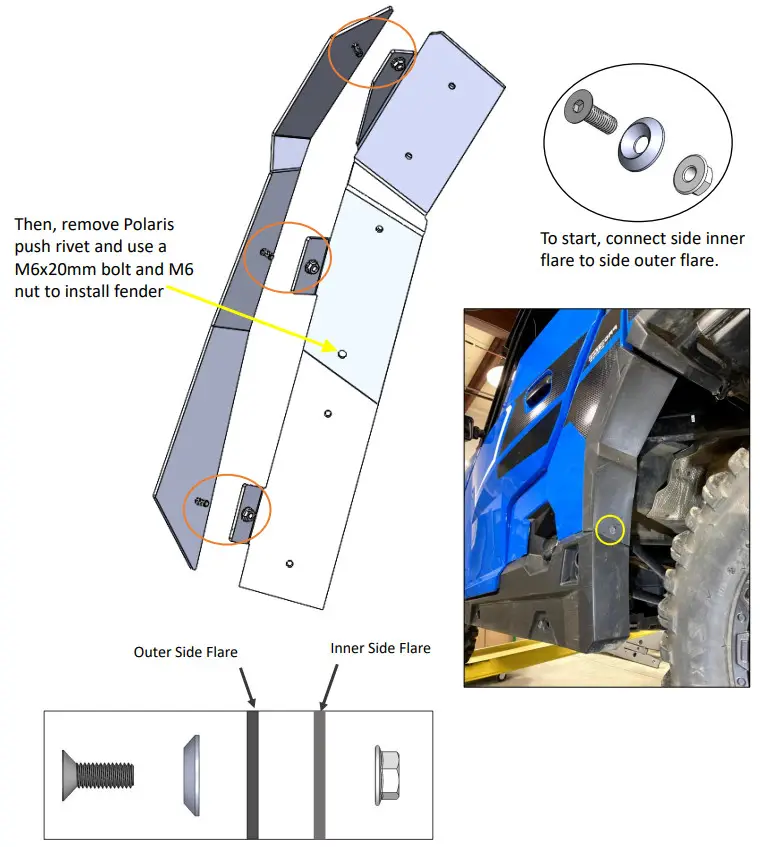

Middle Fender

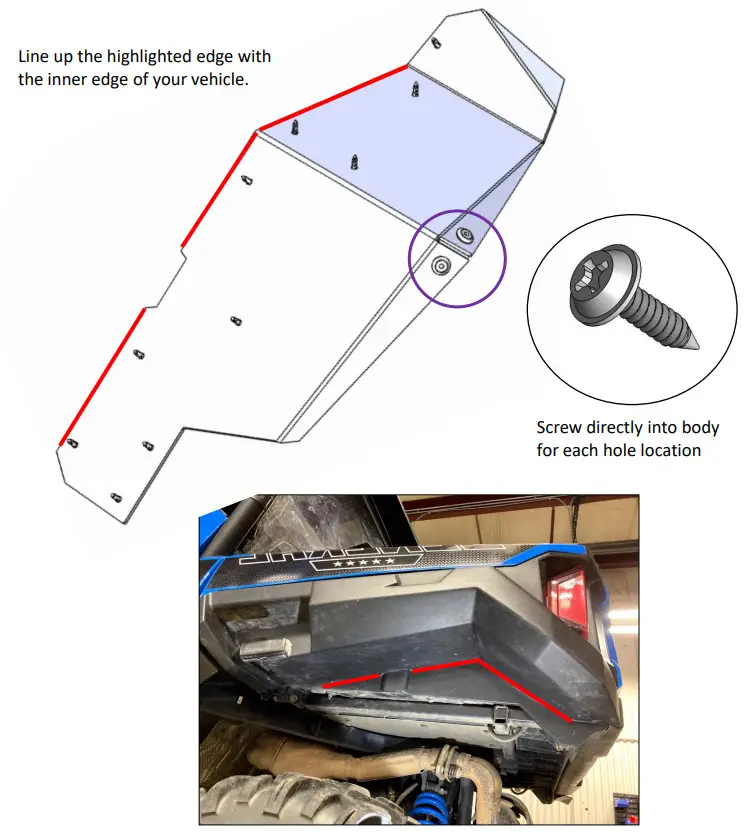

Rear Fender

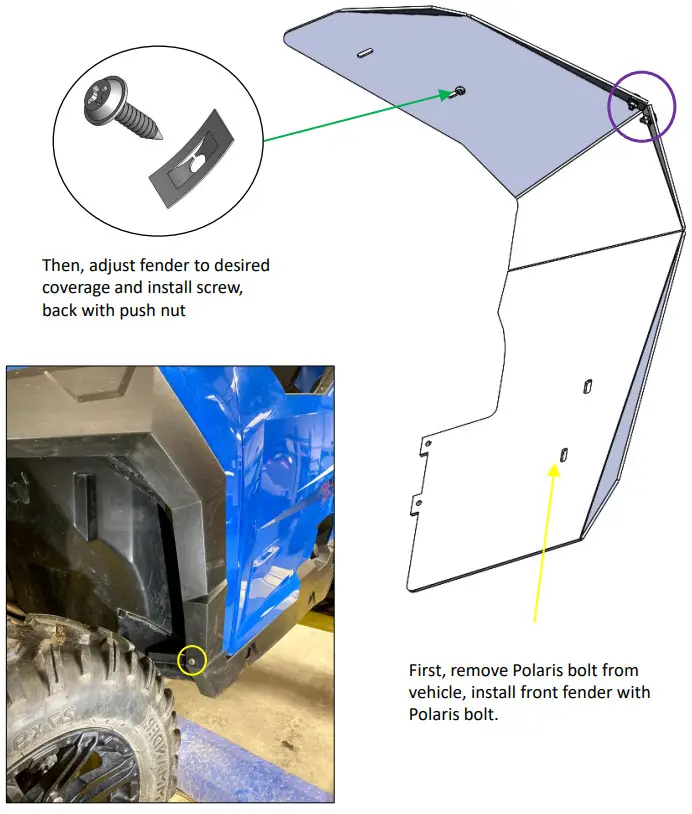

Front Fender
