SEIZMIK 67-10009 Fender Flare
Always observe the warnings and precautions in this manual when using your Seizmik products. For best results, carefully follow the instructions in this manual and make no modifications.
If you have any questions, comments, need assistance, or are missing parts, please call 1866 838 3366 between 9:00AM and 5:00PM EST. You can email us at [email protected]
Parts
INSTRUCTION
- Screw directly into vehicle body,back with push nut
- Use a 3/8” drill bit to drill into body of your vehicle and install push rivet
- Metal Bracket, go to page 3
- Remove stock fastener and re install with fender flare
Install all brackets

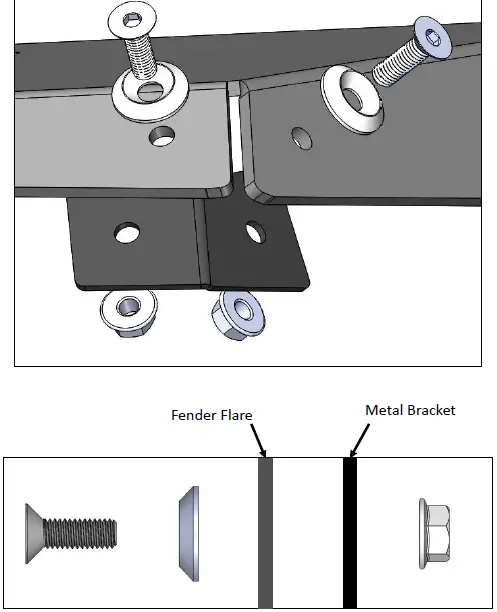

Attach bracket to fender flare with countersunk bolts and aluminum washers.
Loosely thread both Nylock Hex Flange nuts, then tighten fully. Bends may flatten during shipping

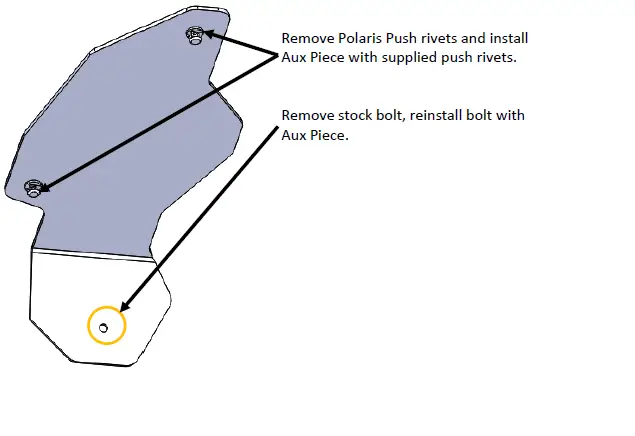

Aux Piece
You may need to hand bend this piece as it may relax during shipping.
Rear Fender Flare
To start, connect upper and lower rear fenders. Highlighted edges should line up.

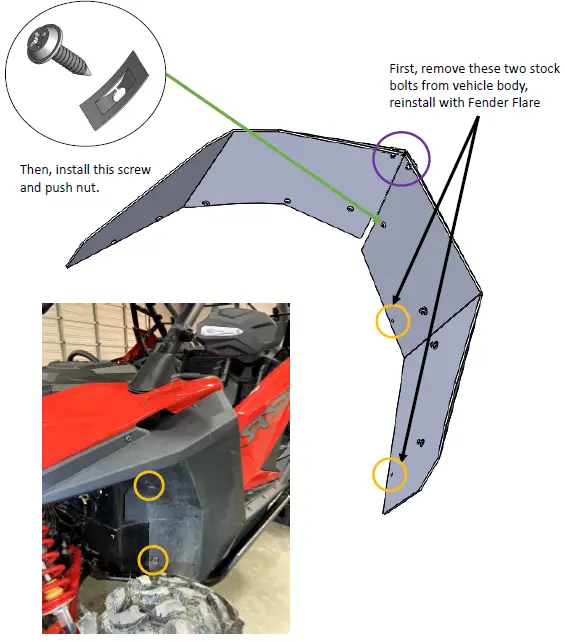

Front Fender Flare
