Quick Start
Leica DISTO™ X4

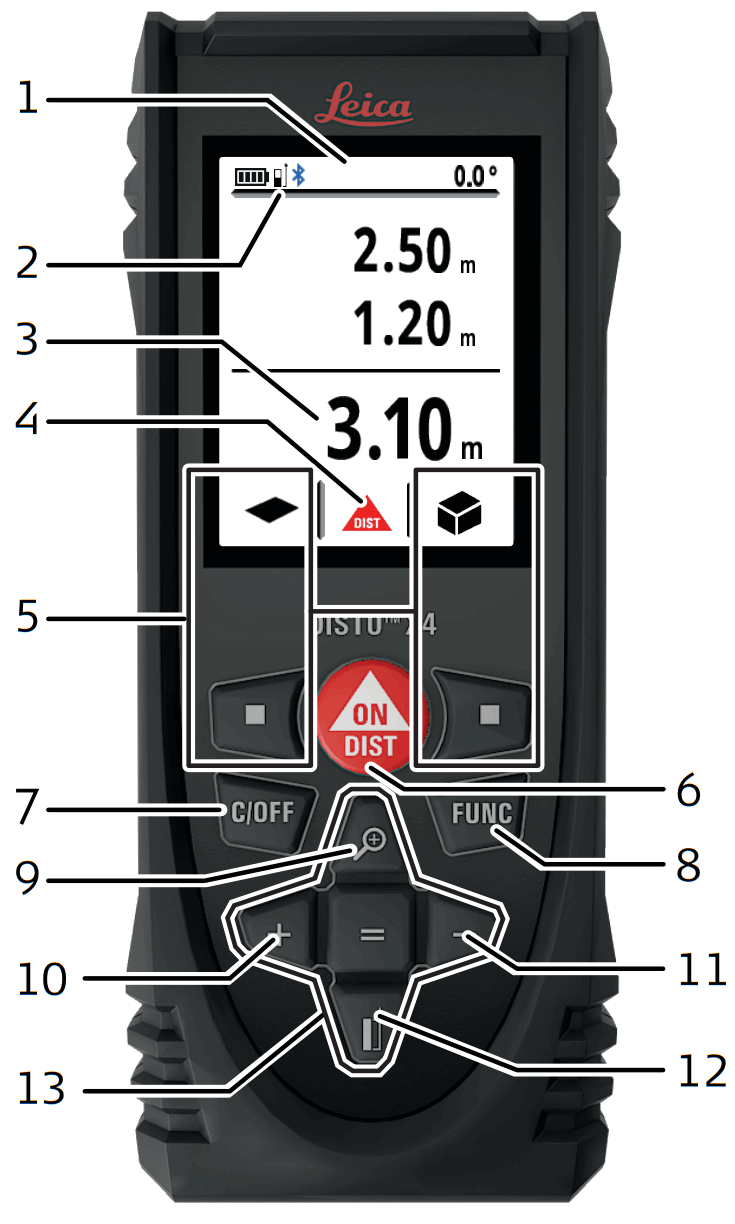

Disto X4 Laser Distance

- Status bar/level
- Reference
- Main line (result)
- Active function
- Selection keys linked to the symbol above
- ON/DIST
- Clear/OFF
- Function screen

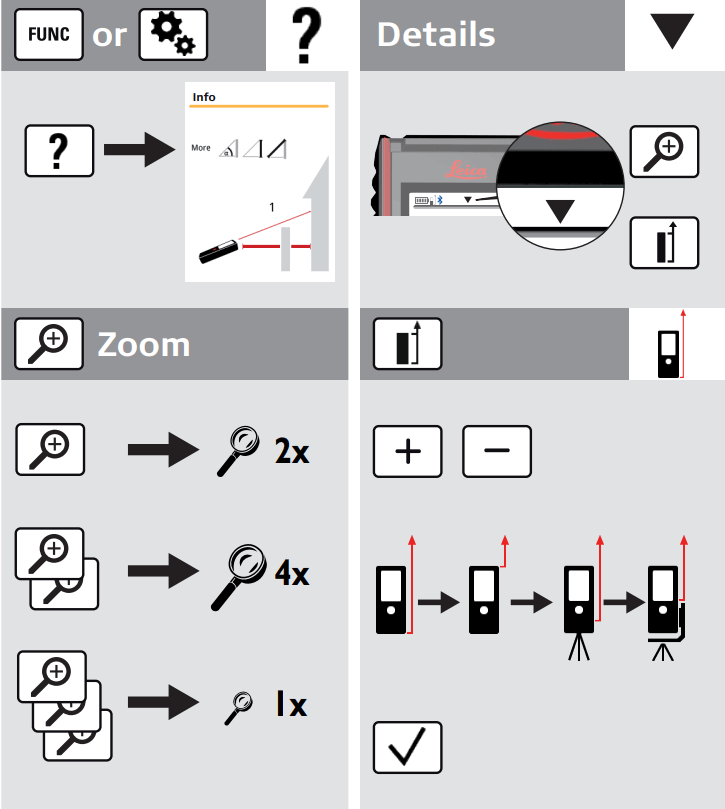

- Zoom
- Add
- Subtract
- Reference

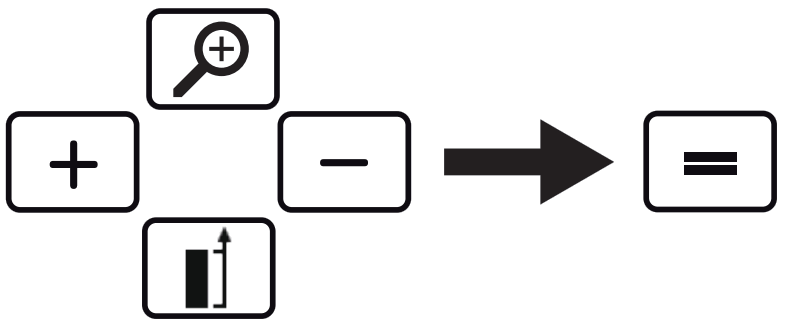

- Navigation
Unlock keypad![]()
Within 2 sec. |
Functions

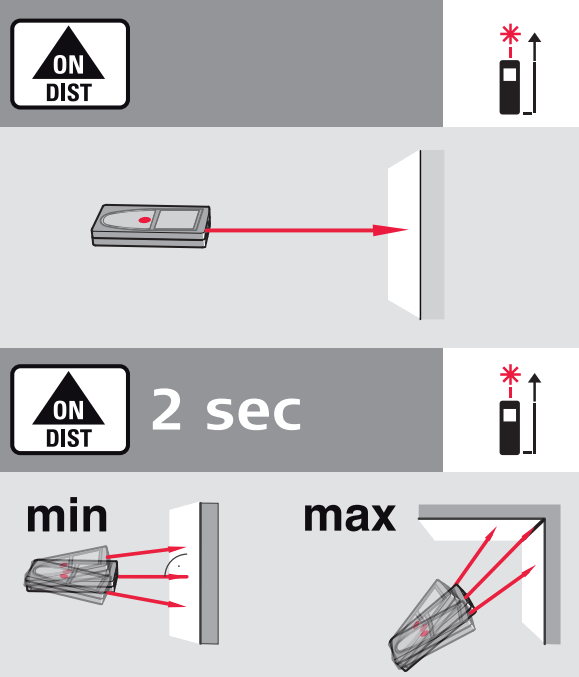

| Single distance measurement | |
| Area | |
| Volume | |
| Room angle | |
| Smart Horizontal Mode | |
| Level | |
| Pythagoras | |
| Stake out | |
| Timer | |
| Height tracking | |
| Memory | |
| Point to point measurement* | |
| Point to point measurement levelled* | |
| Smart area measurement* |
*Activated when connected to DST 360
Settings
![]()
| Tilt units | |
| Distance units | |
| Turning screen | |
| Beep | |
| Bluetooth® | |
| Bluetooth® settings | |
| Illumination | |
| Favourites | |
| Keypad lock | |
| Tilt calibration | |
| Information / Serial number | |
| Offset | |
| Calibration of DST 360* | |
| Reset |


![]() | ![]() |
http://support.lasers.leica-geosystems.com/disto/x4/user_manual
