Siretta Snyper-lte Plus Graphyte V2 Rf Detector User Guide

Siretta SNYPER-LTE Plus Graphyte V2 RF Detector

SNYPER-LTE+ / Spectrum v1 / v2 (EU/USA/AP)
Quick start guide

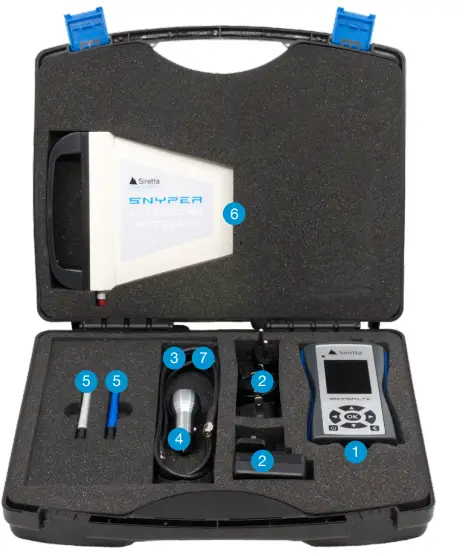

SNYPER-LTE+ / Spectrum Case Contents

1. SNYPER-LTE+ or SNYPER-LTE+ Spectrum
2. PSU with 4 Adapter Heads (Not included with the SNYPER-LTE+ Spectrum AP Variant)
3. 0.5M USB Cable
4. USB Car Charger (Not included with the SNYPER-LTE+ Spectrum AP Variant)
5. Omni-directional Antennas – General Purpose (Blue) and 2600MHz (Silver/Grey)*
6. LiveSCAN Directional Antenna  (Spectrum model only)
7. 1.5M Extension Cable for LiveSCAN Antenna  (Spectrum model only)

First step before use

For safety documents, please visit: https://www.siretta.com/safety/
*The General Purpose (Blue) antenna covers most frequencies and is commonly used.
**The (USA) and (AP) models do not survey the GSM band.
www.siretta.com
+44 (0)118 976 9000
Siretta Ltd, Basingstoke Road, Spencers Wood, Reading, Berkshire, RG7 1PW, UK
